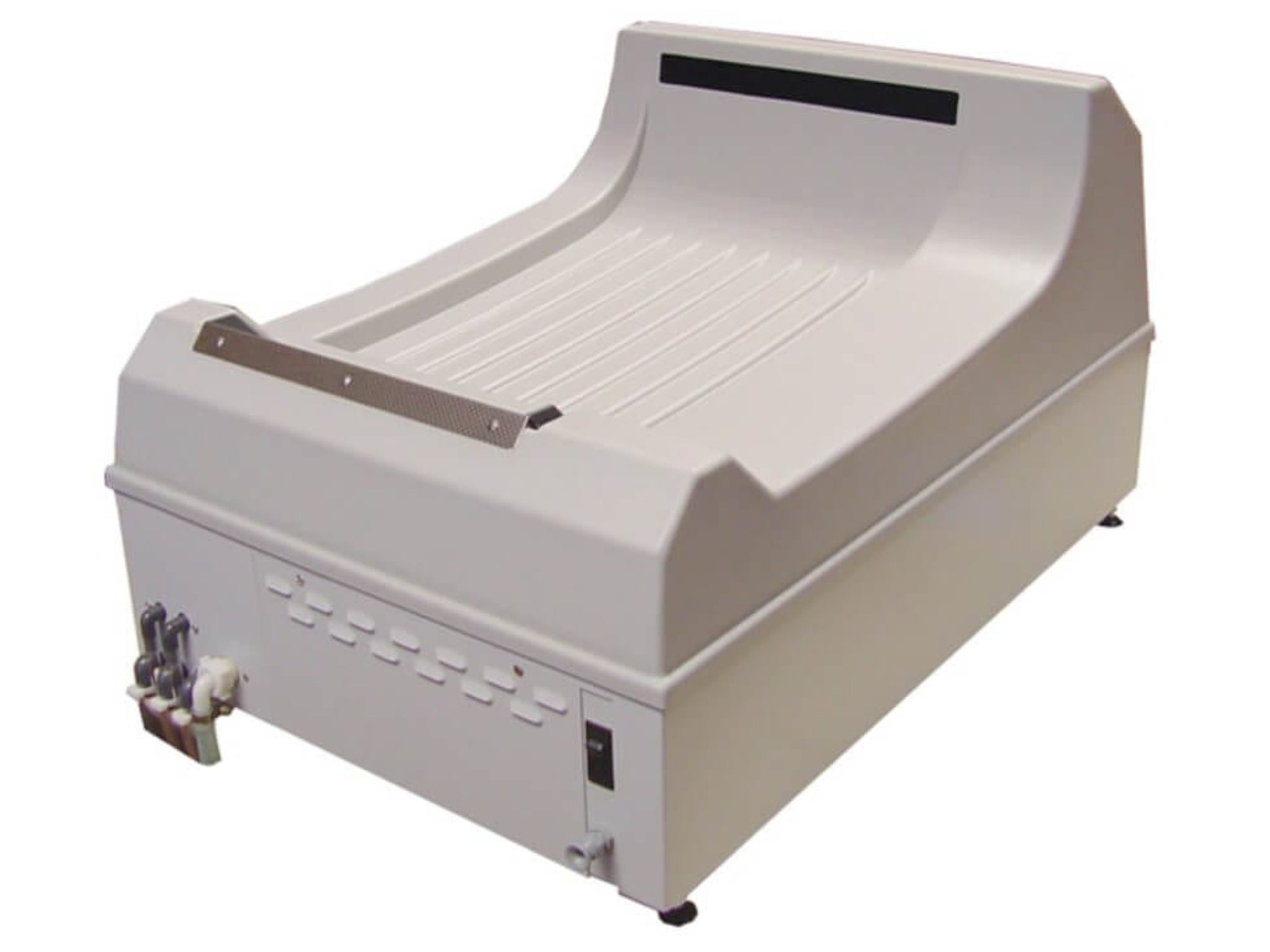

Mediphot 900E Wet X-Ray Processor

£7,795.00 GBP - £8,297.00 GBP

Excl VAT 20% - calculated at checkout

The Mediphot MP900E is a compact tabletop X‑ray film processor designed for low‑ to medium‑volume environments such as small hospitals, clinics, and veterinary practices. Built for reliability and consistency, it delivers fully automatic dry‑to‑dry film processing with precise temperature control and stable chemical performance. Its microprocessor‑controlled system ensures accurate, repeatable results while maintaining efficiency and ease of use.

Core Features

Compact, space‑efficient tabletop design
Fully automatic dry‑to‑dry processing
Low energy consumption
Wash‑water saving mode
Removable, water-rinseable crossover segments
Two 30 L replenishment storage tanks (Developer & Fixer)
Optical sensor bar for touch‑free film area measurement
Prepared for connection to an external exhaust system
Microprocessor‑controlled temperature regulation
Automatic Developer/Fixer tank cooling
Pre‑heated replenishment injection for chemical stability
CE‑certified to meet strict European health and safety standards

Technical Specifications

Maximum Film Width: 36 cm / 14 in
Minimum Film Length: 10 cm / 4 in
Tank Body Capacity: 2.3 L each (Developer, Fixer, Wash)
Developer Temperature Range: 18–43°C ± 0.2°C
Dryer Temperature: Automatic at 50°C
Replenishment: Film‑based, programmable for Developer & Fixer
Processing Capacity: 69 cm/min at 90‑second dry‑to‑dry cycle
Chemical Storage: 6.6‑gallon (25 L) tanks; optional 10‑gallon (38 L) tanks
Film & Chemistry Compatibility: Standard medical X‑ray film and chemistry for automatic processors

Film Processing Capacity (90‑Second Cycle)

10 × 12 in (24 × 30 cm): 129 films per hour
14 × 17 in (35 × 43 cm): 75 films per hour

Standard Accessories

Removable, water‑rinsed crossover segments
Two 30 L replenishment tanks (Developer & Fixer)
Small spare‑parts kit
CE marking

Optional Accessories

Cover lid for film feed tray
Open stand
Water supply panel
Cover for open stand
Rack drip tray

Minimum Installation Requirements

Power Supply

230V, 50/60 Hz
1.7 kW

Water Supply

R 3/4" connection
Maximum 15°C
3–6 bar pressure

Water Consumption

1.5 L/min when film is being processed

Minimum Darkroom Requirements

Electrical

115V, 50/60 Hz, 15A (110–120V operating range)
230V, 50/60 Hz, 10A (220–240V operating range)
Energy use: 1.4 kWh during processing, 0.12 kWh in standby
A dedicated electrical line is recommended
Multi‑outlet adapters or extension cords void the warranty

Water

Cold water only, 41–78°F (5–26°C)
¾" water connection, 29–145 psi (2–10 bar)
Minimum drain diameter: 2 in (5 cm), max 12 in (30.5 cm) above floor
Water consumption: 0.50 gal/min (1.9 L/min) during processing
No water use in standby
In‑line water filter is recommended
Drain piping must be cast iron or PVC (no copper)

Space

Dimensions: 30 in (77 cm) L × 23 in (59 cm) W × 16.5 in (42 cm) H
Clearance required on all sides for operation and servicing

The Mediphot MP900E delivers dependable, consistent film processing with low operating costs and a compact footprint - ideal for practices that need professional‑grade performance without the complexity of large‑scale systems.
