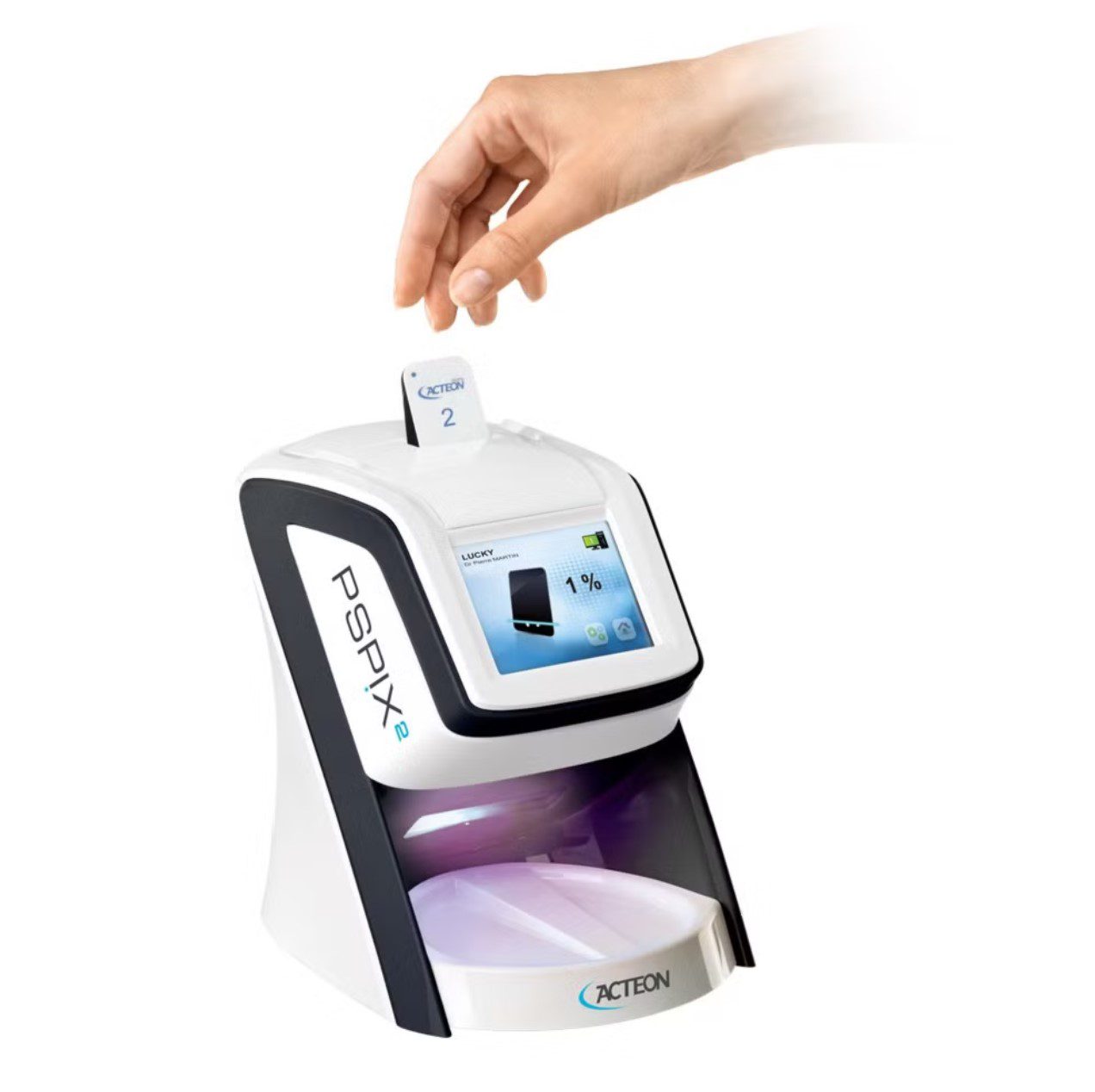

Acteon PSPIX 2 Phosphor Plate Image Scanner

Downloadable PDF here

£6,306.16 (excl. VAT)

Product you're enquiring about...*
First Name*
Last Name*
Business Name
Country*
This field is hidden when viewing the form
Territory*
Postcode*
Postal code
Email address*
Message
CAPTCHA
GDPR Compliance*
- By ticking this box I agree to allow Photon Surgical Systems Ltd to contact me regarding my enquiry, using the details I have submitted in this form.
Comments
This field is for validation purposes and should be left unchanged.

SKU: N-XRA-50-10-001

Product Description

With its revolutionary size, design and user-friendliness the new PSPIX is so impressive that every practice will want to buy one!

Features

Exceptionally high quality, sharp images appear within seconds
Three times smaller than any other image plate systems
Intra-oral plates available in sizes 0-4 which can be used hundreds of times
Easy to use touch-screen operation
Multi-user software allows up to 10 workstations to use it simultaneously
Exclusive click and scan concept that is intuitive
The only scanner on the market with optional removable parts that can be sterilised in an autoclave to give maximum protection
Scanning time (size 2): 2.8s

The “Click & Scan” concept of PSPIX 2

If you use the PSPIX 2 in the multi-user version, choose in advance from the large colour touch screen the desired workstation.
Then, the imaging plate is simply into put the protective cover and inserted into the slot – the rest of the operation is fully automatic!
The scan is automatically optimised and displayed on the computer screen after a few seconds (8-10 seconds depending on the size of the film) then the imaging plate is directly deleted and output.

Specification

System
- Theoretical resolution 20 lp/mm
- Scan Time (fast mode) 1.6s – 7s
- Scan Time (high definition mode) 2.1s – 3.6s
- Connection Ethernet RJ-45
- Dimensions L. 154 x D. 204 x H. 193mm
- Weight 2.6kg
- Operating voltage 100 240V, 50/60Hz
- Warranty 2 years
Imaging Plates
- Dimensions IP Size 0 22 x 35mm
- Dimensions IP Size 1 24 x 40mm
- Dimensions IP Size 2 31 x 41mm
- Dimensions IP Size 3 27 x 54mm
- Dimensions IP Size 4 (2 x size3) 52 x 54mm

PSPIX Human Brochure

PSPIX Veterinary Brochure
