Reconditioned/serviced/calibrated by a Fully Trained Medical GE Engineer. Warranty 90 days on all Pre-owned items
Product Description

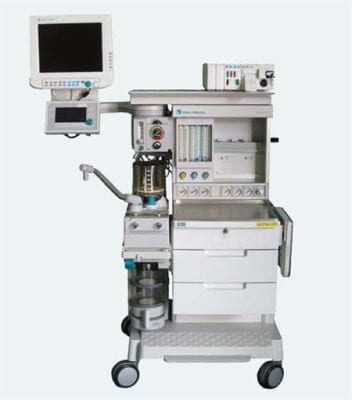

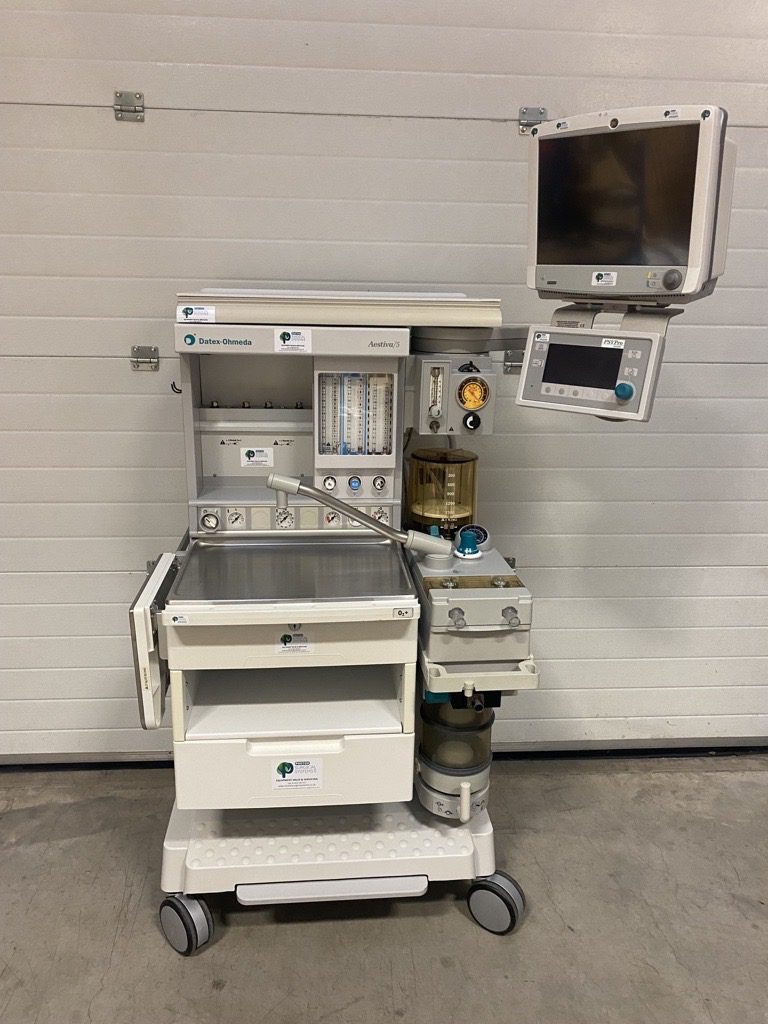

GE Datex Ohmeda Aestiva 5 Anaesthesia Machine fitted with a 7900 ‘ Smartvent’ ventilator. The Aestiva/5-7900 systems are equipped with Datex-Ohmeda/GE S/5 Monitoring, which can be interfaced with 15″ flat screen displays mounted on the anaesthetic machine shelf top. The machine is straight forward to use, with the SmartVent’s capabilities giving a higher level of control, whilst reducing agent consumption and saving money.
The Aestiva/5-7900 system comes with either 4.5 or 4.8 software, providing Volume & Pressure. Each machine is fitted with both O2, N2O, and Air medical pipeline hoses and cylinder backup with twin vaporiser manifold.
The GE Datex Ohmeda Aestiva/5 with SmartVent offers some of the capabilities of a respiratory ventilator but saves the cost of bringing a separate ventilator into the operating room. The advanced ventilation is provided by the 7900 ‘Smartvent,’ its sophisticated ventilation capabilities support the needs of a broad patient range, offering low and minimal flow anaesthesia, reducing agent consumption to save on anaesthetic agent costs. (Vaporisers are not included)

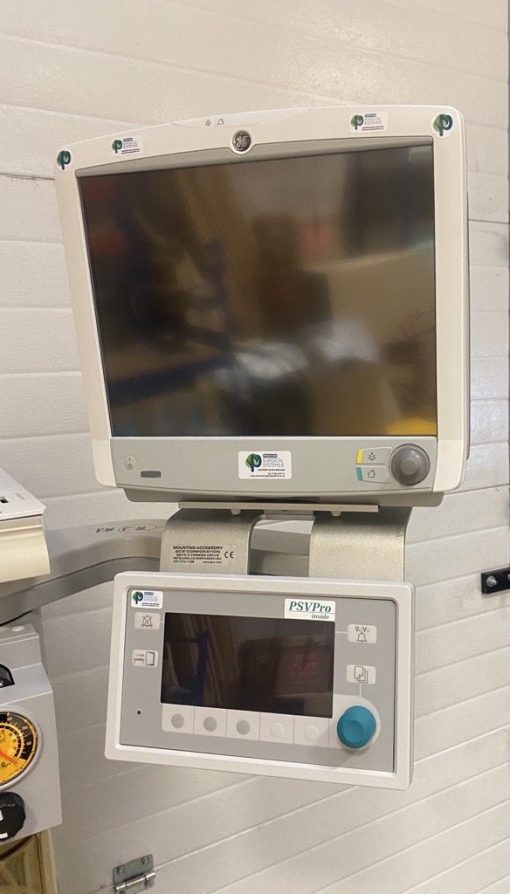

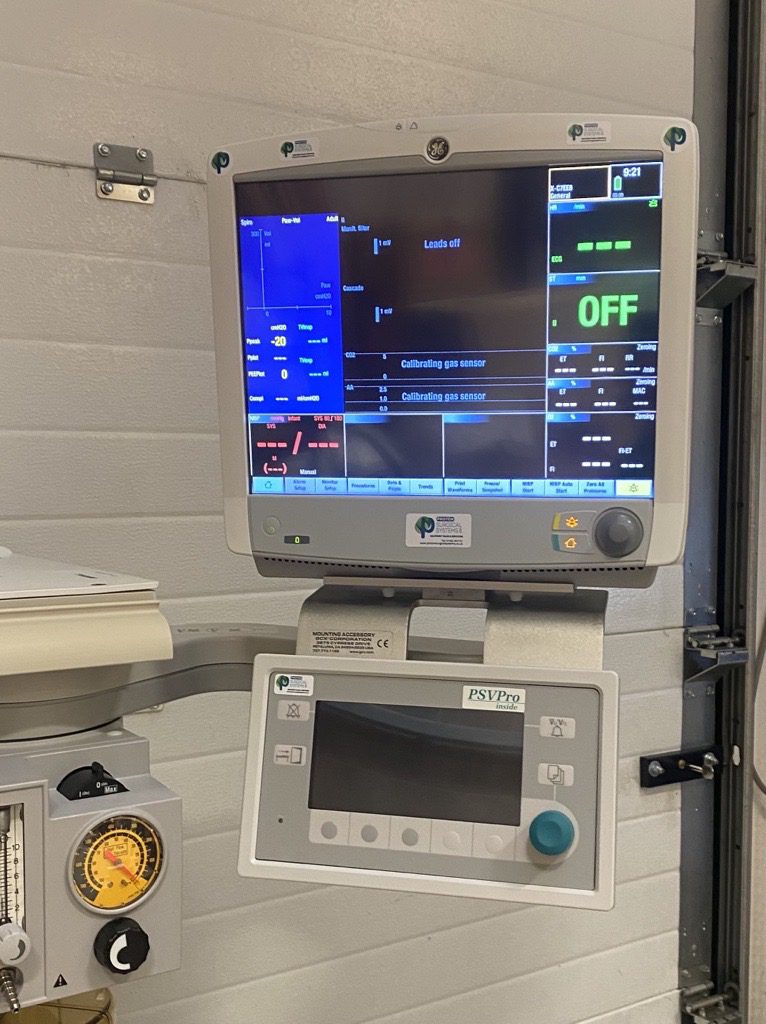

The optional S/5 monitoring fitted to the Aestiva’s can be either 15″ Flat Screens or S/5 Compact Monitors. Each monitor comes with F-CU8 Module frame for housing a multi-parameter and a gas module providing the following parameters:- CO2, N2O and O2 measurement, five agent monitoring and agent identification, ECG, NIBP, Invasive Pressures, Temperature, SPO2 and Respiration.
The complete Aestiva/5-7900 and optional S/5 monitoring have been reconditioned/serviced/calibrated by a Fully Trained Medical Engineer.
Do you currently have active scavenging facilities? Do you have piped medical gases? Be sure to speak to one of our advisors today before ordering.
Optional Extra: Full set of patient leads
Note: Machines are available with the ventilator on the right-hand side or left-hand side unless this is specified at the time of placing order we will automatically allocate stock without asking.
What is the difference between 4.8 and 4.8 PSV PRO?
- 4.8 does not give you the same range of ventilator modes. It only gives you ‘volume and pressure modes of ventilation.
- 4.8 PSVPro gives you a larger range of ventilator modes :- Volume, Pressure, SIMV and PSVPro modes of ventilation.
Product Features
- Superior ventilation: 7900 SmartVent™
- Volume Mode, pressure
- Volume Mode, Pressure Control Mode, Pressure Support (PSVPro), Synchronized Intermittent Mandatory Ventilation (SIMV), electronic PEEP
- Tidal volume compensation
- One motion from mechanical to manual mode
- Two key presses to total standby: end case
- Cardiac bypass case mode
- Open systems architecture
- Lower overall height
- User configurable drawers/shelving
- Innovative patient breathing system
- Eight machine hoses/cables integrated
- “No tools” disassembly of components
- Autoclavable and latex-free • Responsive location of the common gas outlet
- Improved low flow/reduced life-cycle costs
- Fresh gas flow compensation—automatically
- Smooth, faster acting fresh gas flow control
- Minimum O2 flow of 50 mL
- Dual airflow tube for low flow
Monitors
The CARESCAPE Patient Monitor B650 combines the features and functionality you need to provide exceptional care. Fast access to accurate clinical data:
- Vital patient details all in one place for a streamlined, efficient workflow
- Integrated connection to MUSE® ECG management system provides instant access to reports and expert cardiology diagnosis
- Clinically excellent algorithms deliver a wide range of measurements, based on heritage from Marquette Electronics and Datex-Ohmeda.
- Wired or wireless network connectivity allows for alarm sharing, central station monitoring and data capture to electronic medical record systems
- Critical information, including spirometry with gas exchange, measured airway pressures, volumes, and calculated values at the patient’s airway deliver reliable and vital measurements to help assess patient readiness for ventilator weaning
- SpO2 and CO2 parameters provide data from oxygenation and ventilation calculations
- Preconfigured monitor profiles and screen layouts allow you to assess data quickly when consulting or considering next steps
- Unity Network™ Interface Device, when combined with the CARESCAPE Monitor B650/B850, allows for ventilator data integration or other external devices
The comprehensive clinical intelligence solution
The Carescape B650 Compact modular Patient Monitor is available with department-specific software packages for Anesthesia, PACU, Cardiology, ICU and Neonatal/Pediatric Care.
The CARESCAPE Monitor B650 helps you access relevant clinical information, when and where you need it. Its flexible, scalable technology is designed to acquire, store and retrieve critical data more efficiently and securely, across your entire enterprise.
Easy to use and service
- The user interface supports touch screen and keyboard use, allowing fast access to advanced features
- Interface design is consistent with other devices of the GE monitoring portfolio, making it easier to transition between monitors
- InSite™ ExC enables remote diagnostics, predictive maintenance and seamless upgrades of the CARESCAPE Monitor B650 to help minimize downtime
- Pages and Profiles feature allows you to reconfigure quickly for patient acuity, type, clinician preference, care requirements or clinical status. Perfect for Veterinary practice
Software:Version 4.8 PSV Pro
Monitoring:Flat Screen, B650, Not Required
Multi-parameter Module:E-PRESTN, E-PSMP, E-PDM, Not Required
Gas Module:E-CAiOV, E-CAiO, Not Required
At PSS we pride ourselves on our customer service and are happy to offer as much help as needed regardless of the query size.
We have an ethos of providing the best quality products at affordable prices and fully supporting them with our own team of highly skilled and experienced technicians and engineers.
Our Price Promise:
We aim to offer the most competitive price, but if you can buy the same item elsewhere for a better price let us know and we will try to match or better the price.
Demos/Loans:
Picking equipment from a website can be quite a challenge. We can visit your practice, so you can sample our products and discuss your needs with one of our team.
How To Order:
You don’t have to pay now. Many of our customers have accounts open with us as they like to be invoiced later, instead of paying now.
You can order:
Online: You can order online and select the invoicing option that suits you
Email: info@photonsurgicalsystems.co.uk
Phone: 01452 347101
Backorders:
We keep most items in stock and will aim to despatch the next day to you. Pre-owned items will be serviced and checked prior to being shipped as quickly as we can to you. However, special-order items / made to order items may take up to 4 weeks. Once an order is placed a member of our team will be in contact to keep you informed of estimated delivery dates.
