Product Description

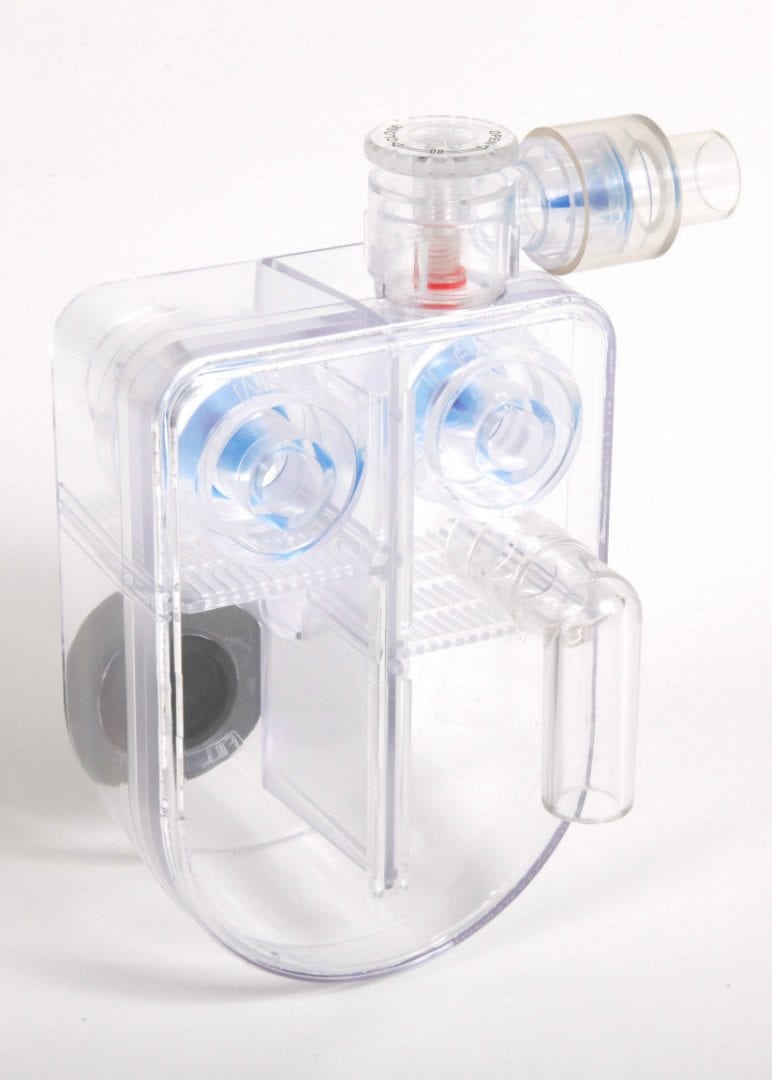

• Iso-Miser is the rationally designed replacement for the circular Polycarbonate CO2 absorber, generally known as the ‘Hamster Wheel’, which had many failings, the worst of which was the need for ‘extenders’ or ‘stand-off’ fittings to enable it to be connected to the fresh-gas outlet.
• Small animal circle absorber for patients 10kg and above
• On the Iso-Miser, the fresh gas inlet is a 22mm Female taper immediately behind the inspiratory port, in the top left-hand corner of the absorber. This allows it to be mounted directly onto most modern anaesthetic machines.
• Large directional valves offer minimal resistance to gas flow.
• A mushroom valve in the scavenging port is designed to relieve at 2 Cm H2O, which is near ideal back-pressure to lightly extend the reservoir bag, without having to ‘fiddle’ with the airway pressure limiting valve.

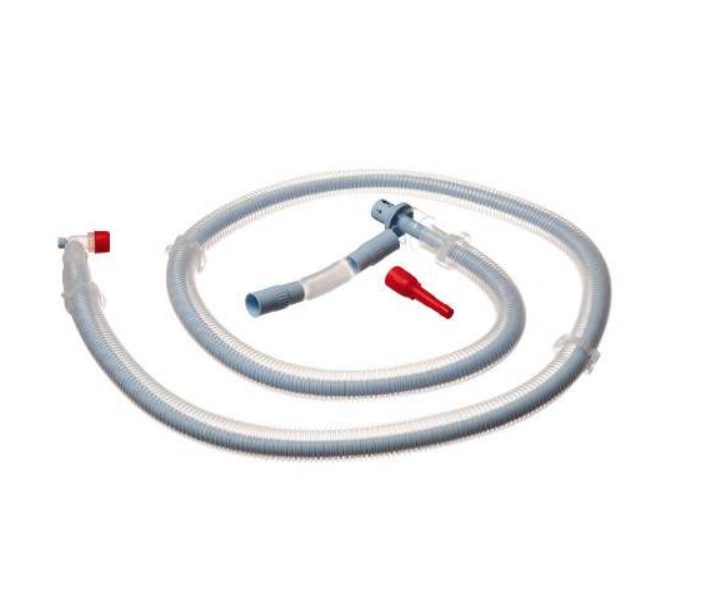

• DRAEGER COAXIAL Breathing circuit included as standard. A unique co-axial circuit for use with Circle-Absorbers. All the advantages of the BAINS circuit, with the economy of the CIRCLE-ABSORBER. Very low resistance to flow. Expired gases in outer tube heat up the incoming gases in the inner tube, improving humidity and conserving body heat. Neat, streamlined, tube within tube design reduces clutter at patient end of circuit.1.5 Metre long. Ideal for use with Circle Absorbers, including ISOMISER.
• What’s included:
  • Draeger CoAxial patient breathing tubing (or 2000000 22mm Flextube breathing system, ≥1.6m upon request at time of ordering)
  • 2 Litre reservoir bag
  • 30mm to 22mm scavenging connector

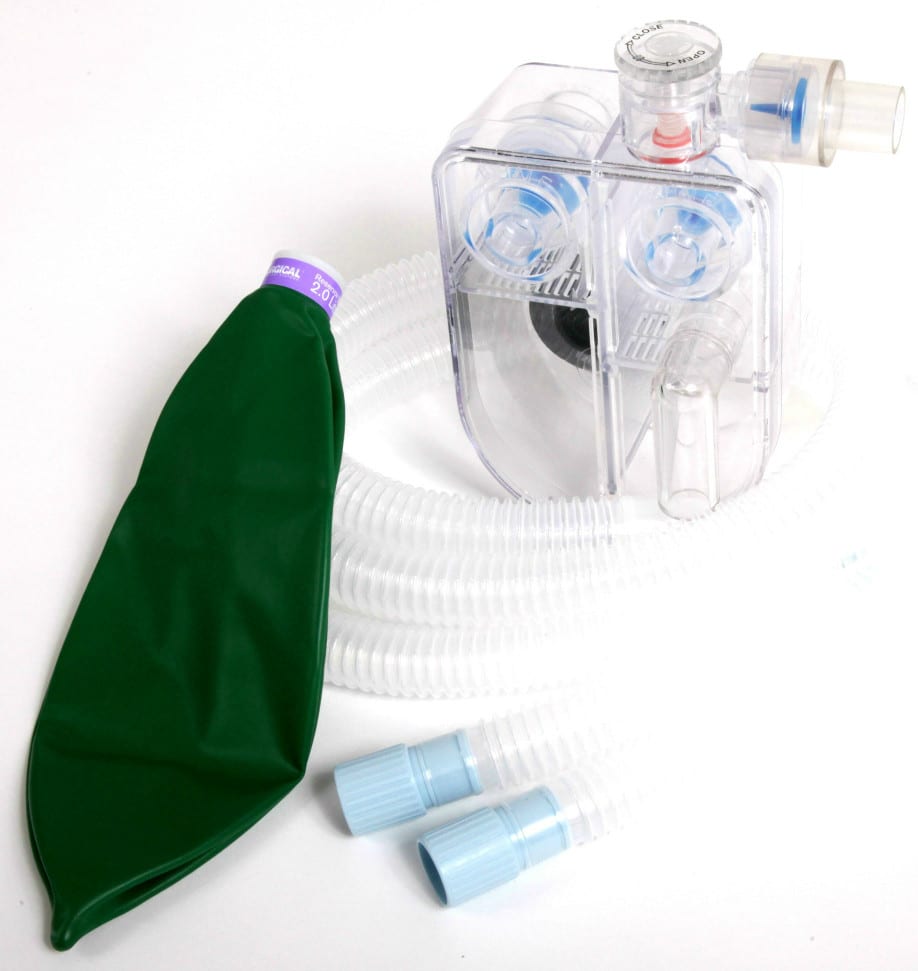

Note. Main images shows 2000000 tubing
