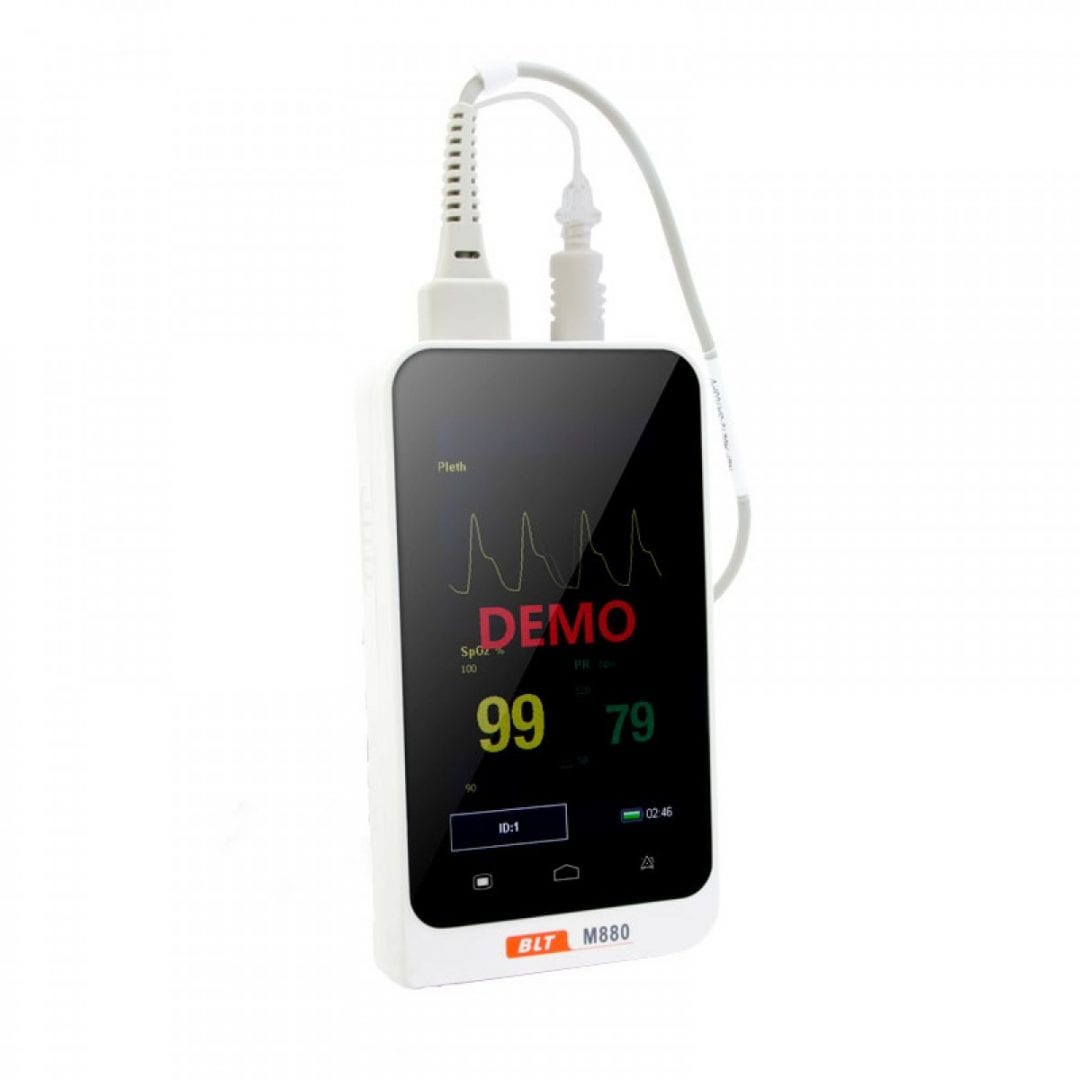

M880 Handheld Capnograph & Pulse Ox
A lightweight user-friendly handheld 4.3″ high resolution monitor designed for continuous monitoring or spot-checking of CO2 and SPO2 signals in patients, with an autorotation touchscreen and a battery that can last for up to 18 hours.
Original price was: £1,497.38.£1,200.00Current price is: £1,200.00. (excl. VAT)
Product Description
The M880 is an ultra-lightweight, compact handheld monitor featuring a TFT colour screen displaying EtC02/C02 and respiration. It also includes a built-in temperature pressure compensation system and zero re-adjustment system. The M880 is sold with a large capacity 10-hour lithium battery. It is sidestream technology and requires a gas flow rate of 6080ml per minute. A one-year warranty is provided for the PSS M880 main unit and 6 months on accessories.
Key Features:
- Compact, lightweight hand-held design
- 4.3″ TFT Colour screen displaying EtC02/ FiC02 and Respiration rate.
- EtC02 Infra-red gas analysis technology
- Sample Flow Rate: User adjustable, 50 ml/min, 100ml/min, 150ml/min, 200ml/min, 250 ml/min
- Built-in temperature, pressure compensation system and zero readjustment system
- A degree of protection against liquid, IPX2 waterproof
- A specially designed water filter continues to work in a heavily humid environment.
- Pump flux configurable for horse, dog or cat
- Selectable unit of measurement (KPA, mmHg or %)
- Visual & Audio Alarms for exceeding limits and apnea; pitch tone
- 24 Hours trend diagram, which is stored even after a power-off
- Large data storage capacity – over 5000 groups
- Large Capacity Lithium battery (approximately 10 hours life)
- The data saved in the M880 can be transferred to computers through the USB cable
Includes:
- CO2 Sampling Tube
- User Manual
- Power Adaptor
- Filter (last approx 120 hrs)
Technical Specifications:
| Dimensions: | 155mm (H) x 71mm (w) x 40mm(D) |
| Weight: | 0.5kg |
| Measurement range: | 0.0% to 13.1% (0mmHg to 99.6 mmHg) |
| Resolution: | 0.1% or 1mmHG |
| Unit of measurement: | %, mmHg,kPa |
| Accuracy: | 0% to 4./9%, +/-0.3% (+/-2.0 mmHg) |
| Measurement range of awRR: | 3 rpm to 150 rpm |
| Rise time: | About 100ms (when using 1.5m sampling tube and adult dehydration flask with 120ml/min flow rate) |
| CO2 Response Time: | <4s (when using 1.5m sampling tube and adult dehydration flask with 120ml/ flow rate) |
| Sample Flow Rate: | User adjustable, 50 ml/min, 100ml/min, 150ml/min, 200ml/min, 250 ml/min |
Patients under 1kg
The CO2 on our M880 is sidestream technology, requiring a gas flow rate of 60~80ml per minute. Most birds and small furries under 1kg don’t breathe out that much gas per minute. For these tiny animals, mainstream EtCO2 should be used. A mainstream capnograph is only available on our larger multi-parameter monitors – don’t hesitate to get in touch with us to find out more.
