SHOR-LINE Stainless Steel Modular Kennels
We can design, make, and fit kennels custom-made for your space, including oxygen therapy doors. Contact us today to find out more!
£3,495.00 – £5,305.00 (excl. VAT)
Shor-Line stainless steel veterinary Kennels are fabricated using their exclusive 2-piece unitised construction process, which minimizes the number of welded seams. Fewer welds mean stronger and longer-lasting kennels.
Shor-Line veterinary Kennels are constructed from the highest grade type 304 stainless steel material. Even the frame, trim hardware, screws and platforms are made of stainless steel. Shor-Line Kennels are modular. This means each kennel is manufactured as an individual unit, engineered for fit and finish to combine with others into one structural product.
They look custom-built when you put them together, especially for your kennel area. Installation is quick and easy. All stainless steel hardware (trim strips, trim plates and screws) attach to the kennels for a finished look. The kennels have a front flange that overlaps the lower kennel or base platform, covering all horizontal joints.
With your kennel purchase, you may order a Mobile or Stationary Stainless Steel Platform from Shor-Line to support the kennel assembly. Note: When planning space requirements, allow an additional 3mm width for every two side-by-side kennels.

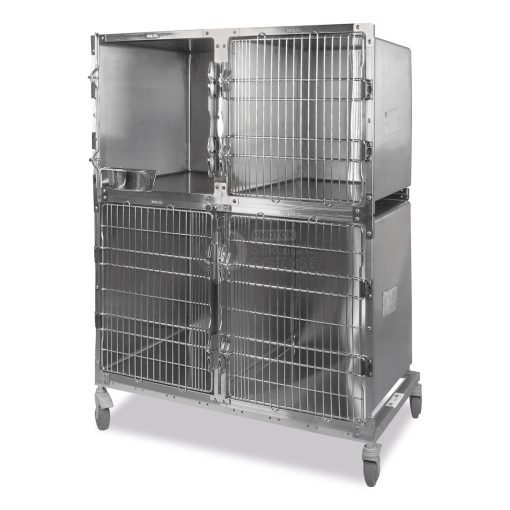

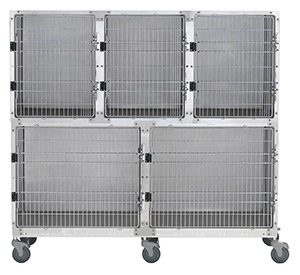

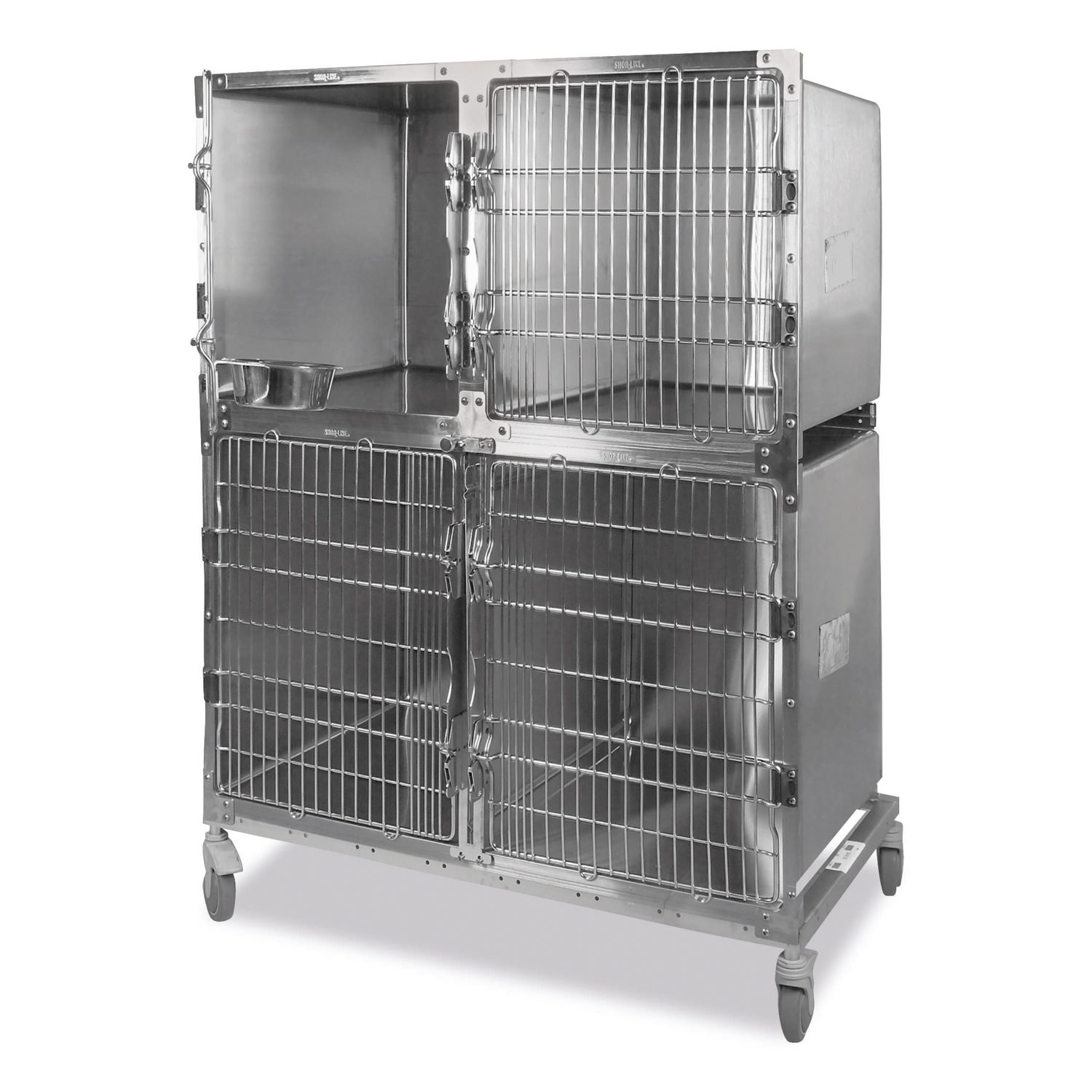

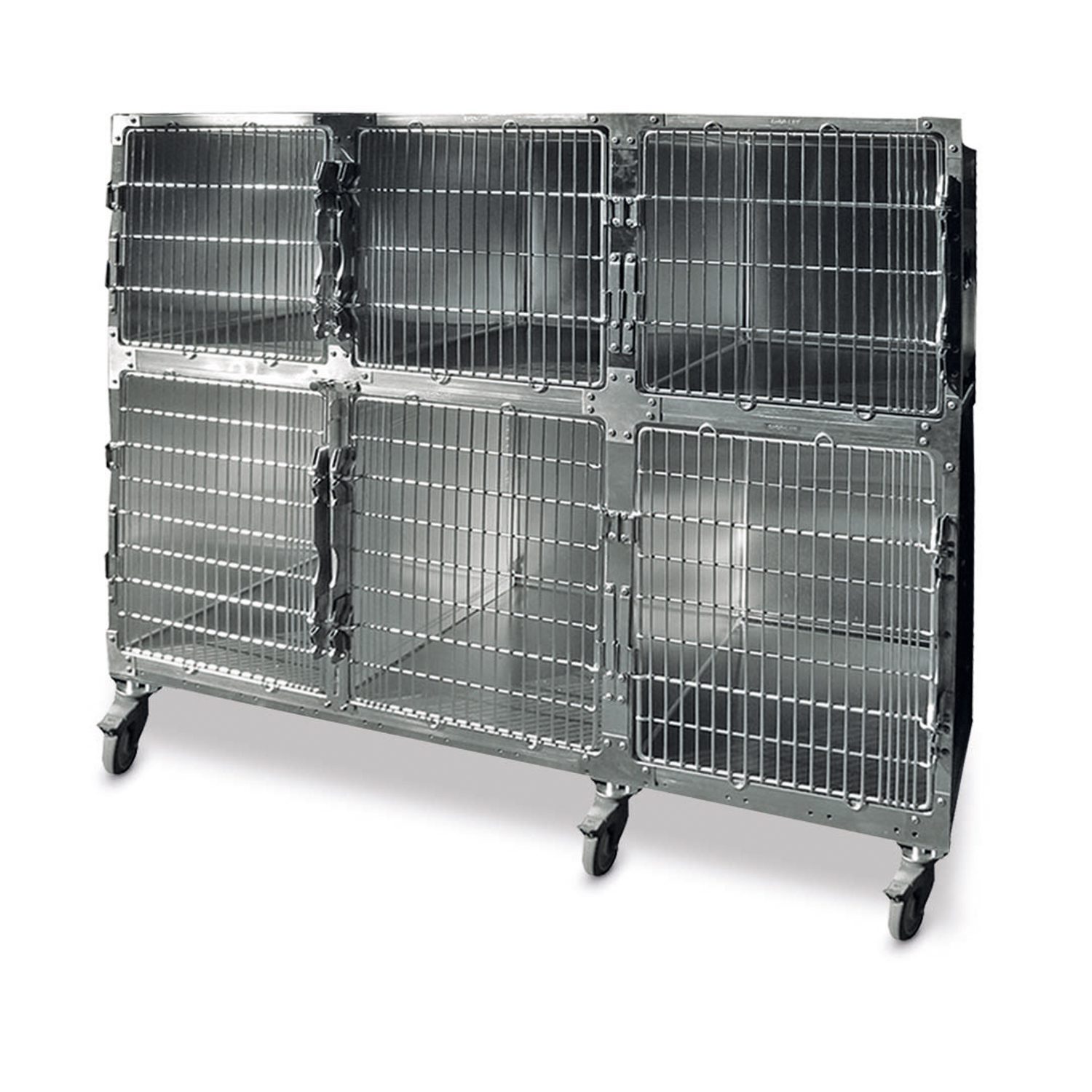

We can provide different widths and height kennels to make banks.
Our most popular service is the complete bespoke package – custom designs for your space, visual previews, delivery & installation
1. Hardware
All Trim Plates and Strips are made from solid stainless steel, with rounded corners and no sharp edges or points.
2. Patented Latch
The latch is designed to be durable, secure and quiet. Acetal bushings provide smooth operation and sound-dampening qualities. The concave latch bar design lets the kennel door open with the forearm when handling sedated or awkward animals.
3. Sound Deadening Pads
New sound and vibration absorbing technology, which comes standard on all Shor-Line kennels.

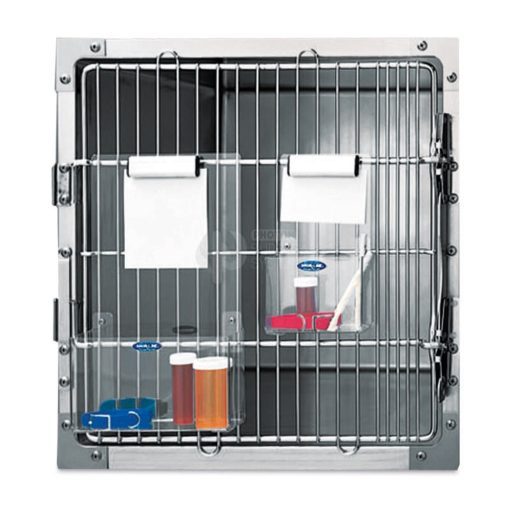

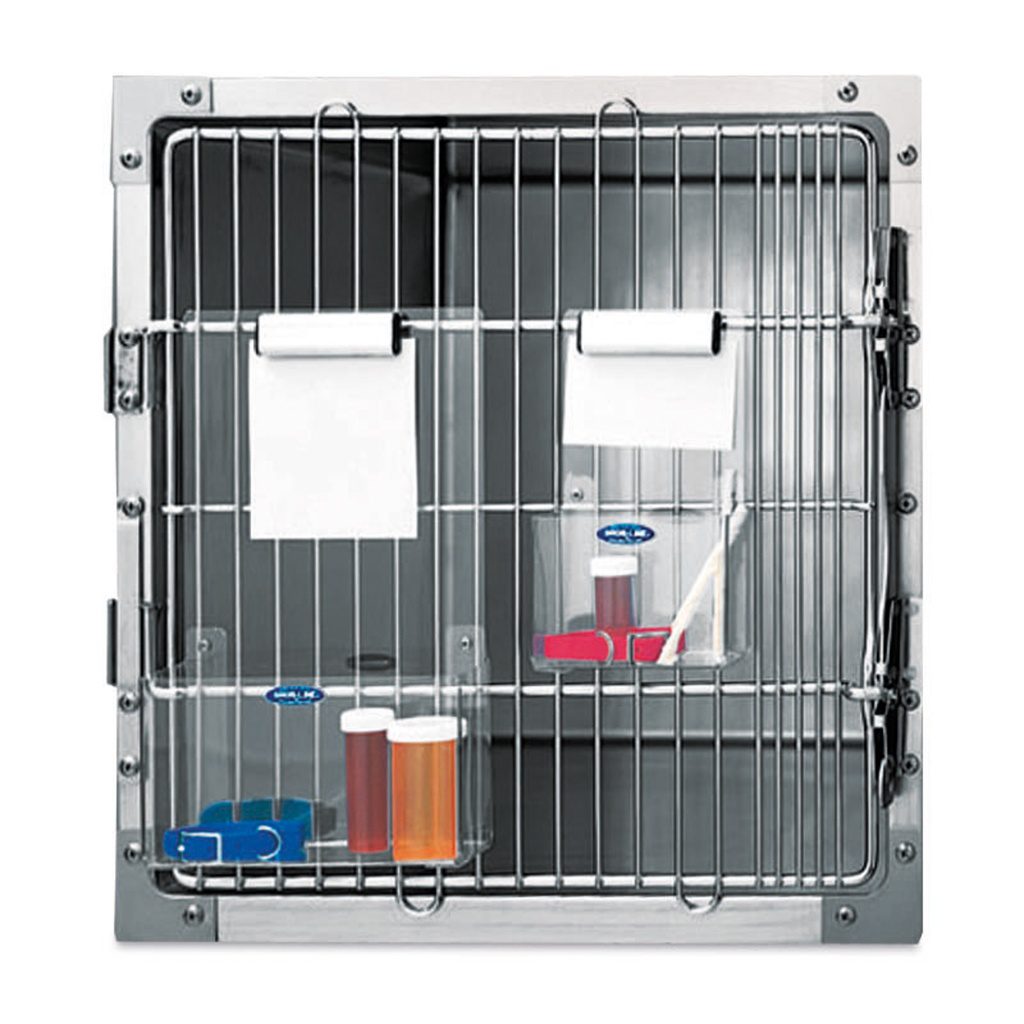

4. Kennel Door
The one-piece frame and wrap-around hinge/latch bars are formed from 9.5mm diameter solid stainless steel rods. All additional horizontal rods are 6mm in diameter, and all vertical rods are 4.8mm in diameter. Every intersection of horizontal and vertical rods is welded, providing incredible strength.
5. Fully Rounded Corners and Fluid Retaining Lip
There are no 90 corners to trap germs and debris. A smooth, rounded cove transitions the kennel’s back and all internal sides. A slightly raised, fluid-retaining lip prevents drainage out of the front of the kennel.
6. Stainless Steel Frame
All frame members are made from heavy-duty stainless steel to provide you with many years of solid structural support from your kennel assemblies.

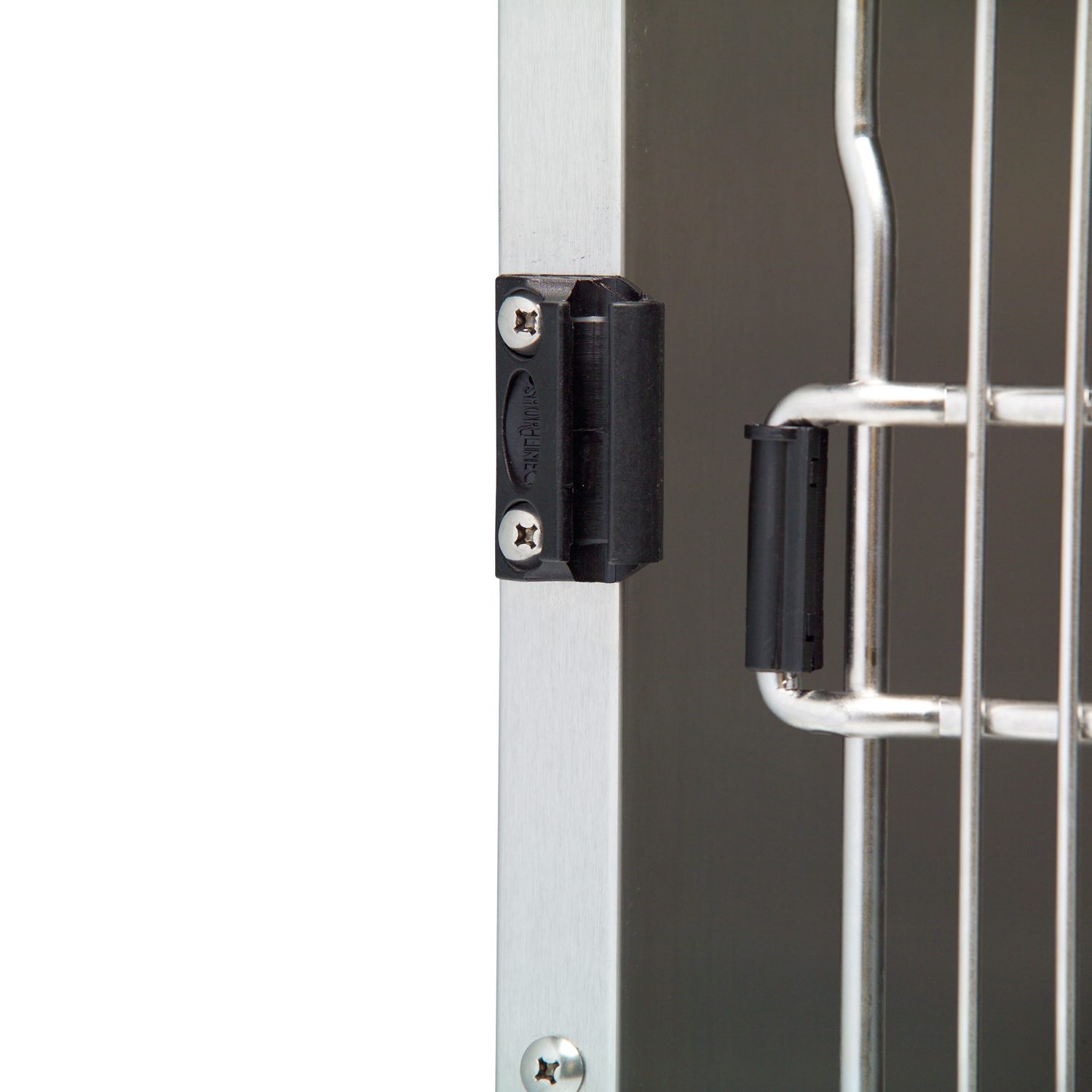

7. Hinge Design
Our hinge has been designed and developed for strength and utility. The hinge is constructed of 14 gauge stainless steel that is encapsulated by an injection moulded, fibreglass-reinforced thermoplastic polymer. The snap-together bushing on the door frame is also moulded from thermoplastic polymer with permanent, self-lubricating properties, resulting in a silky smooth and silent swing. The new hinge design also allows for the quick and easy door removal for cleaning and reattachment without tools. Our doors, latches and hinges are completely transposable, which allows you to change your kennel from a right latch to a left-hand latch, or vice versa, at any time.

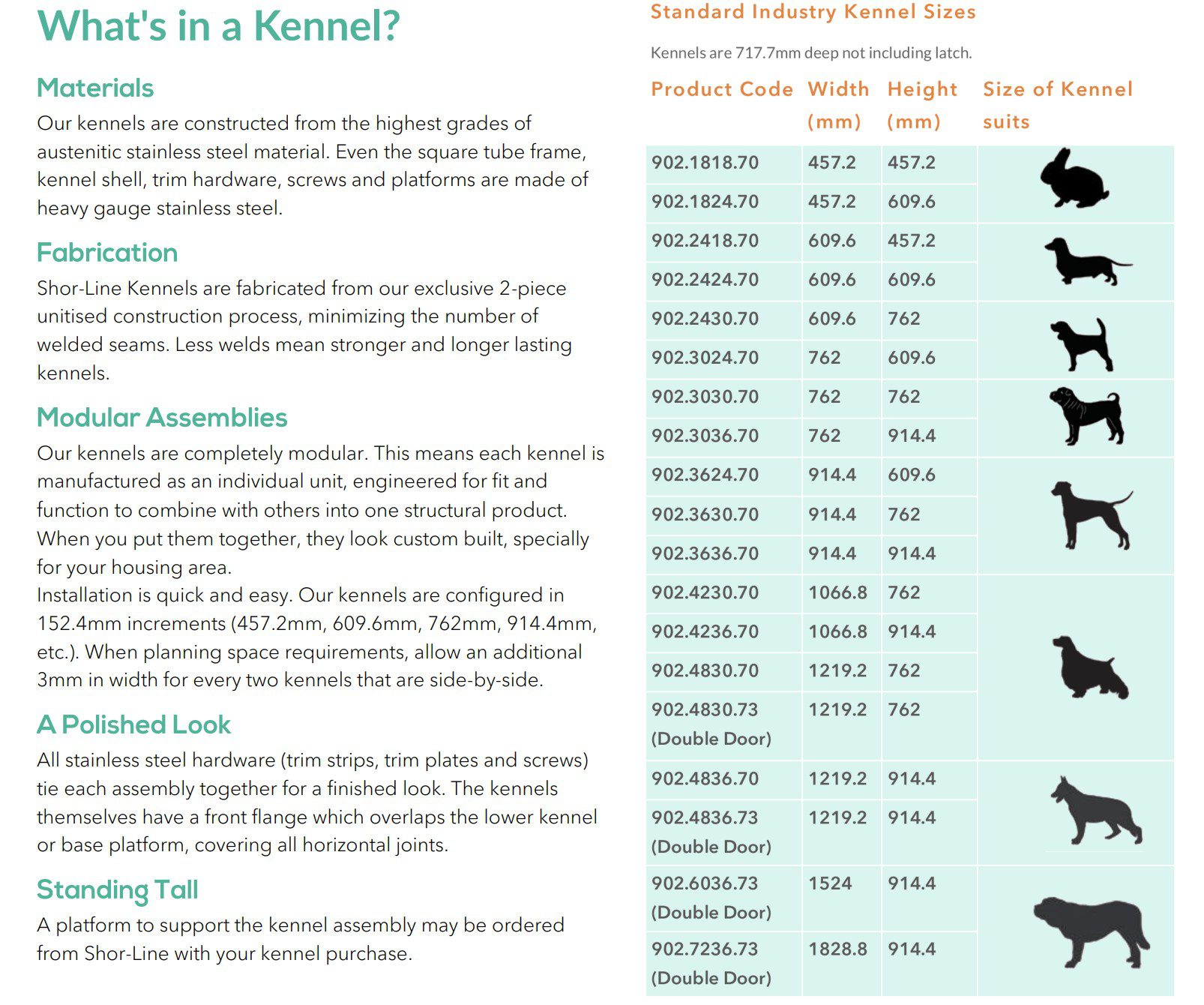

Options:
902.1818.70 Kennel : Width 457.2 mm x Height 457.2 mm x Depth 717.6 mm £
902.1824.70 Kennel : Width 457.2 mm x Height 609.6 mm x Depth 717.6 mm £
902.2418.70 Kennel : Width 609.6 mm x Height 457.2 mm x Depth 717.6 mm £
902.2424.70 Kennel : Width 609.6 mm x Height 609.6 mm x Depth 717.6 mm £
902.2430.70 Kennel : Width 609.6 mm x Height 762.0 mm x Depth 717.6 mm £
902.2436.70 Kennel : Width 609.6 mm x Height 914.4 mm x Depth 717.6 mm £
902.3024.70 Kennel : Width 762.0 mm x Height 609.6 mm x Depth 717.6 mm £
902.3030.70 Kennel : Width 762.0 mm x Height 762.0 mm x Depth 717.6 mm £
902.3036.70 Kennel : Width 762.0 mm x Height 914.4 mm x Depth 717.6 mm £
902.3624.70 Kennel : Width 914.4 mm x Height 609.6 mm x Depth 717.6 mm £
902.3630.70 Kennel : Width 914.4 mm x Height 762.0 mm x Depth 717.6 mm £
902.3636.70 Kennel : Width 914.4 mm x Height 914.4 mm x Depth 717.6 mm £
902.4230.70 Kennel : Width 1066.0 mm x Height 762.0 mm x Depth 717.6 mm £
902.4830.73 Kennel : Width 1219.2 mm x Height 762.0 mm x Depth 717.6 mm with Double Door £
902.4836.73 Kennel : Width 1219.2 mm x Height 914.4 mm x Depth 717.6 mm with Double Door £
902.6036.73 Kennel : Width 1524.0 mm x Height 914.4 mm x Depth 717.6 mm with Double Door £
902.7236.73 Kennel : Width 1828.8 mm x Height 914.4 mm x Depth 717.6 mm with Double Door £
902.3630.20 Stainless Steel Cat Suite 914.4mm x 762mm £
902.4830.22 Stainless Steel Cat Suite 1219.2mm x 762mm £
902.0103.24 Stainless Steel Double Cat Suite, Mobile Unit £
Shipping prices will be quoted via a member of our team.
At PSS we pride ourselves on our customer service and are happy to offer as much help as needed regardless of the query size.
We have an ethos of providing the best quality products at affordable prices and fully supporting them with our own team of highly skilled and experienced technicians and engineers.
Our Price Promise:
We aim to offer the most competitive price, but if you can buy the same item elsewhere for a better price let us know and we will try to match or better the price.
Demos/Loans:
Picking equipment from a website can be quite a challenge. We can visit your practice, so you can sample our products and discuss your needs with one of our team.
How To Order:
You don’t have to pay now. Many of our customers have accounts open with us as they like to be invoiced later, instead of paying now.
You can order:
Online: You can order online and select the invoicing option that suits you
Email: info@photonsurgicalsystems.co.uk
Phone: 01452 347101
Backorders:
We keep most items in stock and will aim to despatch the next day to you. Pre-owned items will be serviced and checked prior to being shipped as quickly as we can to you. However, special-order items / made to order items may take up to 4 weeks. Once an order is placed a member of our team will be in contact to keep you informed of estimated delivery dates.
