Product Features
- Compact design – A large and colourful LCD display whilst remaining a compact and lightweight design which saves space and is beneficial during patient transfer
- Free flow protection – The built-in flow stop feature helps reduce the risk of accidental freeflow prevent free flow when the pump door is open.
- Anti-bolus function -Diminishes the volume of unwanted Bolus injected to the patient after removal of the occlusion cause.
- Air bubble detection – Ultrasound sensor detection with four levels of air in line alarm adjustable
- User-friendly operation
- Soft key design, easy to operate “sharp” colour screen
- Load directly the last infusion rate and volume limit
- Night mode
- Versatile functions
- Adjustable alarm/buzzer volume (3 levels)
- Top indicator light reflects the operation status as well as alarm case

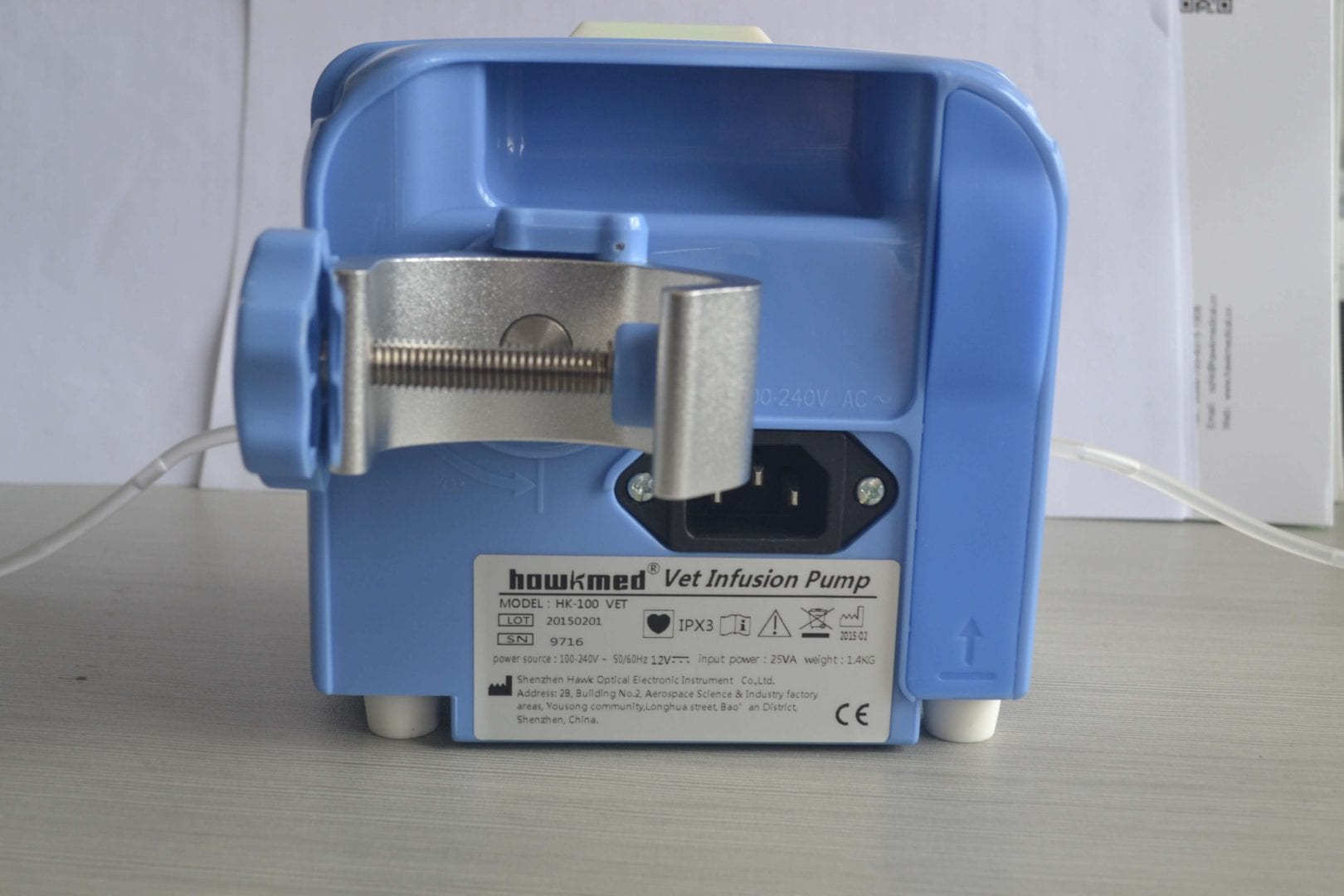

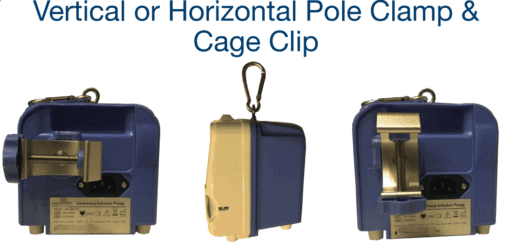

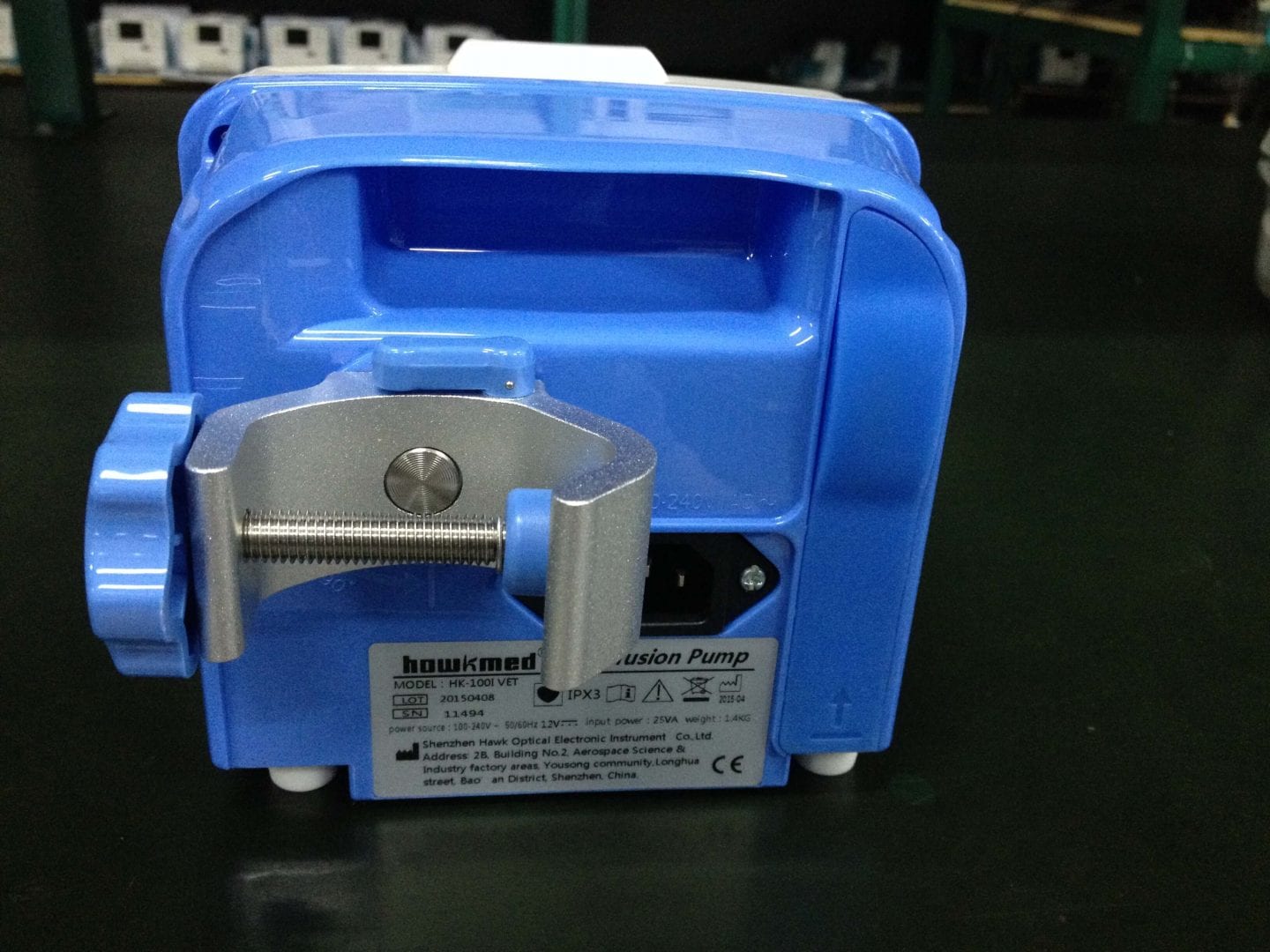

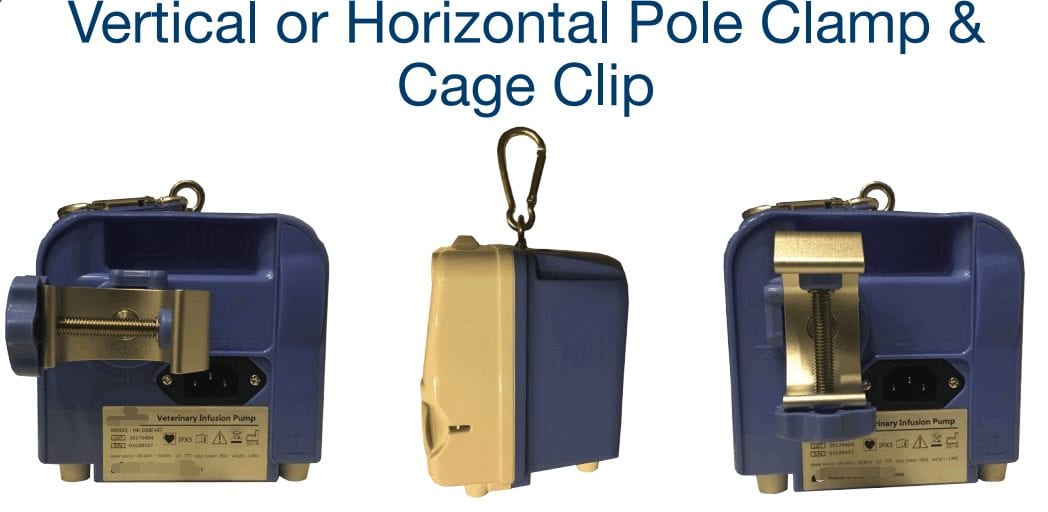

- Cage Mount, hook and IV pole mount systems built-in with a 90-degree rotation pole clamp
- Infusion Giving Sets: Takes any infusion set that has an outer diameter of 3.3-4.5 mm Check out our giving sets!
- Warranty: 12 month
Product Specifications
Flow rate range | 0.1~1200 ml/h |
Infusion mode | rate mode, drip mode ( ml/h and drops/min can be switched) |
Volume to be infused (VTBI) | 0 ~ 9999 ml |
Volume Infused (∑) | 0 ~36000 ml |
Infusion accuracy | ±5% |
Applicable infusion set | Various brands of infusion giving set |
KVO rate | 1 ~ 5 ml/h |
Bolus rate | 300~600 ml/h |
Purge | 600 ml/h |
Air bubble detection | Ultrasound sensor detection with four levels of air in line alarm adjustable |
Occlusion pressure | 3 adjustable occlusion pressure settings: low, middle and high |
Alarms | Visual and audible alarms: Door open, Air-In-Line, Occlusion, Infusion completion, infusion near over, Start reminder function, Low Battery, Battery depleted, malfunction etc. |
Power supply | AC:100~240V,50/60Hz DC:12V ±1V |
Battery | Rechargeable lithium polymer battery,7.4V,2100mAh Can operate for more than 3 hours after fully charged at 25ml/h. (10hs recharging when the machine is turned on, 3hs recharging when the machine is off.) |
Dimensions | 145×100×120 mm (length×width×height) |
Weight | ≤1.4kg |
