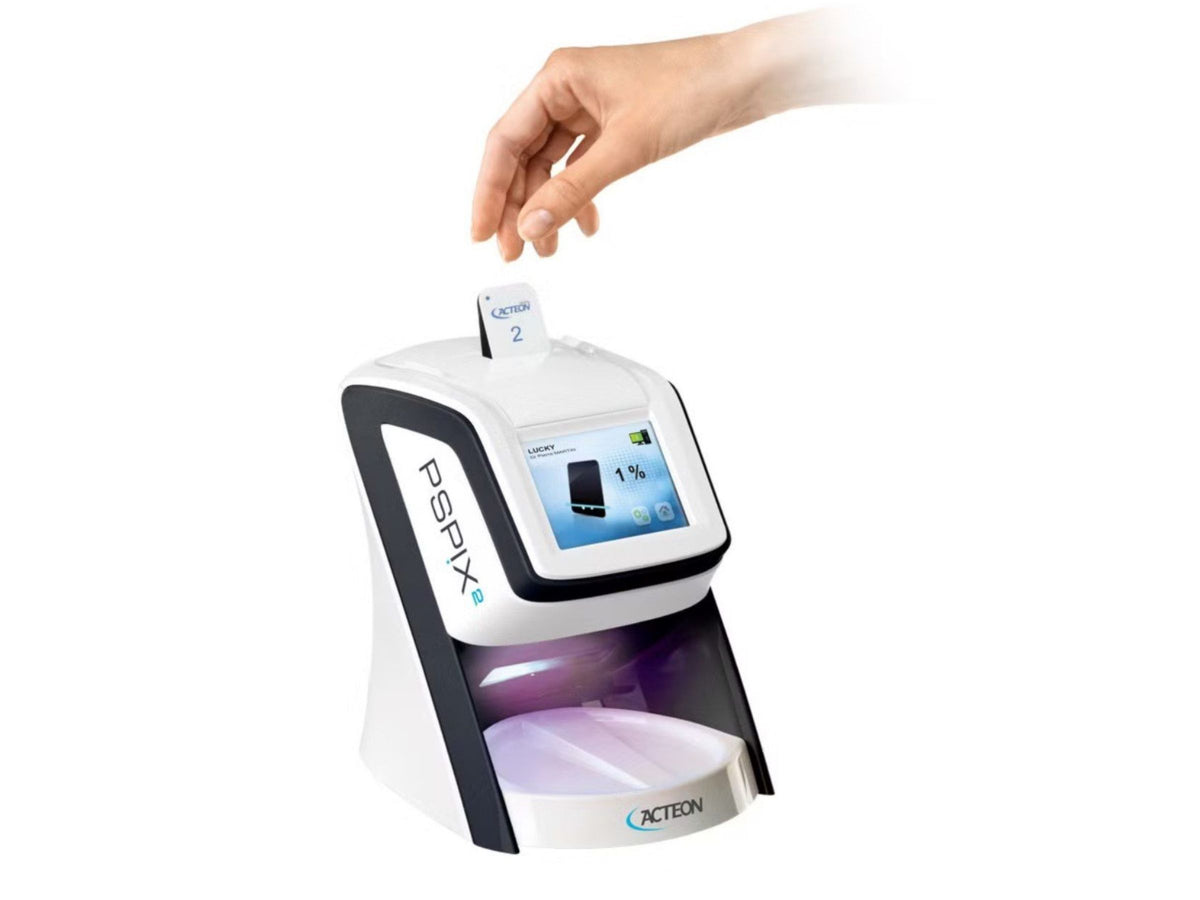

The PSPIX² Imaging Plate Scanner sets a new benchmark in digital dental imaging with its ultra‑compact footprint, modern design, and exceptional ease of use. Delivering sharp, high‑quality images within seconds, it is three times smaller than comparable imaging plate systems—making it ideal for clinics where space, speed, and efficiency matter.
Equipped with a vibrant colour touch screen and intuitive “Click & Scan” workflow, the PSPIX² ensures seamless operation for any user. Its multi‑user capability supports up to 10 workstations, while autoclavable removable parts maximise infection control and safety in clinical environments.
Key Features
-
Ultra‑sharp images delivered in seconds
-
Compact design—three times smaller than other systems
-
Intra‑oral plates available in sizes 0–4, reusable hundreds of times
-
Easy‑to‑use touch screen interface
-
Multi‑user capability for up to 10 workstations
-
Exclusive Click & Scan concept for intuitive operation
-
Autoclavable removable parts for enhanced hygiene
-
Fast scanning time (Size 2 plate: 2.8 s)
How It Works
-
Select the desired workstation from the touch screen
-
Insert the imaging plate into its protective cover and place it in the slot
-
The scanner automatically processes and optimises the image
-
The image appears on the computer within seconds (8–10 s depending on plate size)
-
The plate is immediately erased and ready for reuse
If you’d like a deeper explanation of how imaging plates work, I can walk you through that too.
Specifications
- Theoretical Resolution: 20 lp/mm
- Scan Time (Fast Mode): 1.6–7 s
- Scan Time (High Definition): 2.1–3.6 s
- Connection: Ethernet RJ‑45
- Dimensions: 154 × 204 × 193 mm
- Weight: 2.6 kg
- Operating Voltage: 100–240 V, 50/60 Hz
- Warranty: 2 years
Imaging Plate Sizes
-
Size 0: 22 × 35 mm
-
Size 1: 24 × 40 mm
-
Size 2: 31 × 41 mm
-
Size 3: 27 × 54 mm
-
Size 4: 52 × 54 mm (2 × Size 3)
