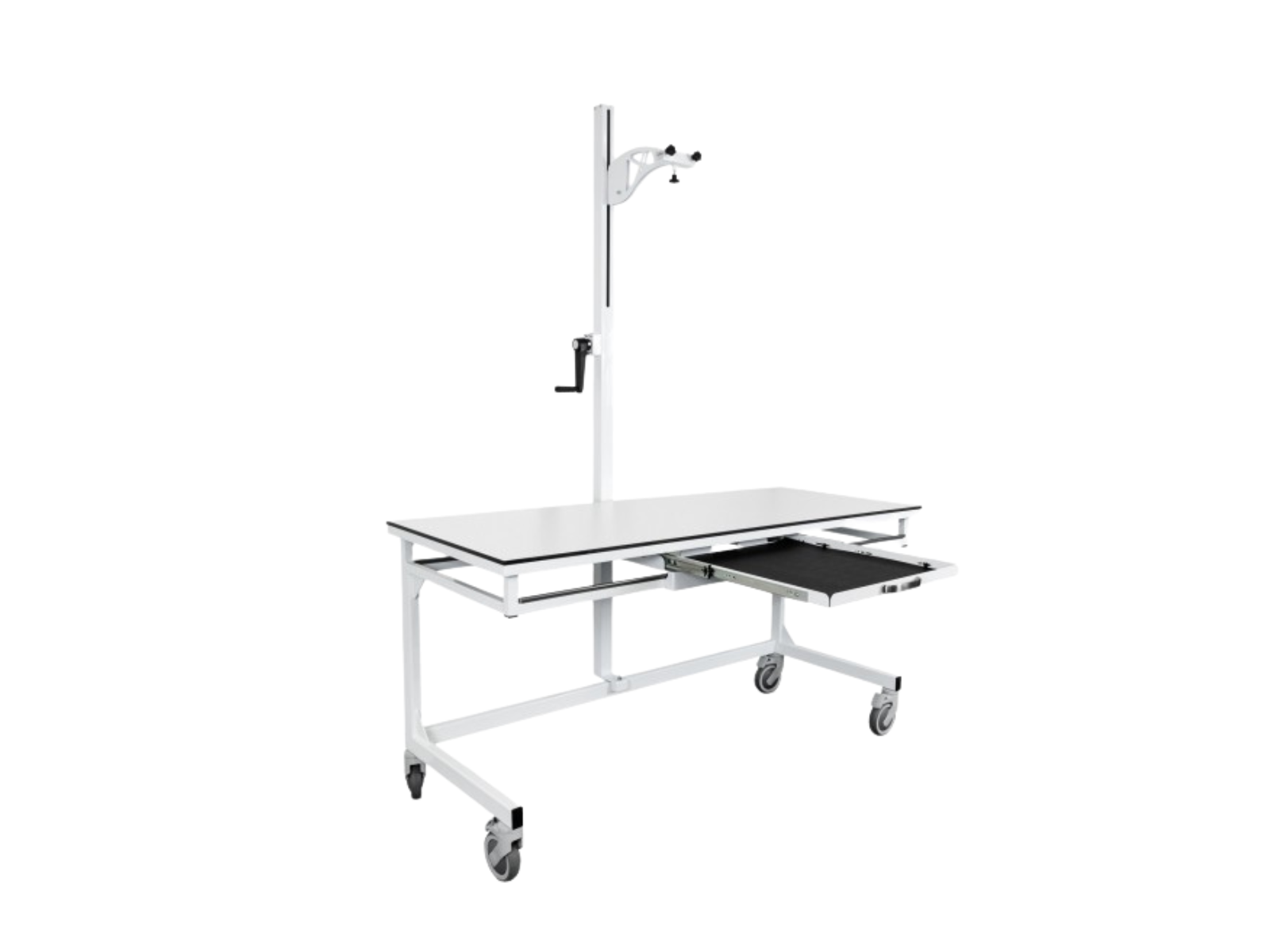

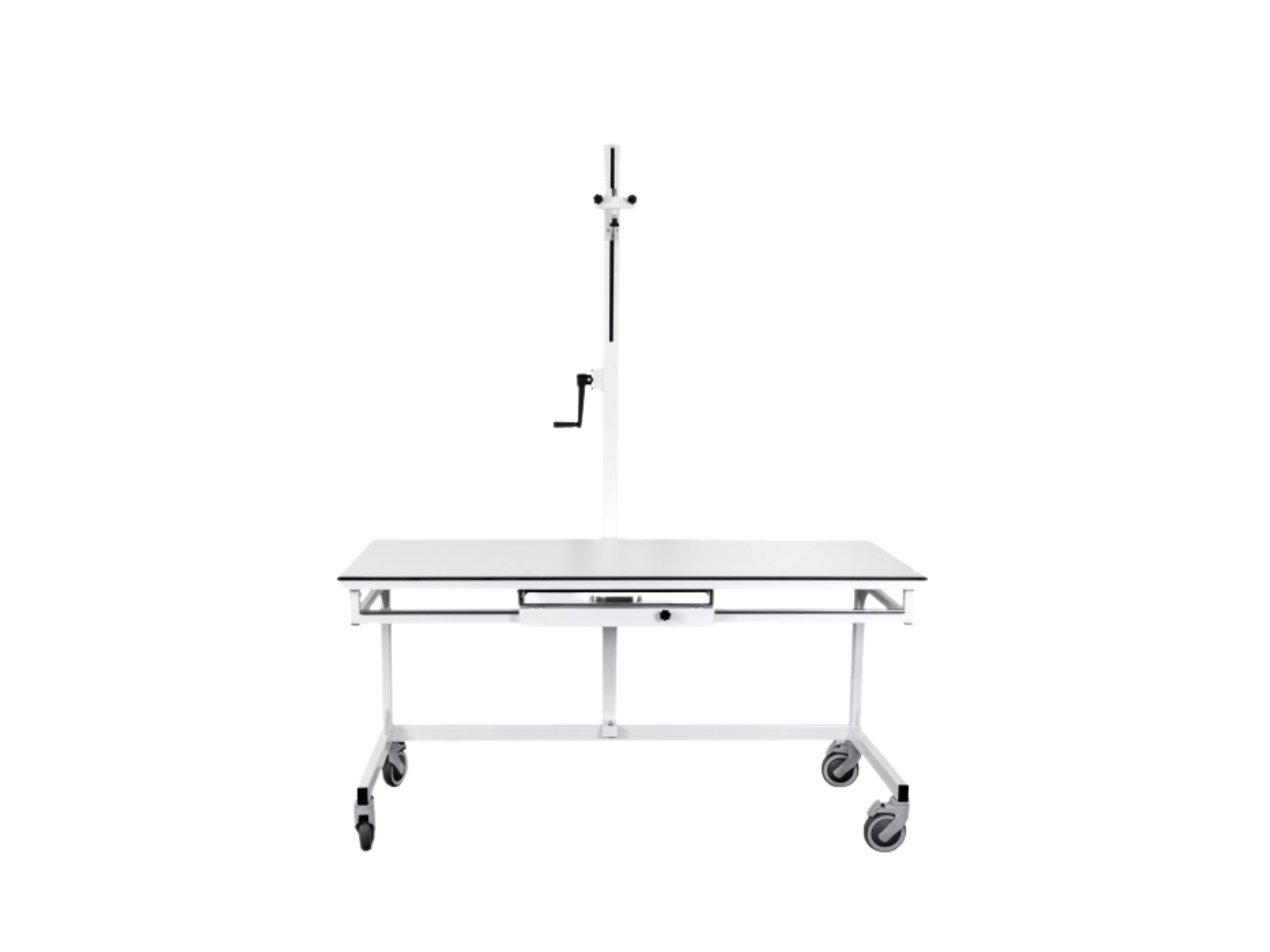

The JVet XR-SLIDE 3 is a veterinary X-ray table designed with an integrated movable drawer and support stand for portable X-ray units. Its advanced, lubrication-free sliding system enables smooth and effortless movement of both the drawer and stand along the full length of the table.

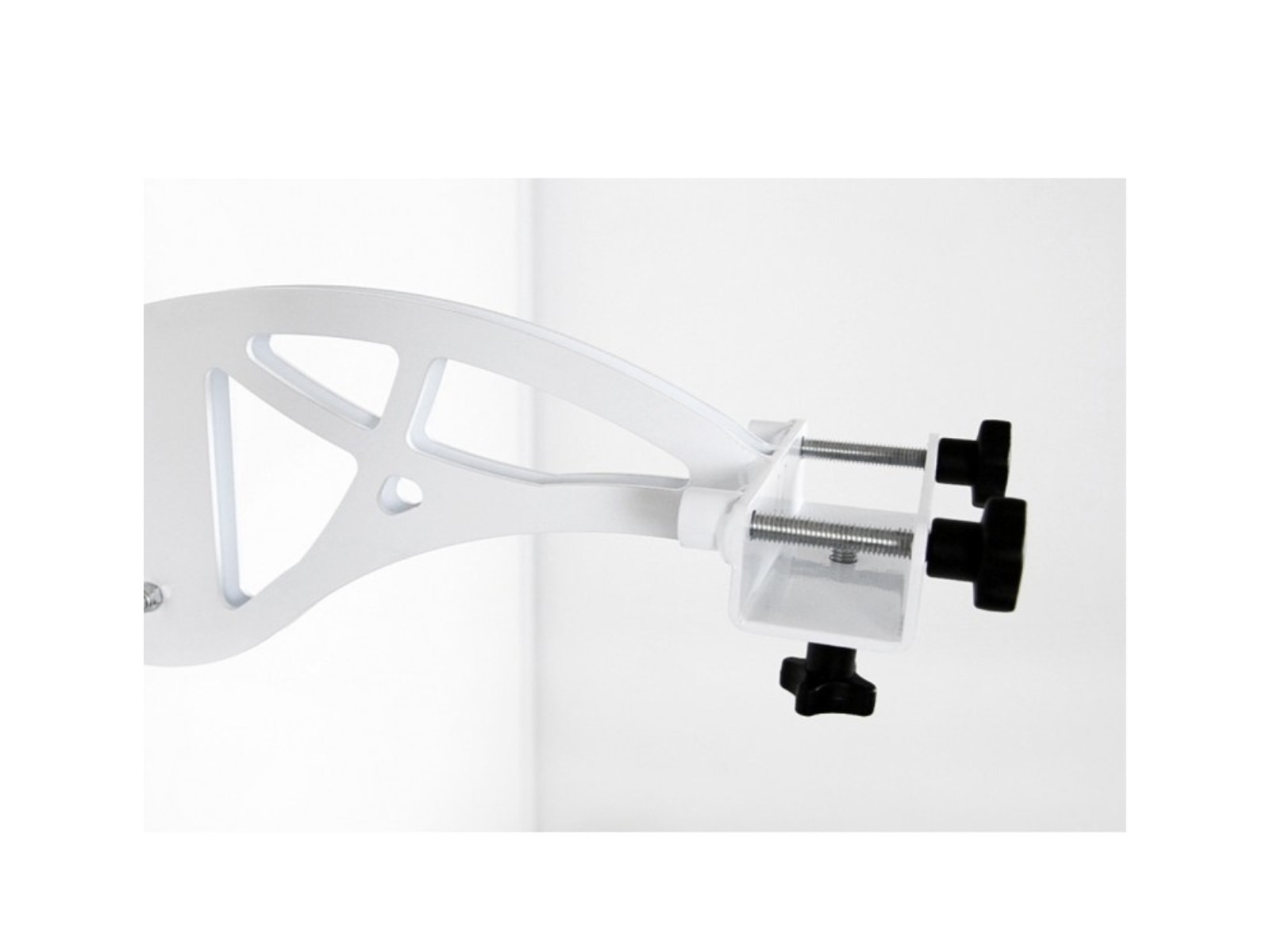

The support stand is engineered to accommodate X-ray equipment weighing up to 35 kg and features adjustable height settings ranging from 70 cm to 120 cm above the drawer surface. Mounted on lockable casters, the table can be easily repositioned while maintaining stability during use.
The tabletop is manufactured from HPL laminate, which is fully transparent to X-rays and provides exceptional durability. A 60 × 65 × 3 cm detector drawer is fitted with an anti-slip mat to ensure secure placement of imaging equipment.
Key Features
- Top dimensions 160 x 65cm
- Dimensions 160 cm length x 70cm width x 80cm worksurface height (can be customised on request) x 200cm stand
- Maximum load capacity: 150 kg
- Durable steel frame with chip- and scratch-resistant powder-coated finish
- 4 lockable casters for easy mobility and secure positioning
- X-ray-transparent HPL tabletop
- Advanced maintenance-free sliding system

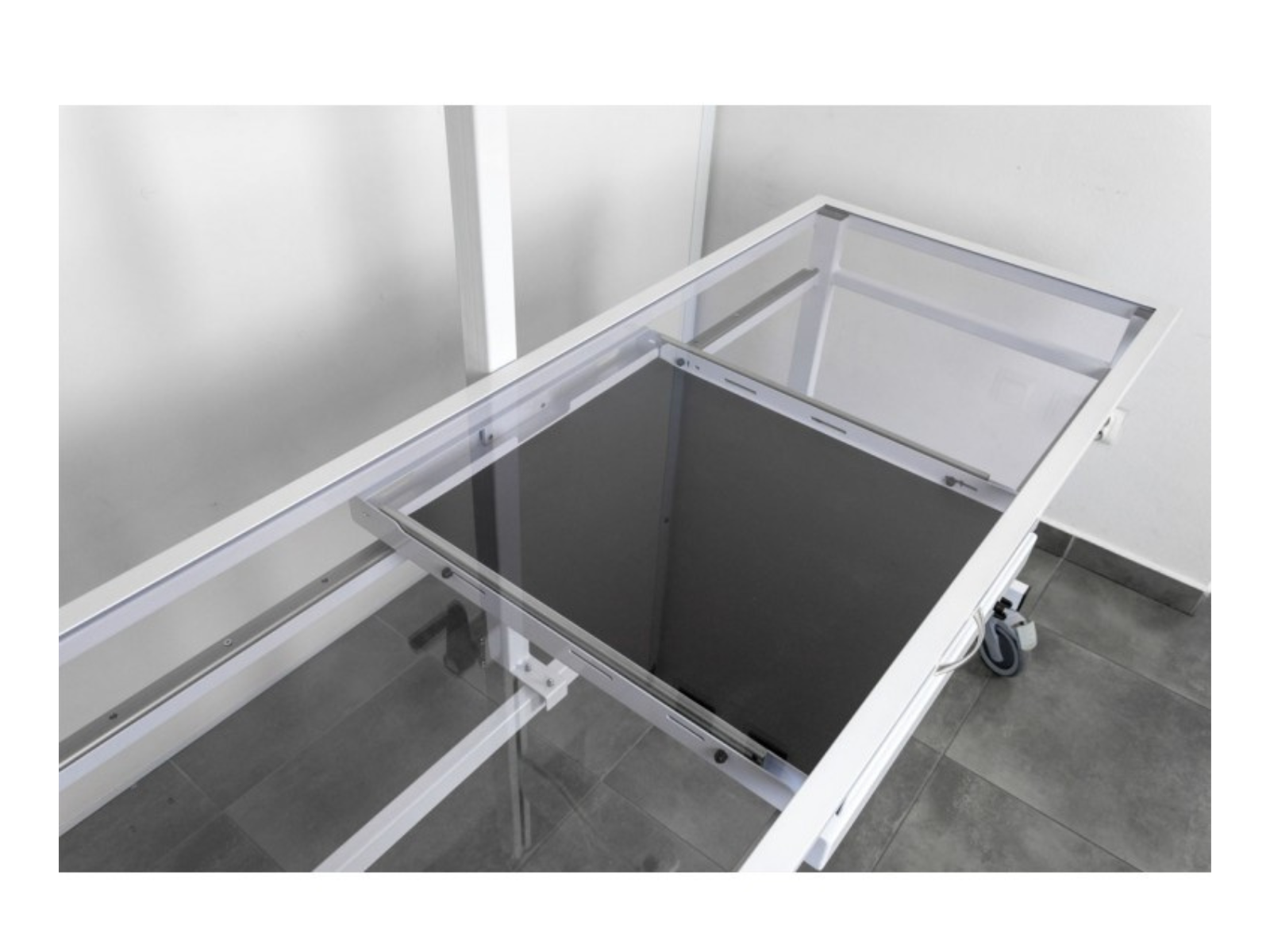

- Integrated detector drawer (60 × 65 × 3 cm)
Advanced Sliding System
The XR-SLIDE 3 utilizes a state-of-the-art lubrication-free linear guide system based on a sliding rather than rollingmechanism. High-performance polymers combined with corrosion-resistant materials create durable sliding surfaces that operate without lubrication.
This maintenance-free design is resistant to dirt, water, chemicals, heat, and impacts, ensuring reliable long-term performance. The specially engineered components also provide exceptionally smooth and quiet operation.
Benefits of the HPL Laminate Tabletop
- Outstanding strength and resistance to mechanical damage
- High resistance to chemicals and biological contaminants
- Easy to clean and disinfect
- Flame-retardant performance (Class Cs1, d0)
- Waterproof and fully resistant to moisture and water vapor
The XR-SLIDE 3 combines durability, mobility, and precision engineering, making it an ideal solution for veterinary radiography application.
