Why Choose Astramax HD‑LED®?

High‑Definition Surgical Lighting

Astramax HD‑LED® produces natural white light with near‑perfect colour rendition across the full visible spectrum. This allows clinicians to distinguish subtle differences in tissue tone with ease.

• Natural white light for true‑to‑life colour

• Reduced eye strain—let the light do the work

• Strong, vibrant colour reproduction for improved visual accuracy

Full Spectrum Colour Rendition

• The only surgical lighting with near‑perfect colour rendition across the entire visible spectrum

• Exceptional R9 red rendering for enhanced visibility of red tissues

• User‑adjustable Red Balance Control to fine‑tune colour output to individual preference and surgical conditions

Benefits:

• Clear differentiation between similar tissue types

• Enhanced visualisation of vascular structures

• Customisable colour response for optimal comfort

Fat Beam Illumination

Astramax delivers one of the largest and most uniform beams in its class.

• High light flux for a wide, evenly illuminated field

• Reduced contrast and fewer visual distractions

• Adjustable beam size to suit the surgical site

Slim, Compact & Powerful

Despite its compact design, Astramax HD‑LED® produces an impressive 150,000 Lux, comparable to much larger theatre lights.

• Ultra‑slim, lightweight lamp head

• Smooth, precise positioning

• Ideal for smaller theatres or where space is limited

Long Life & Energy Efficient

• >60,000 hours LED life (20+ years of typical use)

• Uses up to 70% less energy than conventional medical lighting

• Environmentally friendly: mercury‑free, ROHS compliant, no harmful chemicals

Large Illuminated Area

• 320 mm diameter illuminated field

• Easily lights large tissue areas without constant repositioning

Shadow Control

Distributed LED placement ensures excellent shadow reduction, even when obstructions occur.

• Under‑lights obstructions for consistent visibility

• Maintains clarity during complex procedures

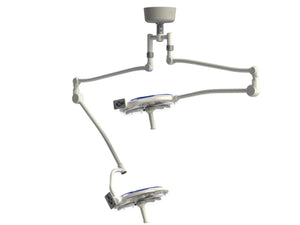

Large Movement Range

The lamp head is mounted on a multi‑movement arm system offering:

• Five rotations for maximum flexibility

• Wide positioning envelope for precise beam placement from any angle

Economical Operation

• Exceptional performance at a competitive price

• Low running costs: <50 W power consumption

• Minimal maintenance thanks to long LED lifespan

Infection Control

• Lamp head sealed to IP54 to prevent ingress of dust and fluids

• Smooth, easy‑clean surfaces

• Sterilisable handle for safe intraoperative adjustment

The Astramax HD‑LED® combines high‑definition illumination, exceptional colour accuracy, and outstanding ergonomics—making it a powerful yet compact solution for modern operating theatres.
