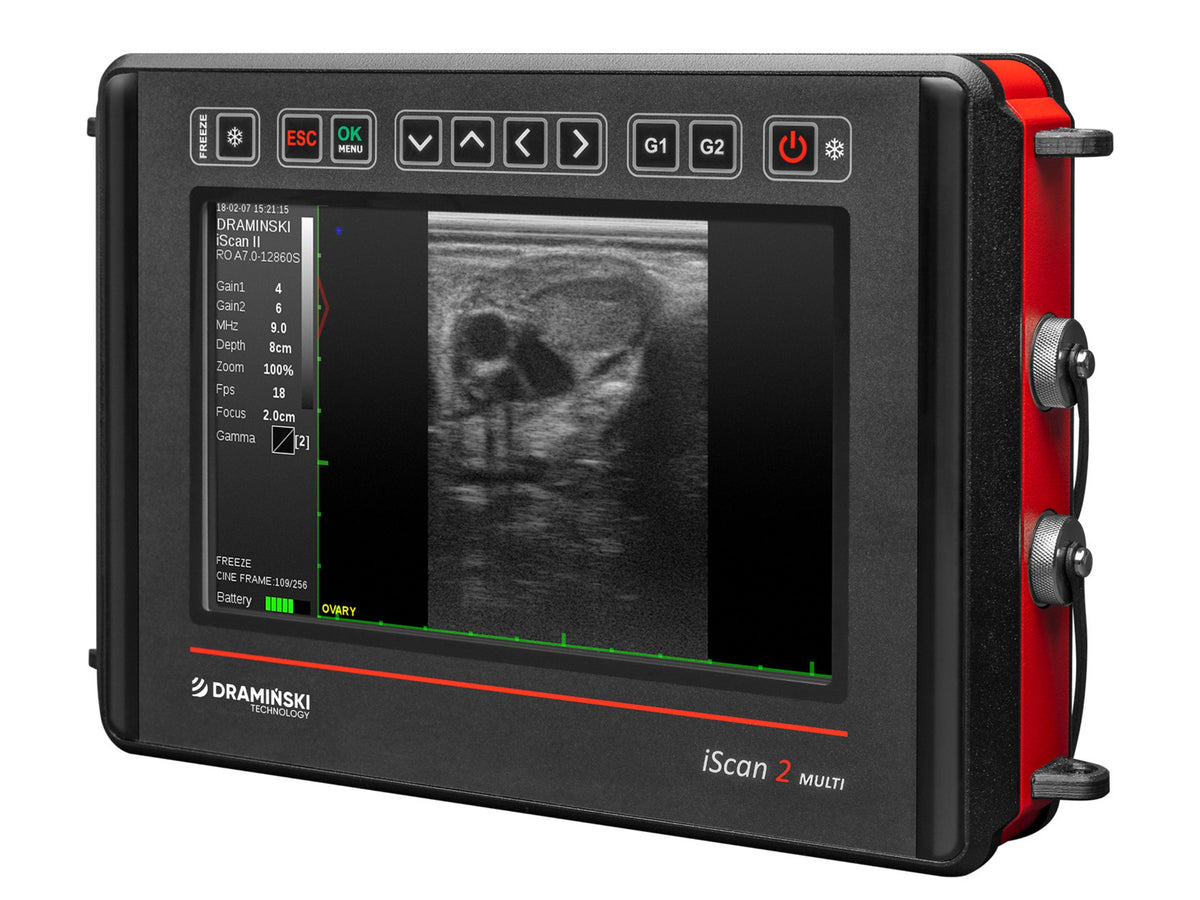

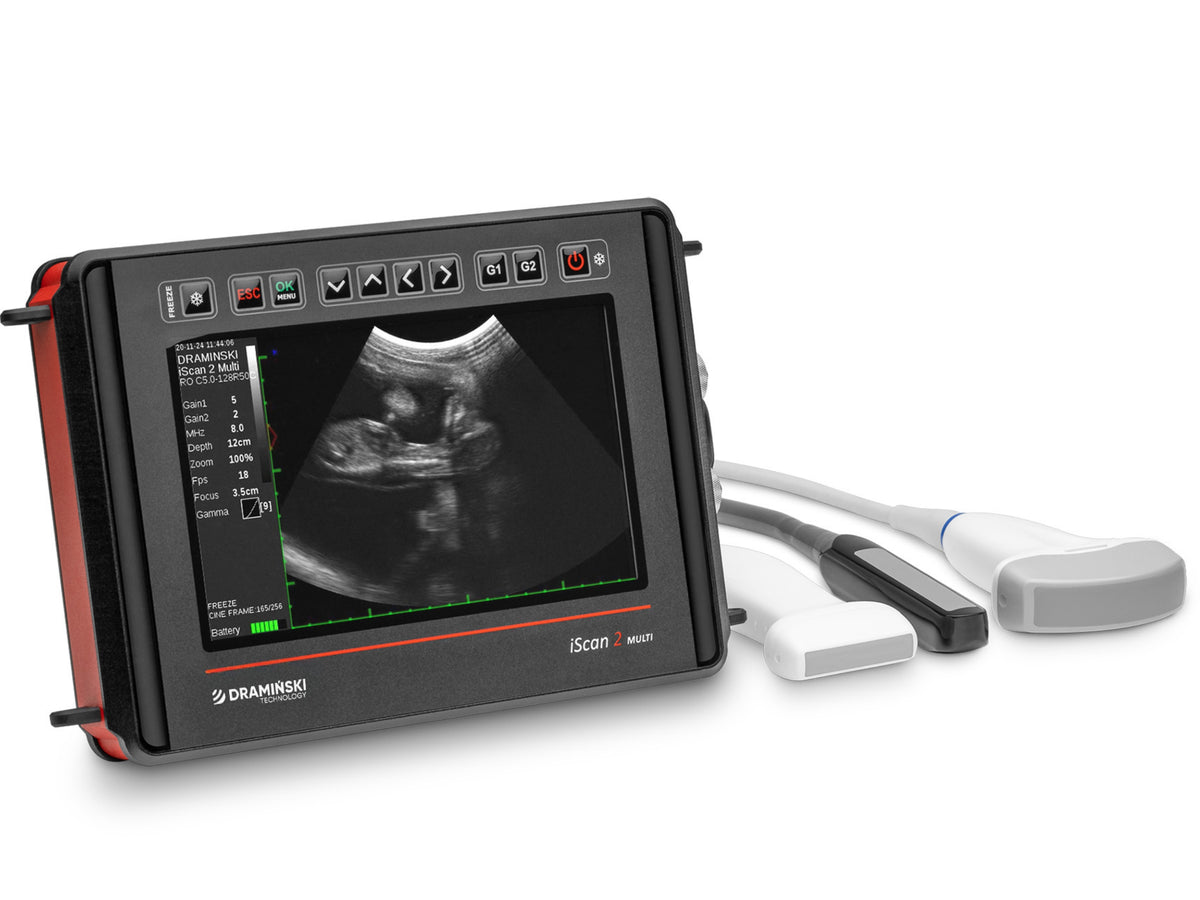

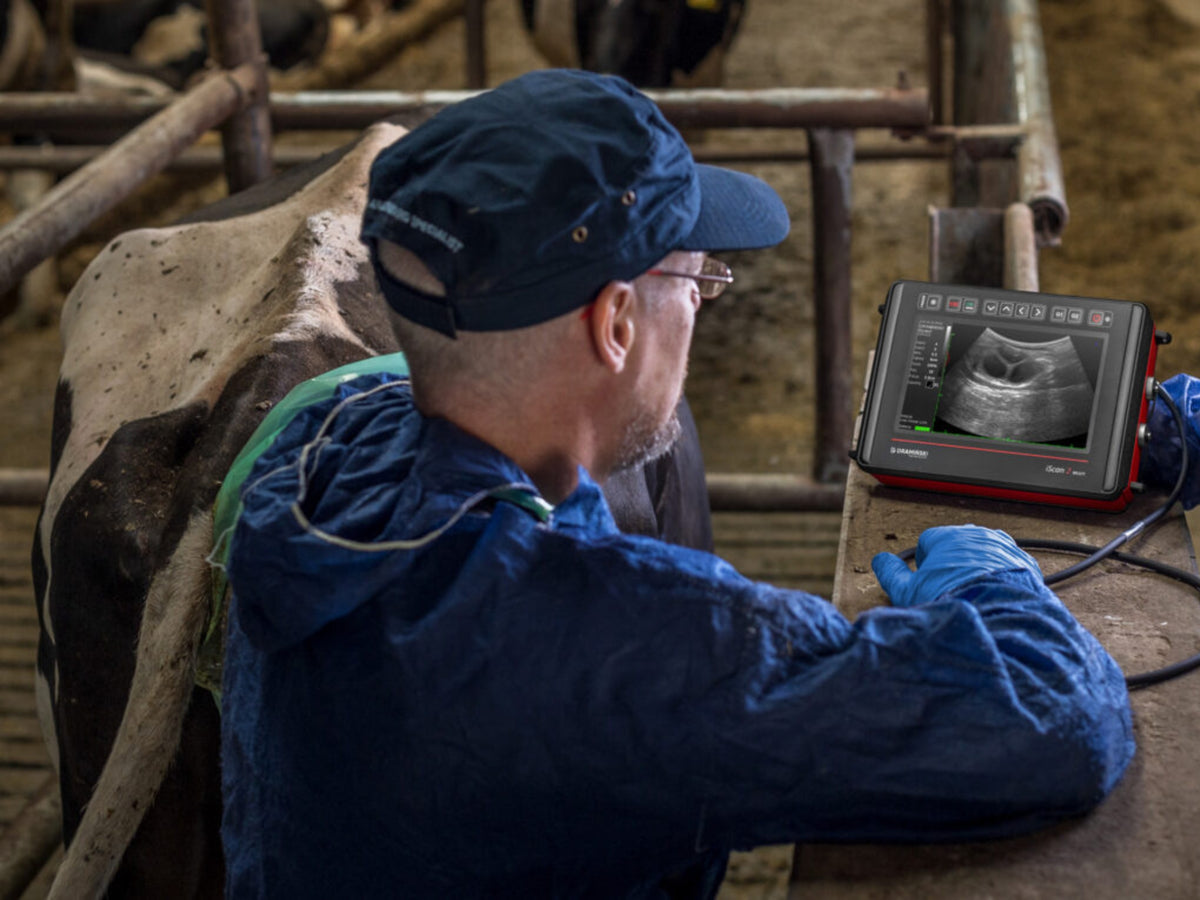

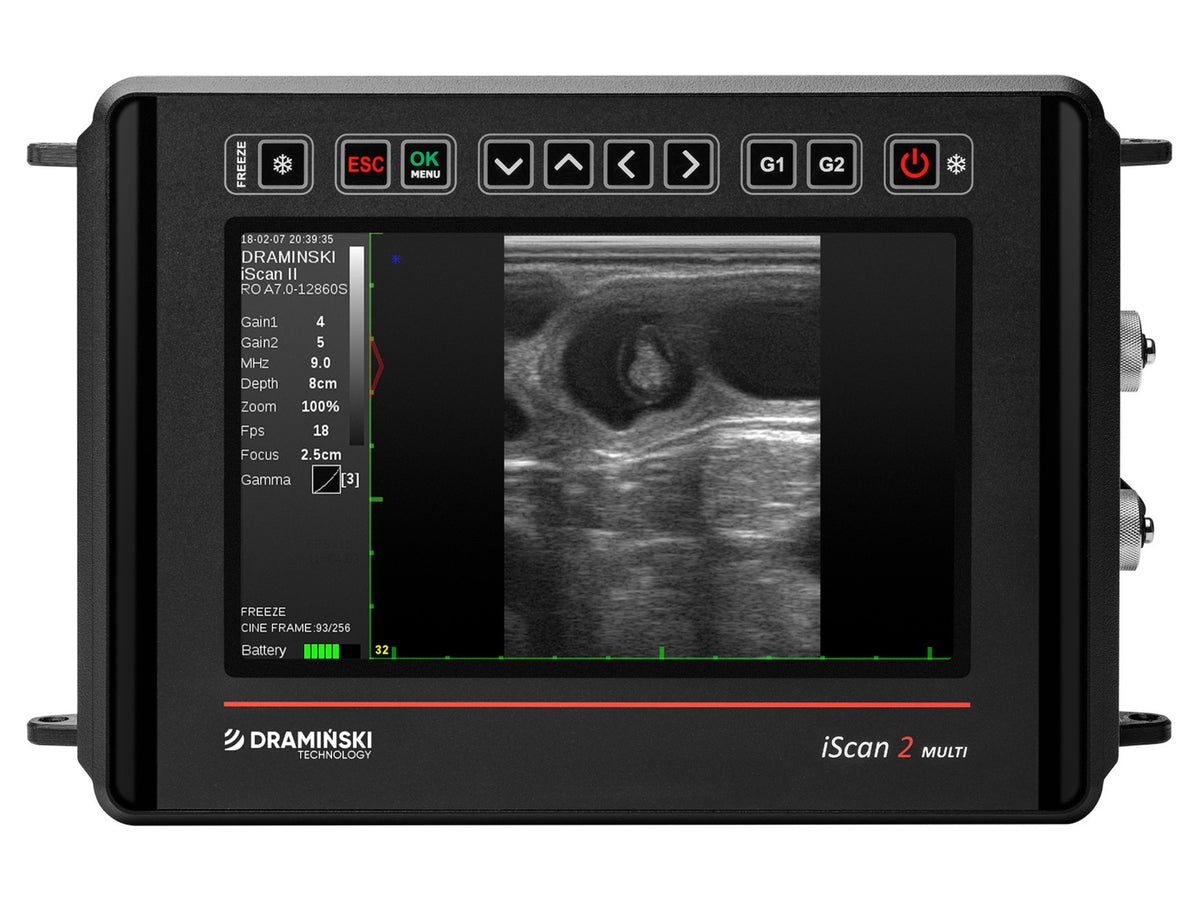

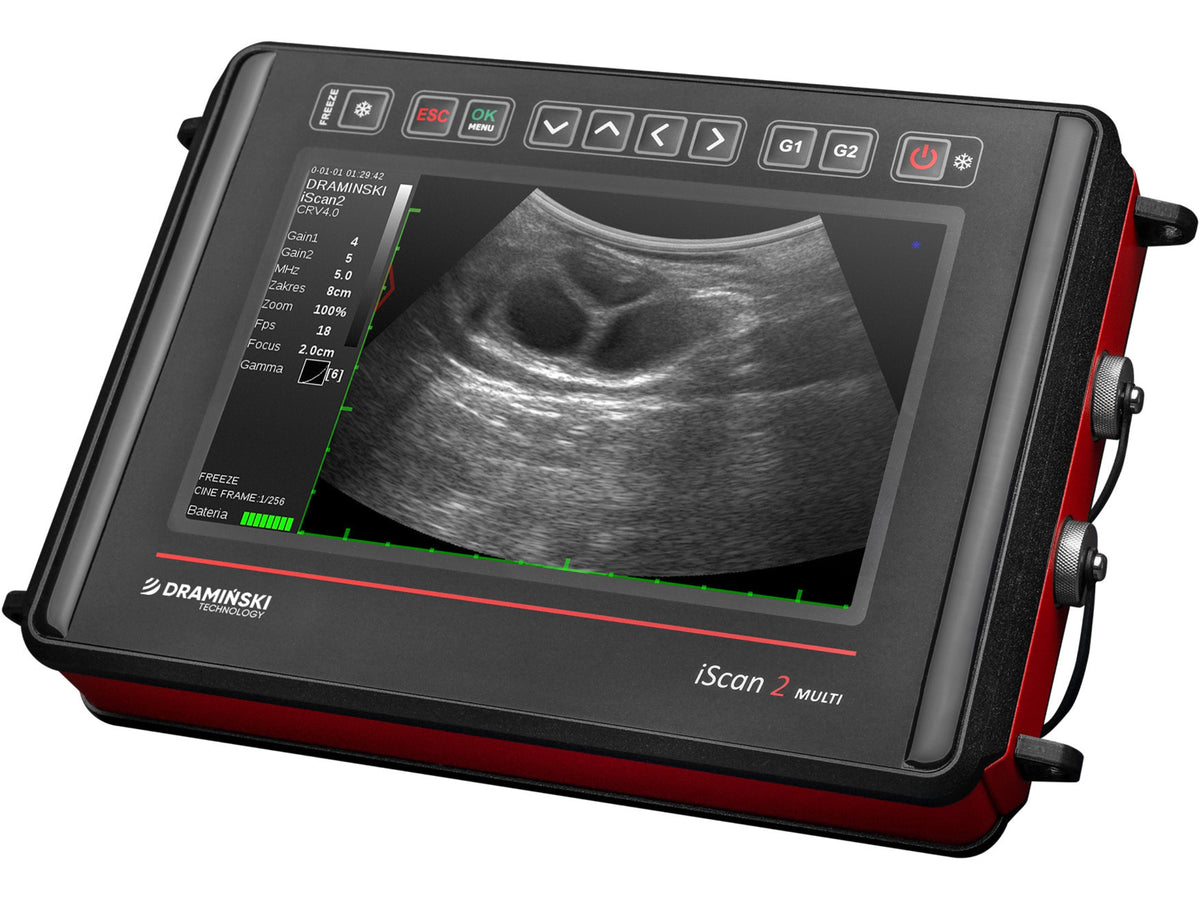

The iScan2 MULTI expands the trusted iScan family with a rugged, field‑ready ultrasound system designed for multi‑species, multi‑application veterinary diagnostics. With interchangeable probes, a 7‑inch high‑visibility display, and advanced imaging technologies, it delivers reliable performance in demanding on‑farm environments.

Product Features

Image Quality

• Hi‑tech processor enabling advanced image‑processing algorithms.

• LuciD™ technology enhances contrast, sharpness and tissue differentiation while reducing noise.

• Optional goggles and sunshield for clear outdoor visibility.

Large Screen

• 7‑inch LCD with wide viewing angles.

• Ruggedised for durability in harsh field conditions.

Battery Life

• Up to 7 hours of continuous operation.

• Screen‑off mode for power saving without shutting down.

• Includes comfortable suspenders for all‑day use.

Quick Start Diagnostics

• Customisable quick access menu (Q) for frequently used functions.

• One‑button access to preferred settings.

Protection & Durability

• Rugged casing with active ventilation for heat and humidity resistance.

• Total weight with battery: 2060 g.

• Flat screen, protected probe socket and waterproof keys for easy cleaning and disinfection.

Warranty

• 24 months – ultrasound scanner

• 12 months – probes

• 6 months – battery

What’s Included

• iScan2 MULTI ultrasound scanner

• Ultrasound probe*

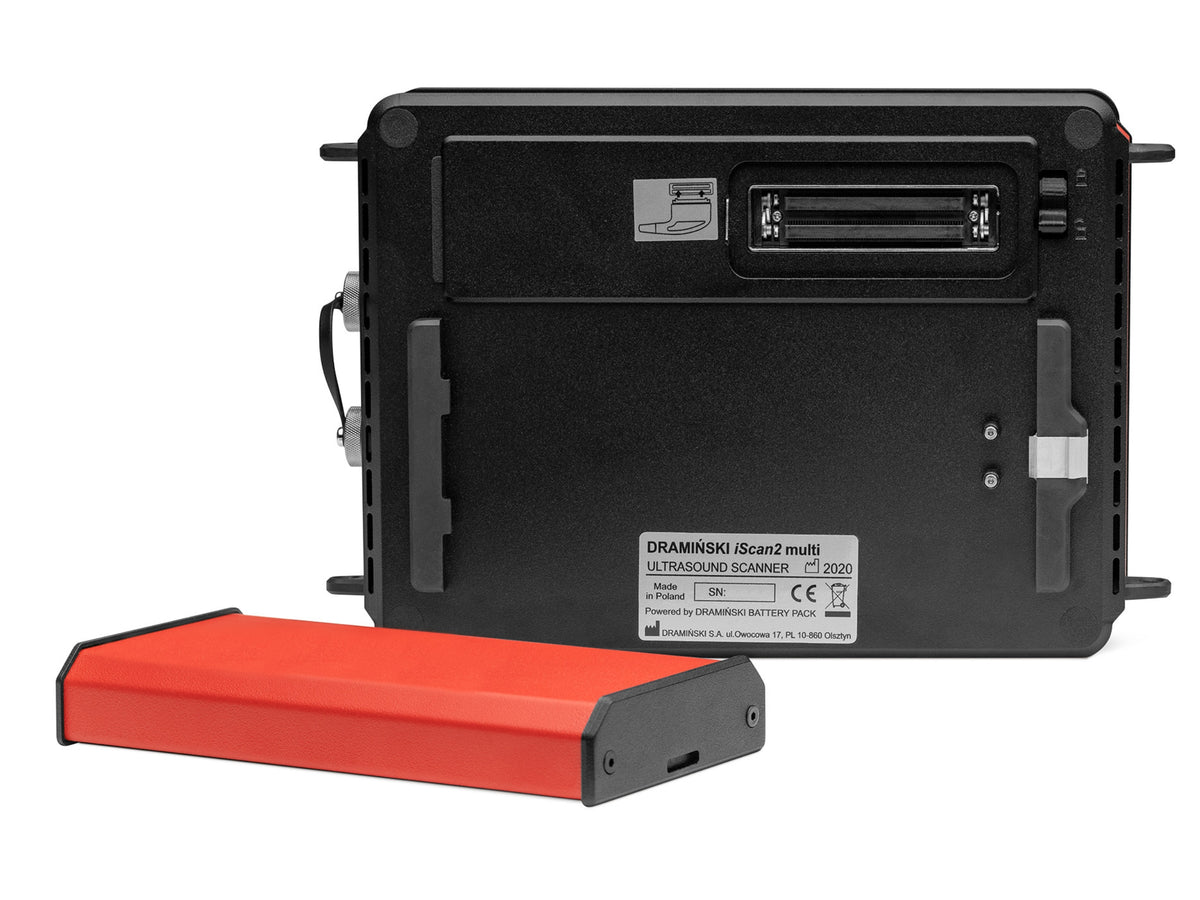

• External battery

• Battery charger with 230V cable

• USB storage adapter

• Suspenders

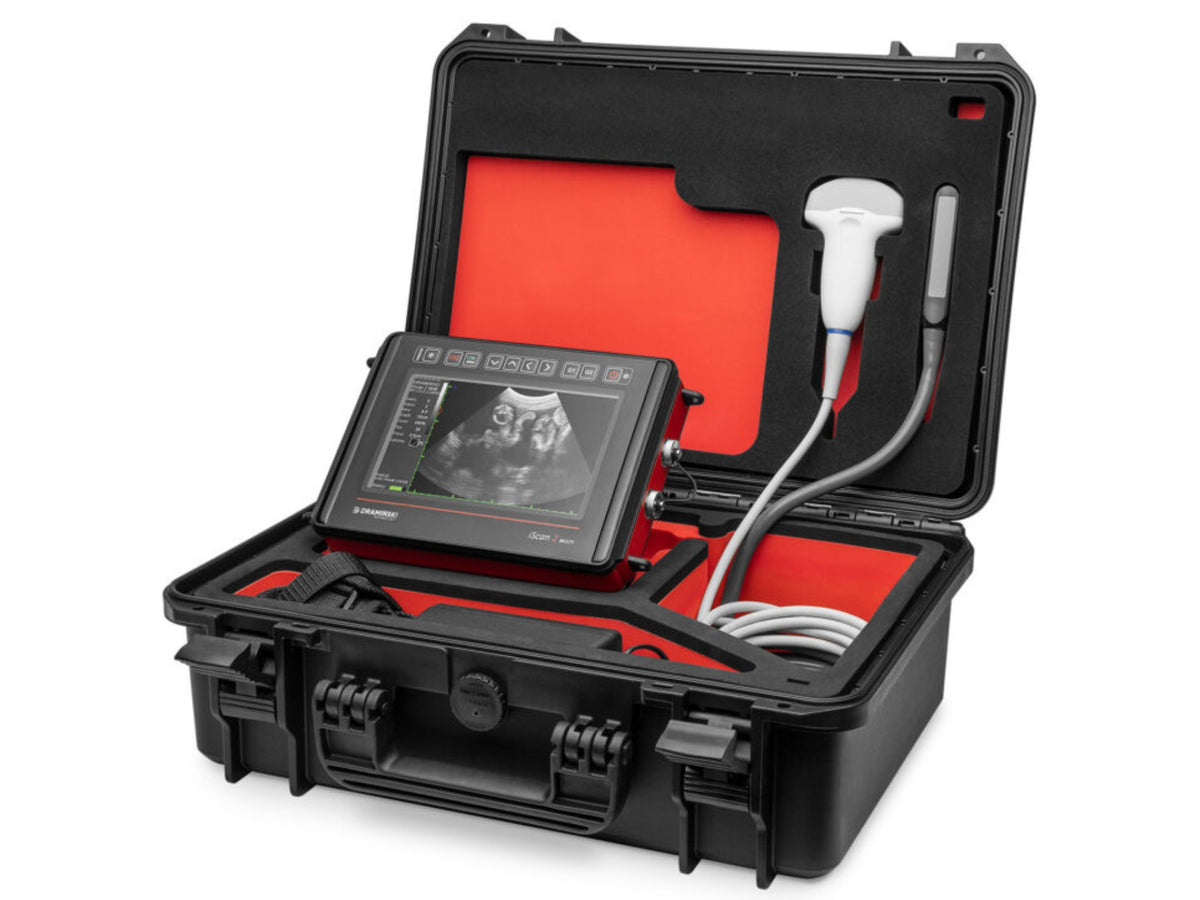

• Transport case

• User guide (USB)

\*Probe type depends on configuration.

Optional Accessories

• Additional probes

• Goggles

• Sunshield

• Rectal probe extensions (cattle / sheep)

• Stand

Technical Data

• Dimensions: 255.6 × 165 × 69.15 mm

• Weight: 2060 g (without probe)

• Battery: Up to 7 hours; 4‑hour charging time

• Applications: Reproductive diagnostics, pregnancy monitoring, lung/organ exams, adipose measurement, locomotor and ocular imaging

• Display modes: B‑mode, B+B, B+M

• Frame rate: 28 fps

• Greyscale: 256 levels

• Gamma: 10 settings

• Display: 7″ LCD with LED backlight

• Water/dust resistance: IP32

• Image management: Freeze, zoom (60–200%), full‑screen, cine loop (256 frames), save/export PNG & AVI

• Measurements: Distance, area, volume, foetal ageing, backfat & muscle

• Presets: Reproductive tract, pregnancy, foetal sex, late pregnancy + custom presets

Available Probes

Range of Probes

• Linear rectal probe – Reproductive exams, pregnancy confirmation, foetal sexing (horses, cattle); with extension for sheep/alpacas; suitable for calf lung exams.

• Abdominal linear probe – Tendon and eyeball exams in horses; suitable for exotic animals and fish.

• Convex rectal probe – Rectal reproductive exams in cattle, small ruminants, pigs (transabdominal), and horse pelvic diagnostics.

• Convex abdominal probe – Pregnancy confirmation in small ruminants and sows; lung exams in cattle/horses; umbilical region exams in calves/foals.

• OPU probe – Oocyte aspiration in cattle; ovarian cyst drainage in horses.

• Backfat probe – Backfat thickness and longissimus dorsi muscle measurement in cattle and pigs.

Abdominal

• Convex 3.5 MHz R60

• Convex 5 MHz R50

• Linear 10 MHz L40

• Microconvex 6.5 MHz R15

• Microconvex 6.5 MHz R11

Rectal

• Linear rectal 7 MHz L60

• Convex rectal 5 MHz R60

• Microconvex rectal 5 MHz R20

Specialised

• OPU 6.5 MHz R11

• Linear Backfat 3.7 MHz L150

• Linear Backfat 3.7 MHz L180

• Microconvex endocavitary 6.5 MHz R10

• Linear endocavitary 7.5 MHz L40
