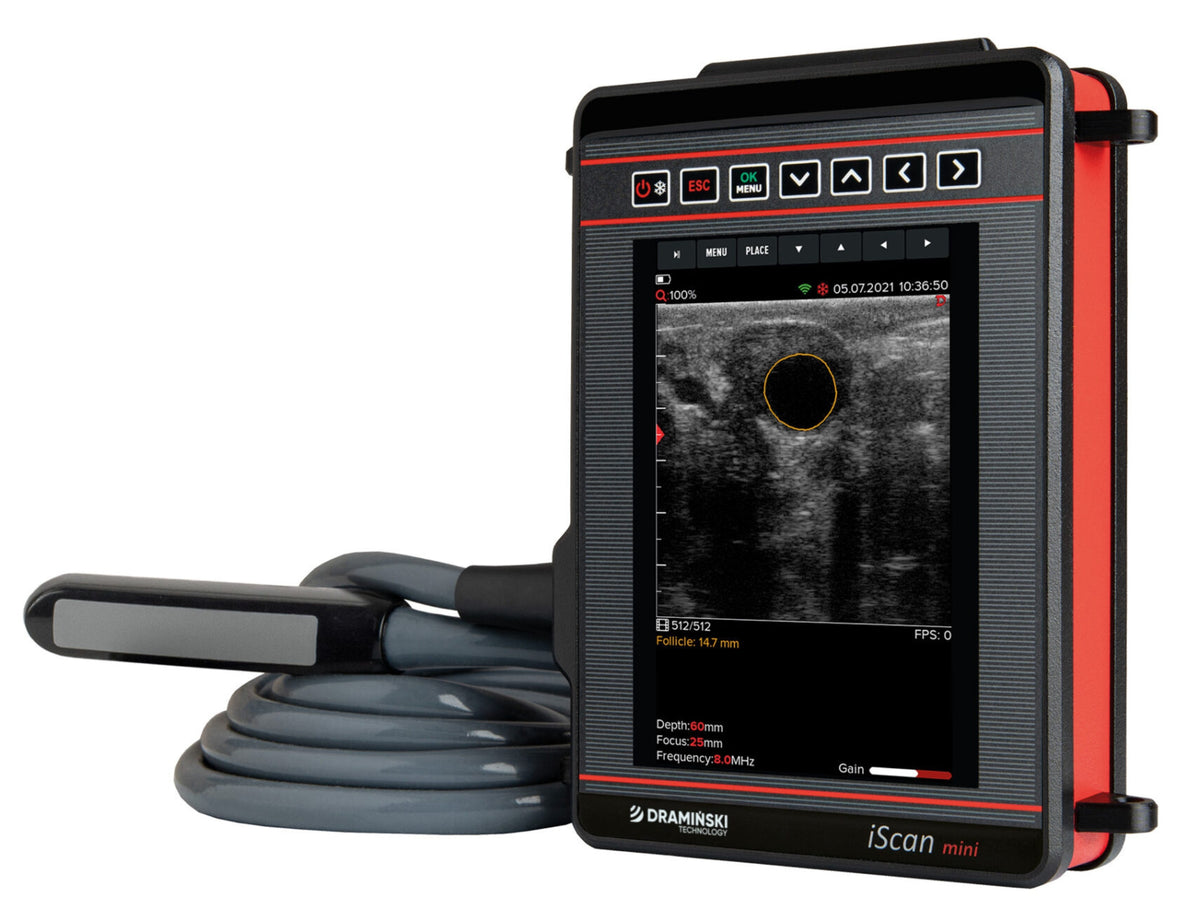

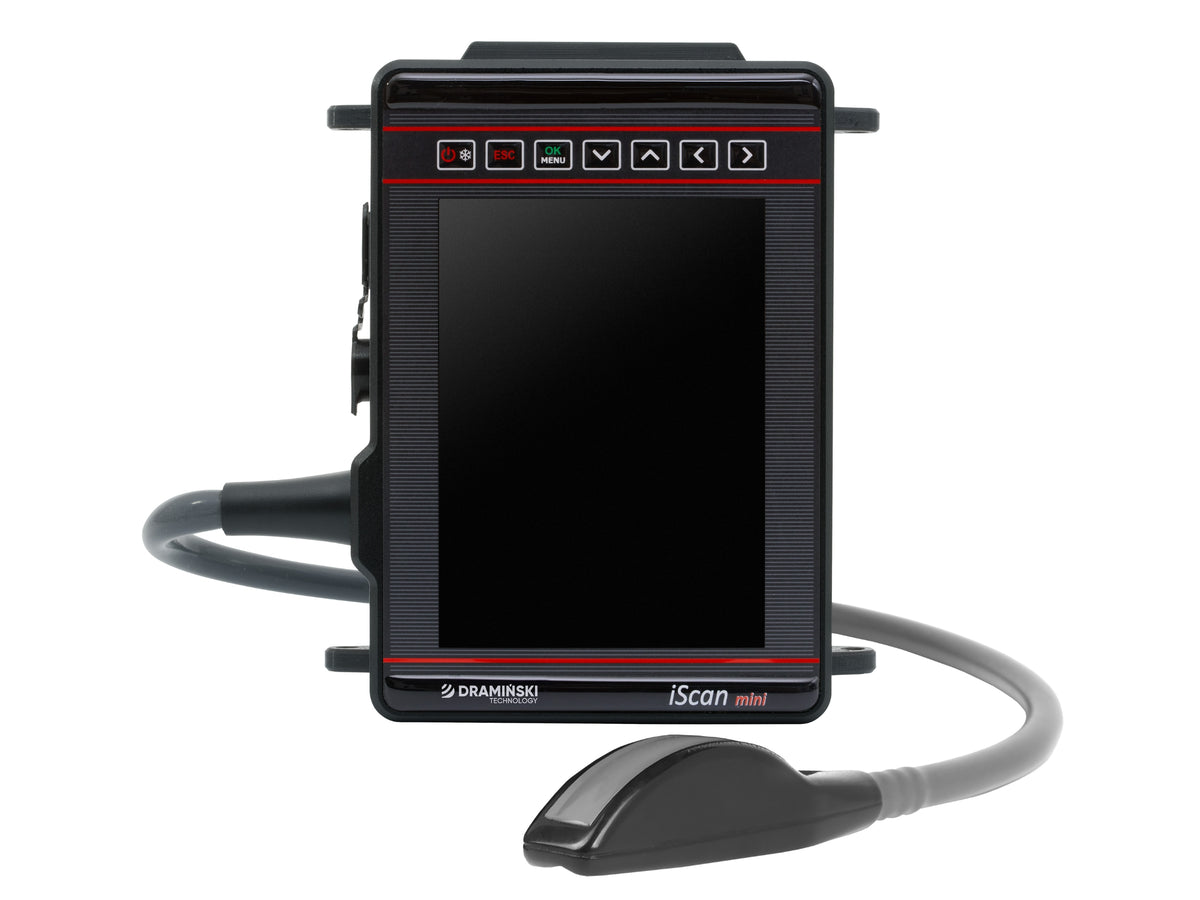

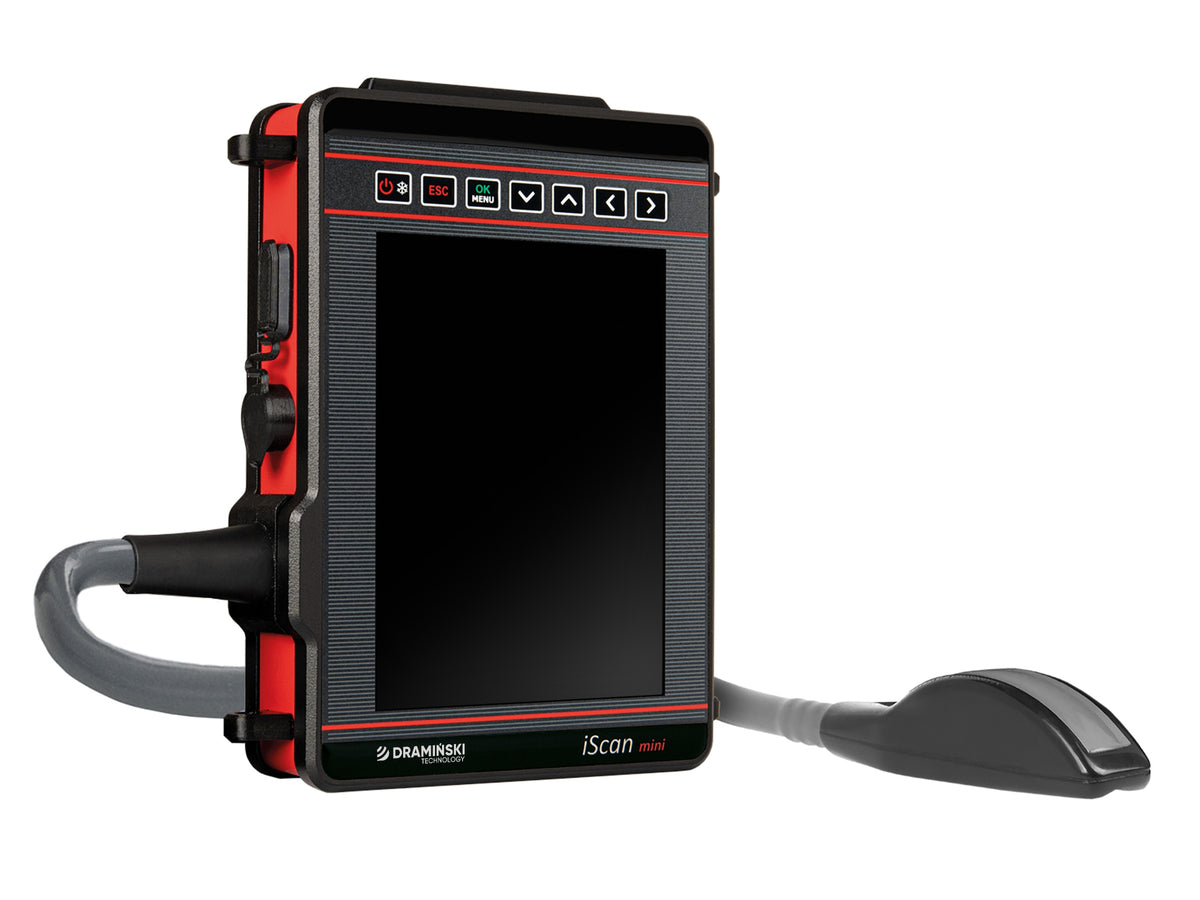

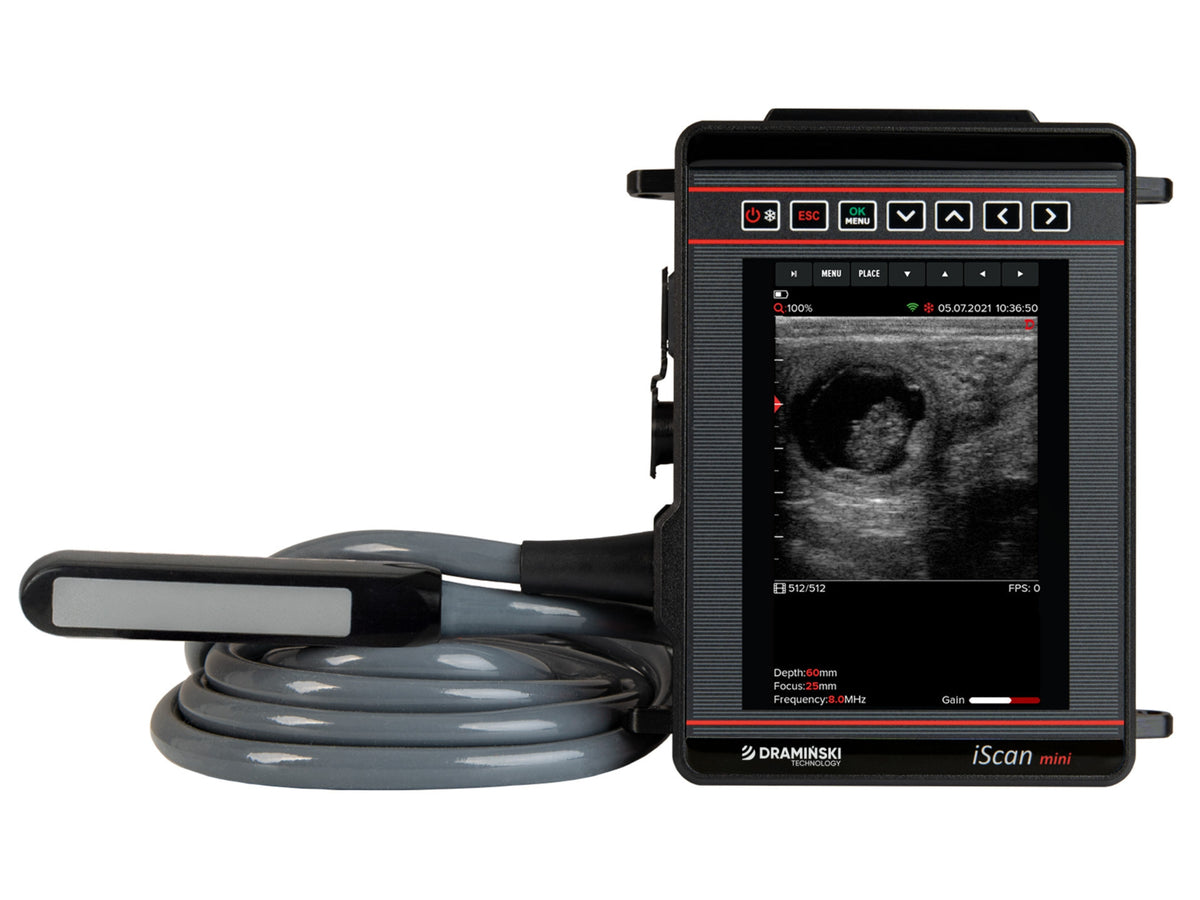

Draminski iScan Mini Ultrasound

Q: How do I place an order?

You can place an order with us via our website, or you can contact our sales team and place an order with them directly too. Once an order is placed, a member of our team will be in contact to keep you informed of estimated delivery dates and help if you have any further questions too. Please kindly note that our team will do their best to get back to your order enquiry as quickly as possible, for any urgent orders please call us on 01452 347 101.

NEW IN! Perfect for work in the field with up to 10 hours of battery life!

BRAND NEW TO PSS! Intro offer £1000 Off!

The iScan mini answers the voice of veterinarians working in the field. Simple to use, it has a brilliant image and is not much bigger than your phone! It is an indispensable tool in the work of every veterinarian dealing with the reproduction of farm animals. Light and handy, it was created to make your job easier.

Product Features

Small and Tough

Barely larger than a palm of a hand, iScan mini is made of aluminium, which makes it extremely durable. Its external dimensions are 170x140x52 mm, with a large, 5 inch screen. State-of-the-art technology is enclosed in a miniature size.

Lightweight

A ready to work iScan mini weighs only 1350 grams, which means that even many hours of work will not strain your back.

Optimised Workflow

All the necessary functions are always within reach. Programmable function keys, which we designed based on conversations with many specialists, provide this. You can adapt the keys to your needs.

Automatic Follicle Measurement

Rapid and precise measurement you can rely on. You no longer need to wonder at what location the largest dimension of the follicle is located. iScan mini will do this for you.

Wireless Communication

An interesting case? Or maybe an ambiguous image? Share an image or consult a colleague. Now sharing images and cine loops is fast and easy. All of this thanks to the built-in WiFi antenna and new, free app for Android mobile devices.

Clearer Images

LuciD is a function which reduces noise in the image and improves the clarity of the image.

Screen and Goggles

Use a built-in screen or OLED goggles — it’s up to you! The image will always be clear and contrasted.

Warranty

24 months for the ultrasound scanner
6 months for the battery

Additional Equipment

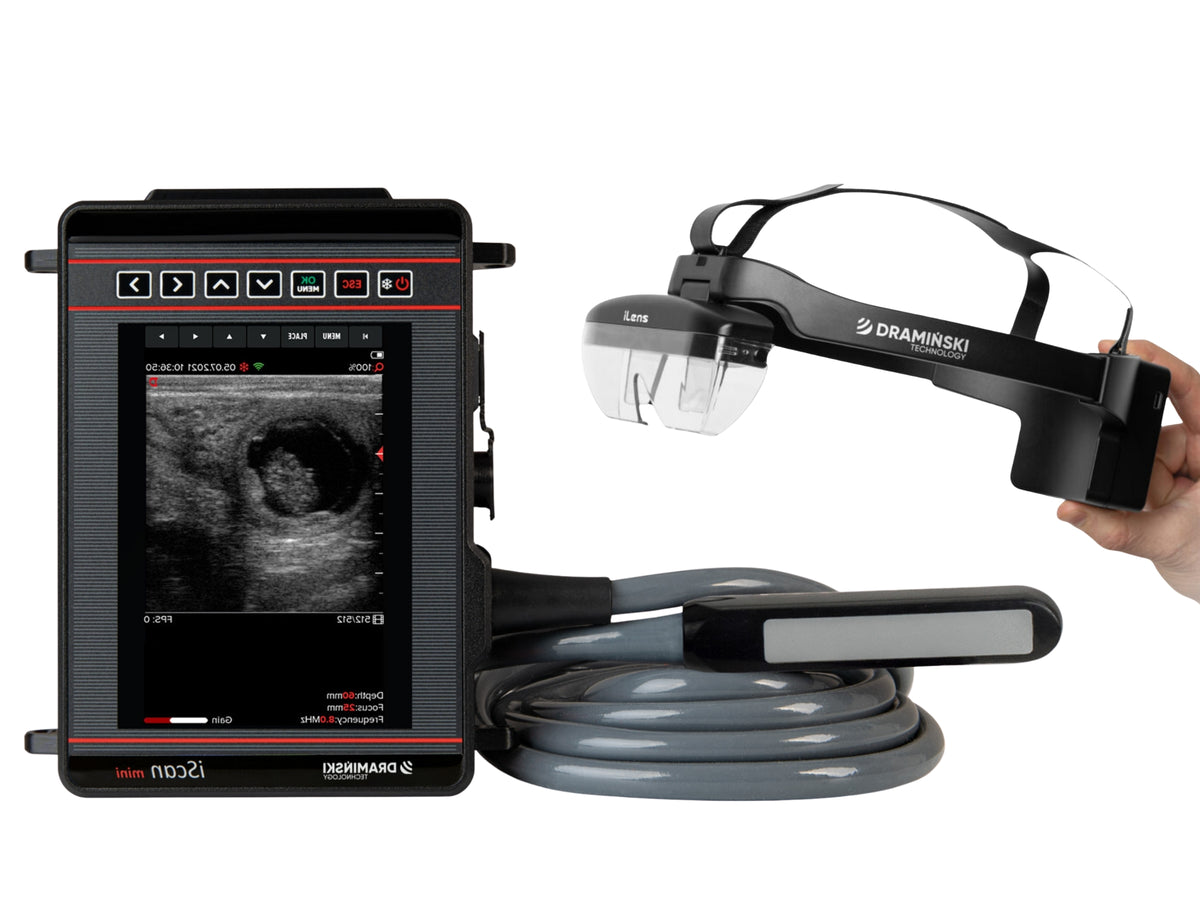

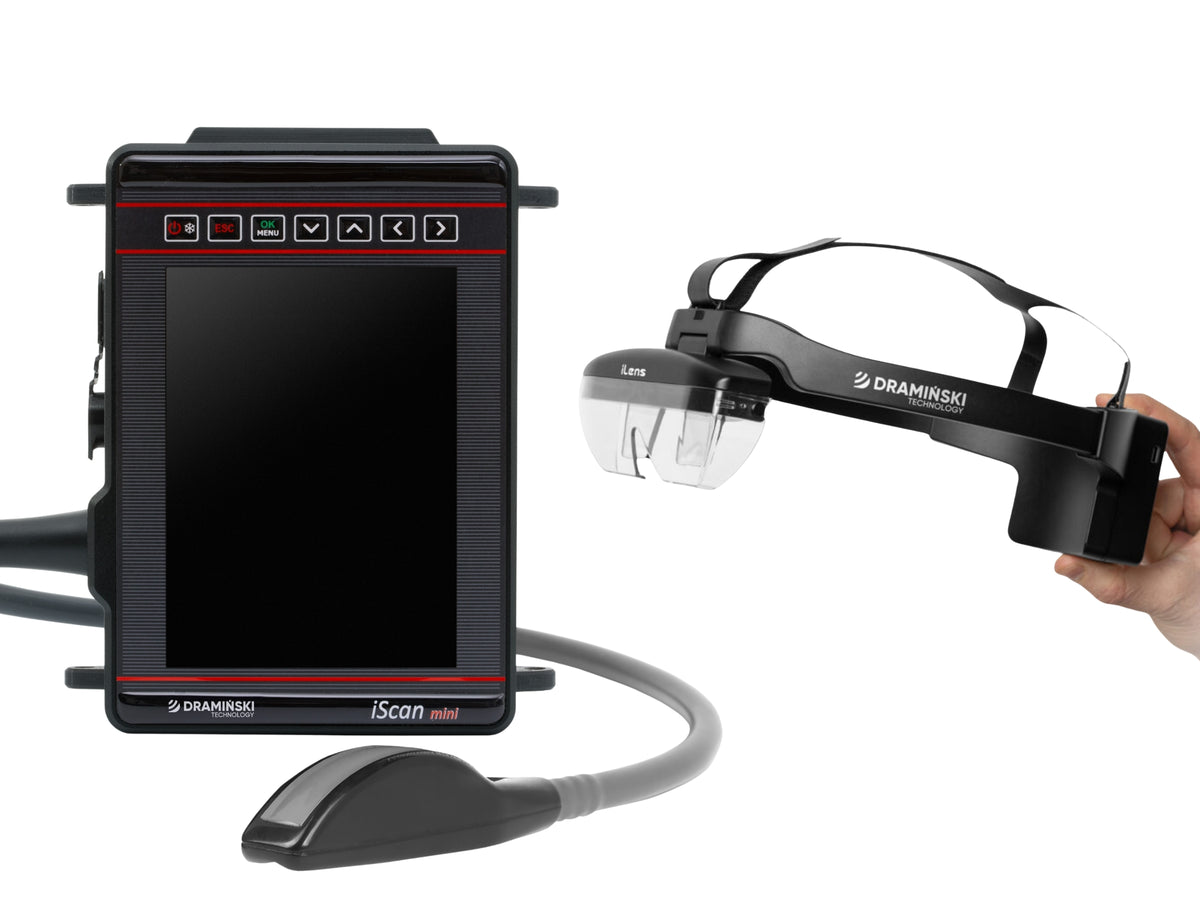

iLens wireless goggles
Linear rectal probe extension for cattle
Linear rectal probe extension for sheep

What’s Included:

Ultrasound scanner with a linear rectal probe
External battery x2
Battery charger with a 230 V charging cable

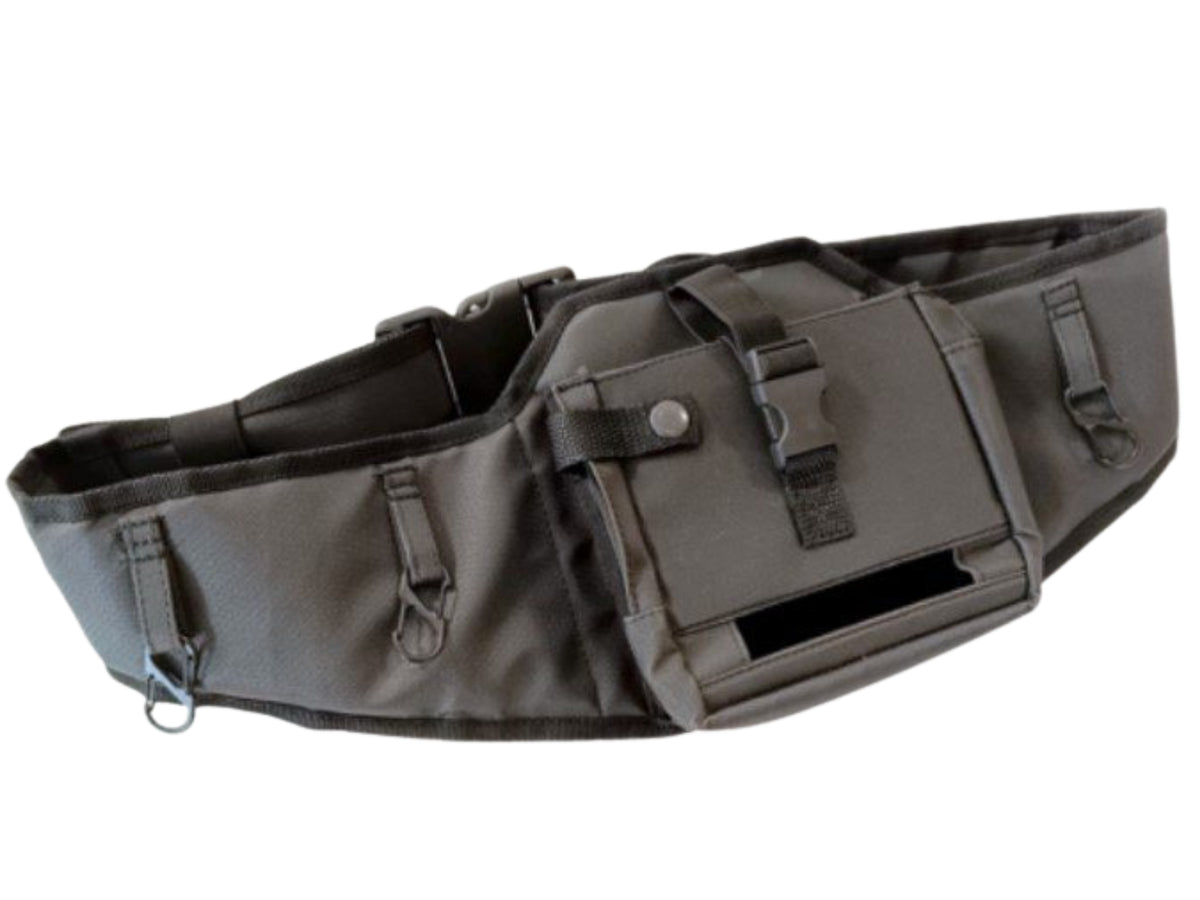

Carrying belts

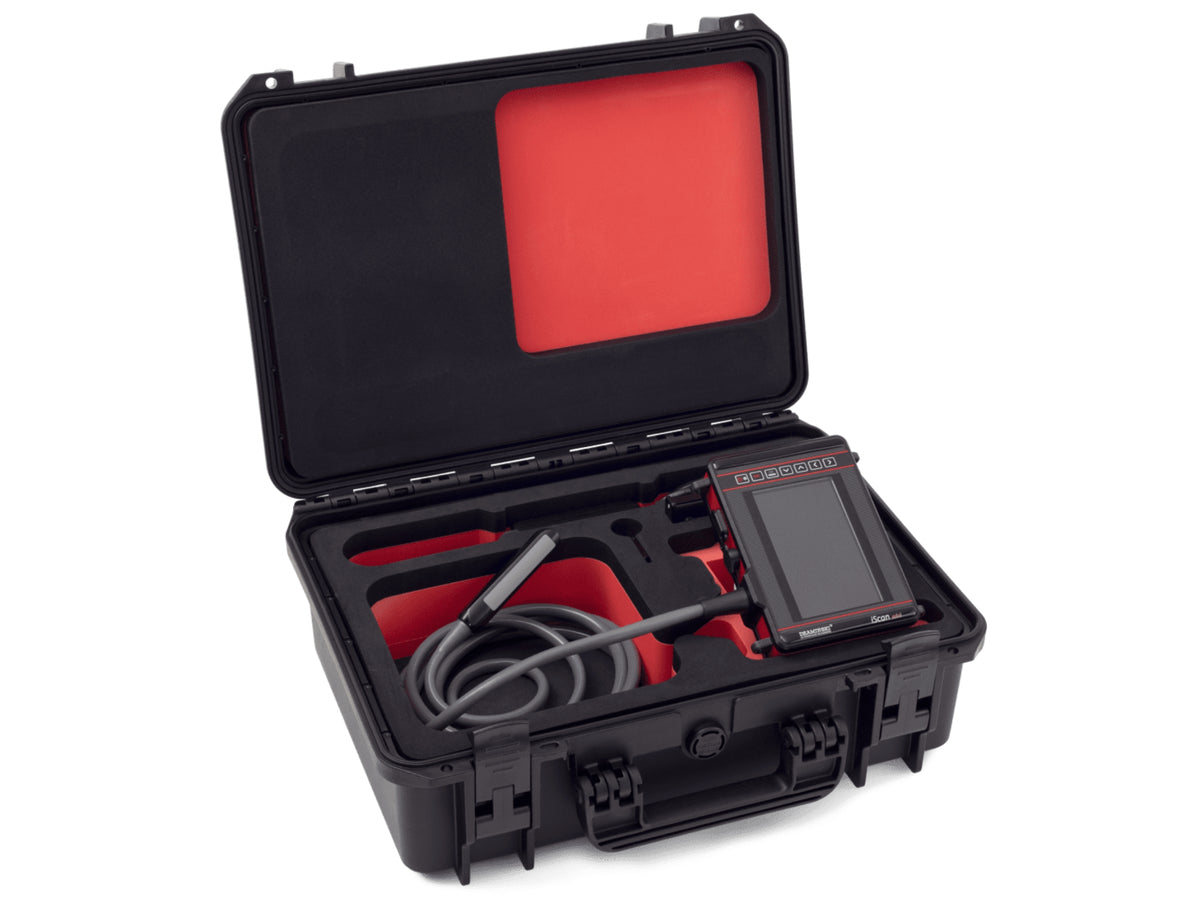

Transport case
User guide on a USB drive

Technical Data

Dimensions: 140 × 170 × 52 mm
Device Weight: 1350 g (with probe & battery)
Battery Weight: 292 g
Purpose: Reproductive exams, pregnancy confirmation/monitoring, foetus sexing, foetus age, backfat measurement, lung exams, other uses allowed
Display Modes: Screen, goggles, 90° rotation, 180° rotation
Greyscale: 256 shades
Gamma: 10 levels
Screen: 5.0", IPS LCD LED, 500 cd/m², 480 × 800 px
Probe: Electronic broadband, 7 MHz, 60 mm, permanent connection
Keyboard: Membrane, water‑resistant
Imaging Modes: B Mode, B+B Mode
Image Management: Freeze, dimensioning, zoom 100–160%, internal memory, USB export, WiFi export
Measurements: Distance, automatic follicle, area (2‑point)
Memory: 200 images, 200 cine loops (max 512 frames each)
Data Transfer: USB‑C, WiFi (Draminski App)
Presets: User‑created
Power Supply: Li‑Ion 14.4 V, 2.25 Ah
Runtime: Up to 3h 40m
Charging Time: 3 hours
Battery Indicator: Automatic graphic indicator
Protection: IP32 (objects >2.5 mm, dripping water up to 15°)
Operating Temp: 0°C to +40°C
Storage Temp: From 0°C
