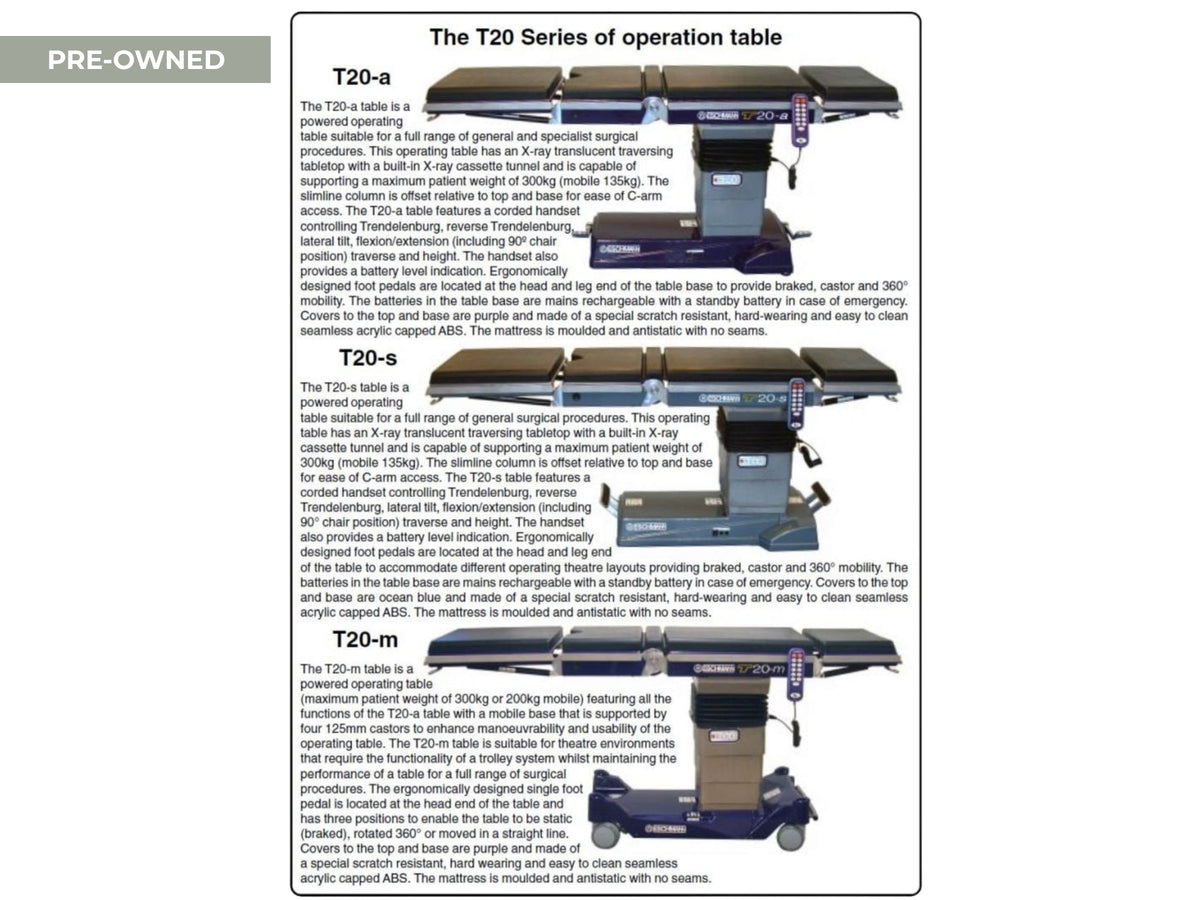

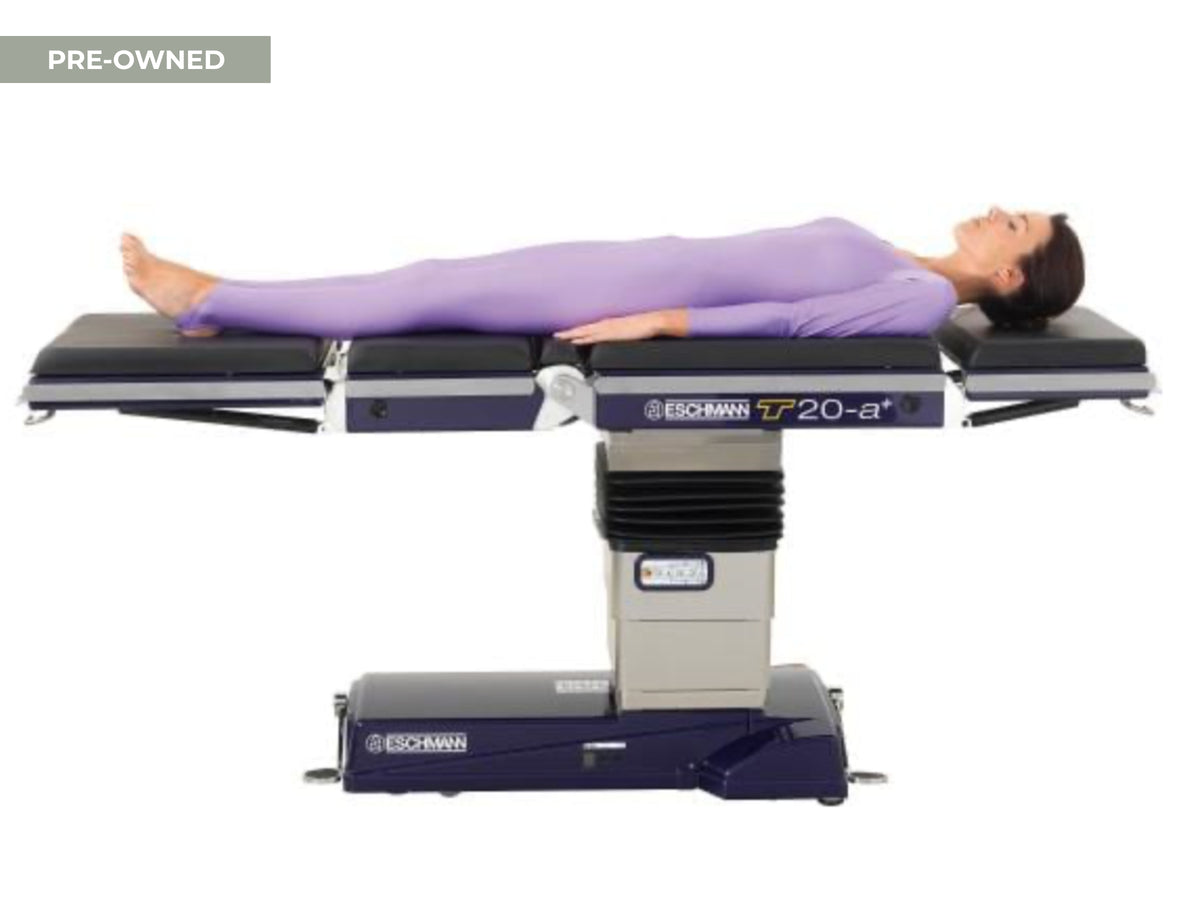

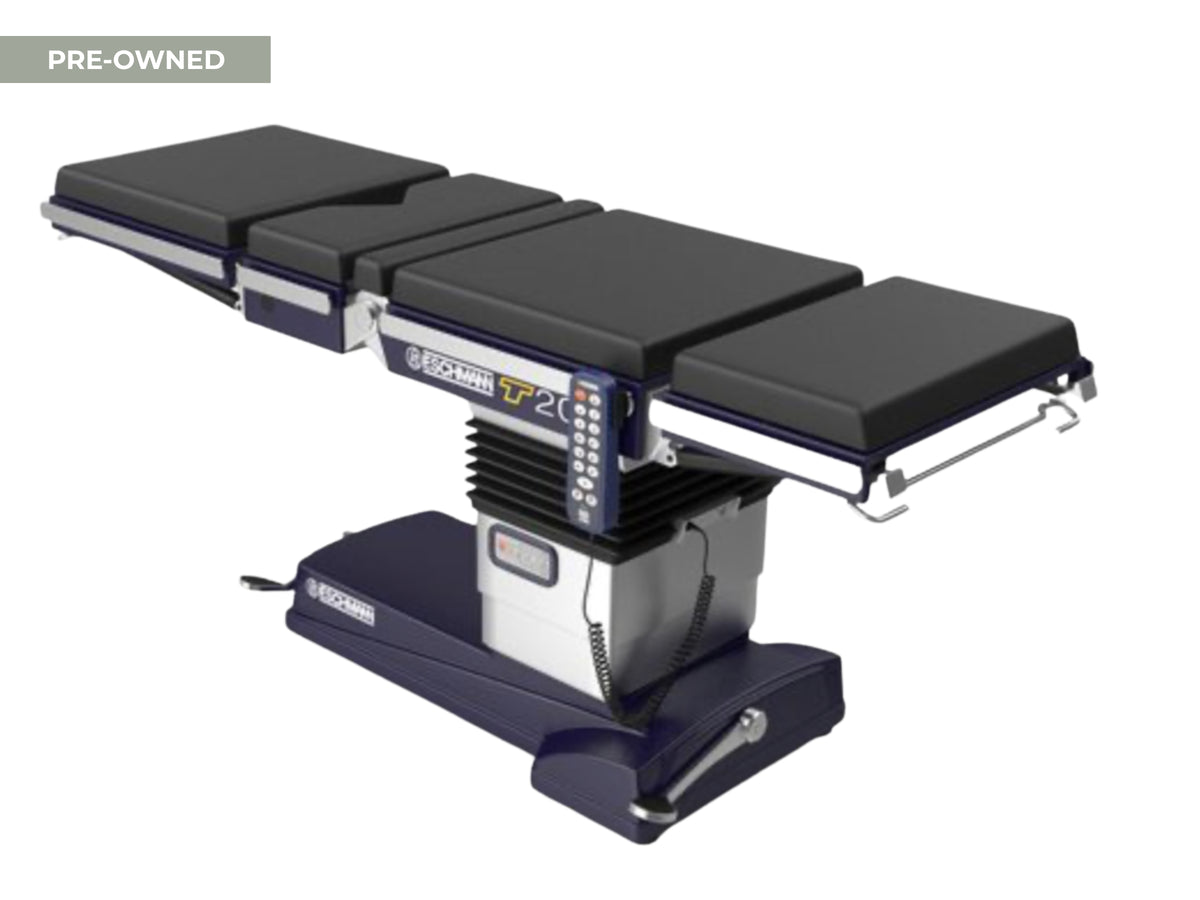

The Eschmann T20 Series is a battery‑powered, mobile, general‑purpose operating table designed for versatility, reliability, and exceptional imaging access. With a 250 mm traversing radiolucent tabletop, the T20 supports a wide range of general and specialist surgical procedures. Its lightweight, colour‑coded handset is intuitive to use and can be secured to the sidebars or head/leg section, complete with a battery status indicator for both main and backup power.
A standby control panel located on the column ensures full functionality even in the event of handset loss or battery failure, providing complete operational security.
Key Features
-
Powered operating table with 250 mm traversing top
-
300 kg maximum patient weight
-
Full‑length radiolucent tabletop with integral X‑ray cassette tunnel (accessible from either end)
-
Corded handset controlling:
-

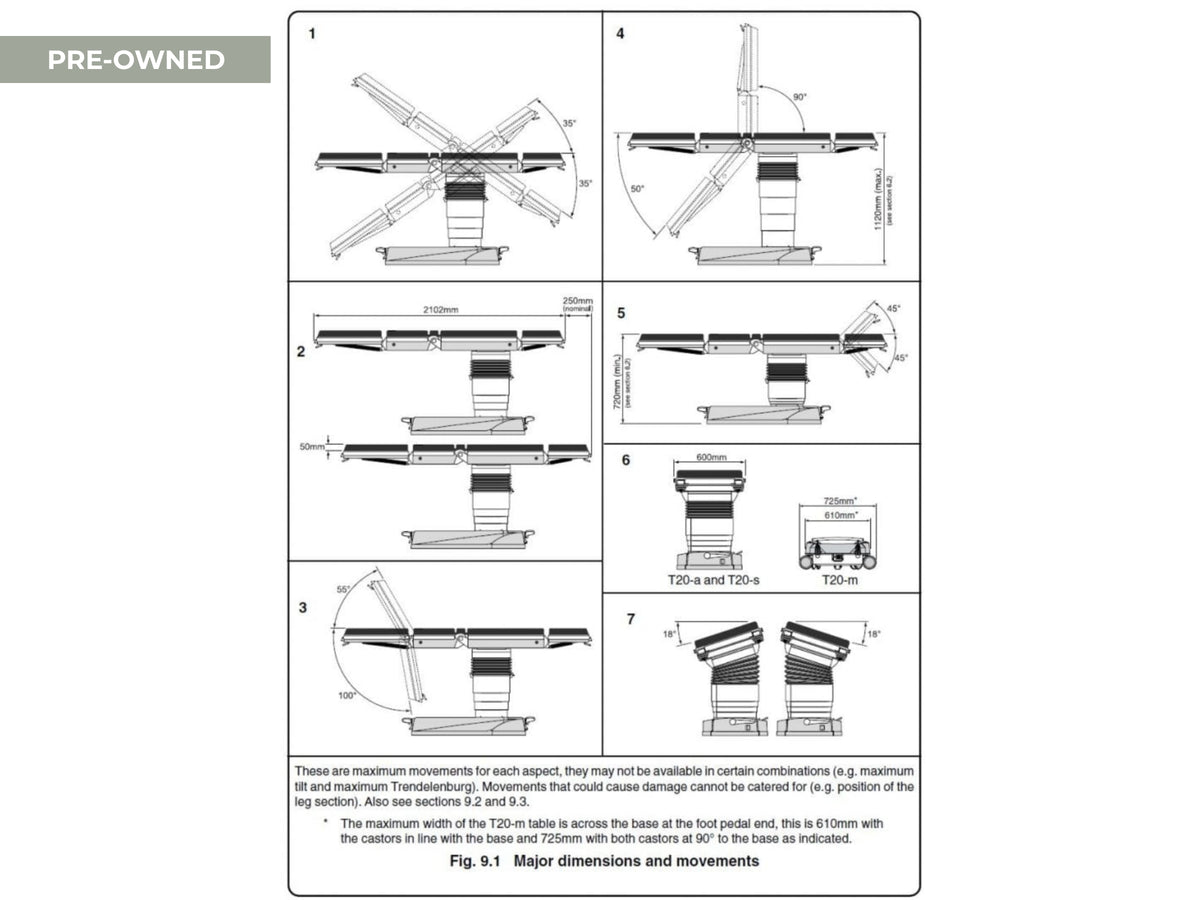

Trendelenburg & reverse Trendelenburg
-
Lateral tilt
-
Flexion/extension (including 90° chair position)
-
Traverse
-
Height adjustment
-
-
Soft start/stop motions for patient comfort and safety
-
Pedestal base with foot‑operated controls
-
Head and leg sections are removable, interchangeable, and auto‑locking
-
Offset slimline column for superior imaging access
-
Stainless steel column covers
-

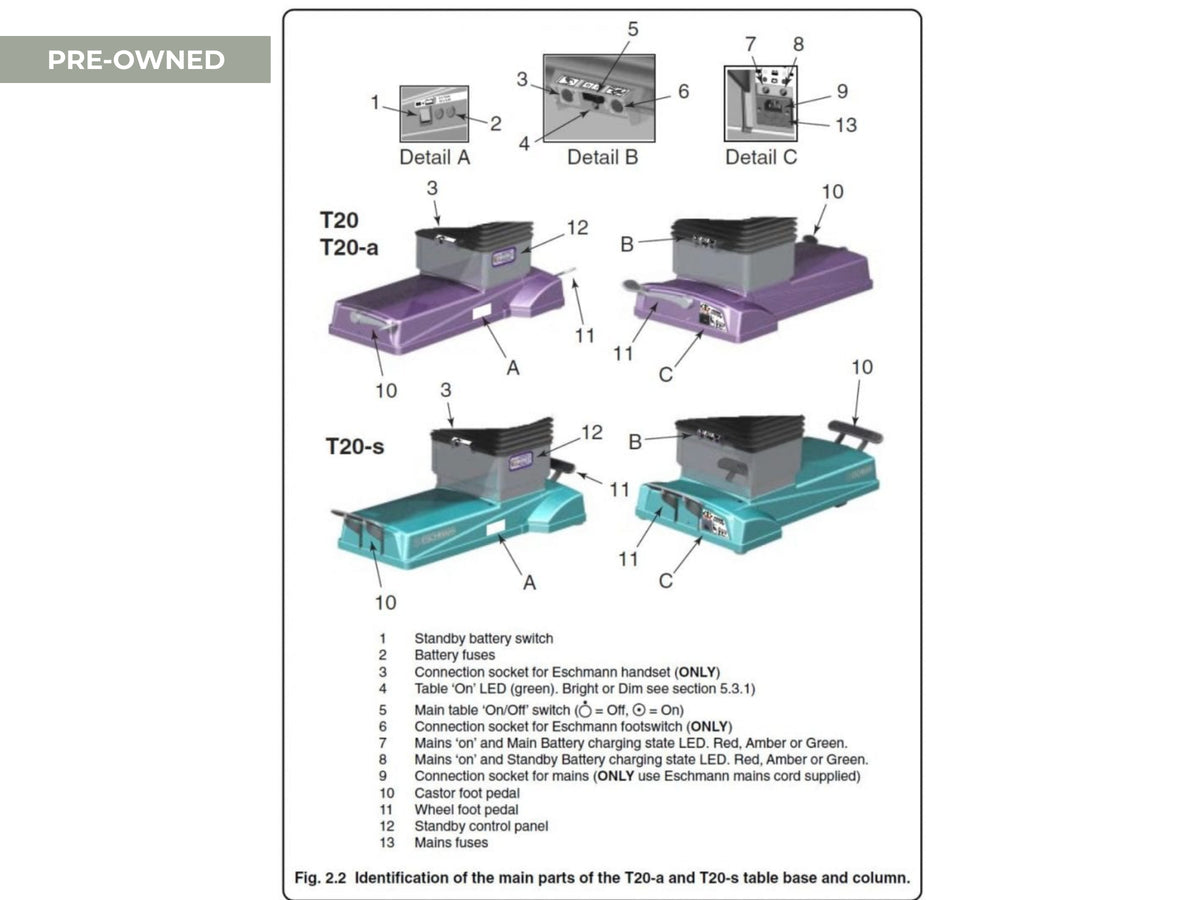

Standby control panel + RS232 port
-
Battery powered, with instant mains connection capability
-
Two foot pedals for brakes, wheels, and castors (360° mobility)
-
Scratch‑resistant acrylic‑capped ABS covers
Base Options
T20‑A & T20‑S Bases
-
Lower, traditional profile
-
Smaller footprint
-
Enclosed multi‑directional castors
-
Two foot pedals for castor, wheel, or braked modes
-
Castors can be engaged at any table height

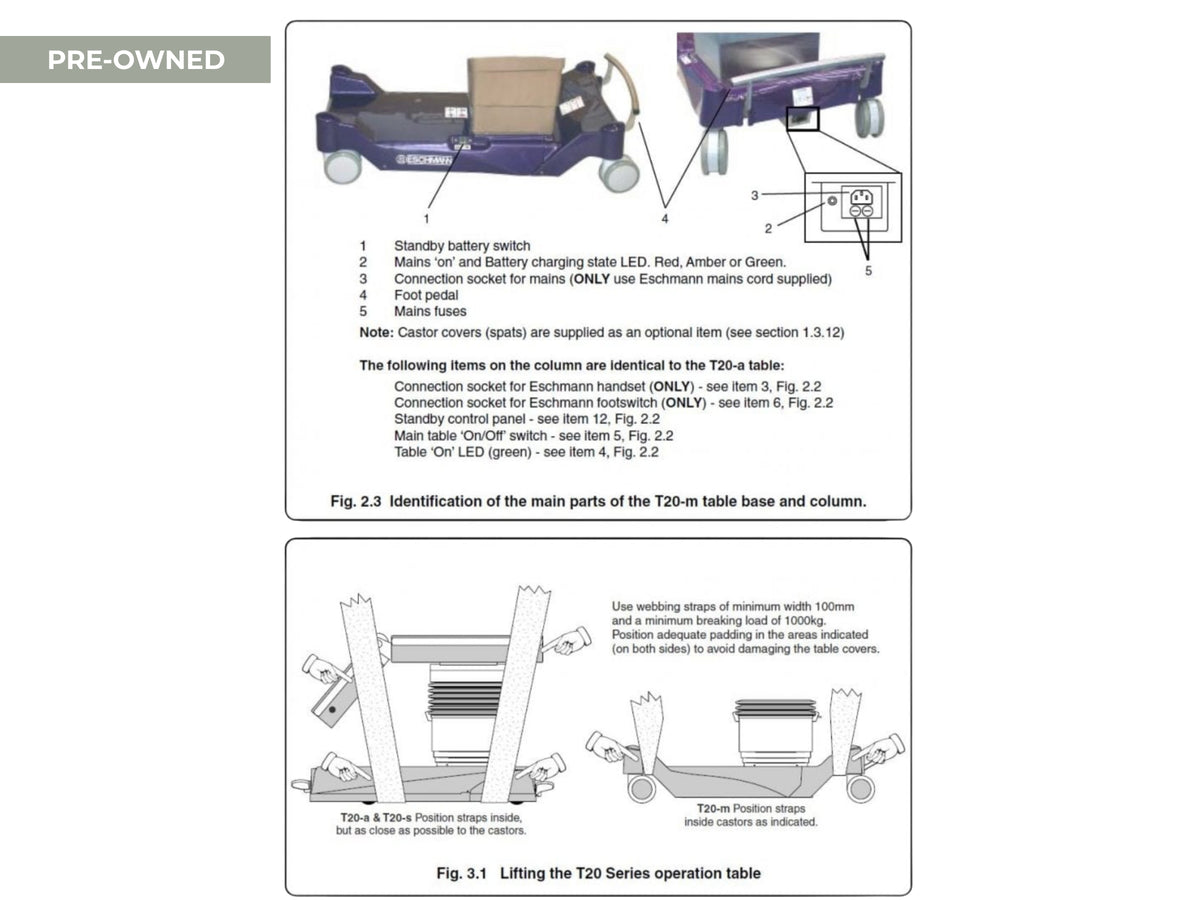

T20‑M Base
-
Large 125 mm castors
-
Easy movement with or without a patient
-
Single foot pedal for wheel, castor, and brake positions
Mattress Information
Mattress not included as standard. Subject to availability, a pre‑owned mattress may be supplied—please check with us before ordering.
We also supply brand‑new mattresses as an added extra. Contact us to discuss your requirements.
Important Information
Due to the nature of pre‑owned equipment, product images shown are for illustration purposes only and may not represent the exact unit available. Please contact us for current stock images.
