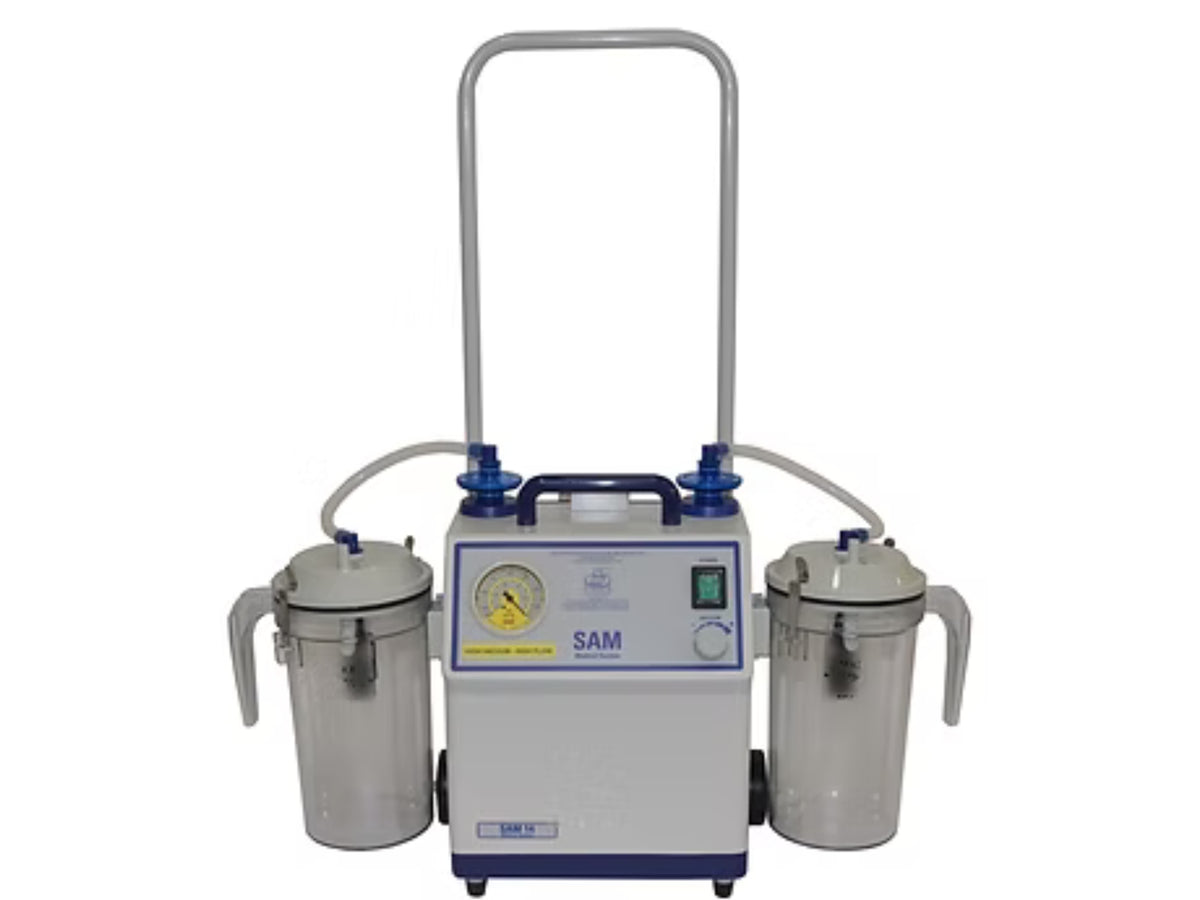

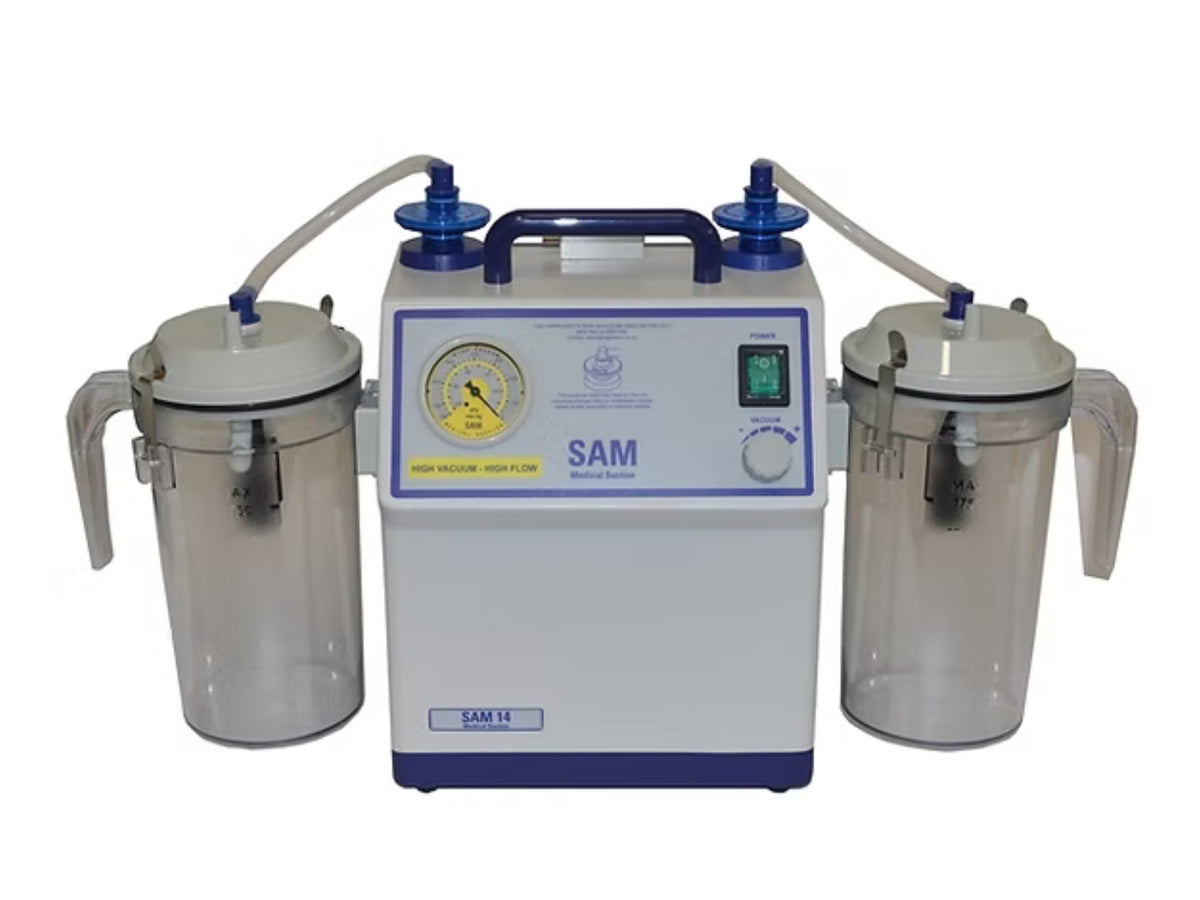

The SAM 14 aspirator is a top-quality, high flow, high vacuum unit. Ideal for use in general wards, accident and emergency, minor operating theatres, intensive care and also as a backup unit for hospitals and dentistry clinics. Its reputation for reliability and ease of operation has established it among the most widely used units in the medical world today.
- At the heart of the unit is our new MG30 oil-free diaphragm vacuum pump that requires minimal maintenance and helps prevent cross-contamination. The MG30 also benefits from an enclosed crankcase for quiet operation, IP44 totally enclosed fan-cooled (TEFC) permanent capacitor motor with long life sealed bearings and thermal protection.
- As standard, the SAM 14 is fitted with 2 autoclaveable SAM 2 collection jars fitted with a float valve system, providing automatic shut-off to avoid overflow. The easy-to-use change-over valve allows the operator to switch to the second jar when the first is full, providing smooth and uninterrupted suction. Other safety features include an internal hydrophobic filter to minimise the risk of contamination, as well as providing a further level of protection to the pump.
- The SAM 14 can be fitted with a choice of disposable collection systems, including Serres, Abbott, VacSax and Pennine. Other disposable collection systems can also be offered on request.
- The unit has 2 disposable bacterial filters mounted externally on top to provide a barrier for the patient and these can also be upgraded to our external hydrophobic filter if further protection is required.
Product Features
- Mains: 220/240v
- Vac: 0-650mmHg
- Flow Rate: 30lt/min
- Weight: 11kg
- Noise Level: 65dB
What is included:
- SAM 12 static unit, supplied with 1 x 2L SAM Autoclavable Collection Jar as standard
-
The warranty is 12 months as standard. We offer a year’s extended warranty if the SAM unit is registered within 30 days of purchase.
