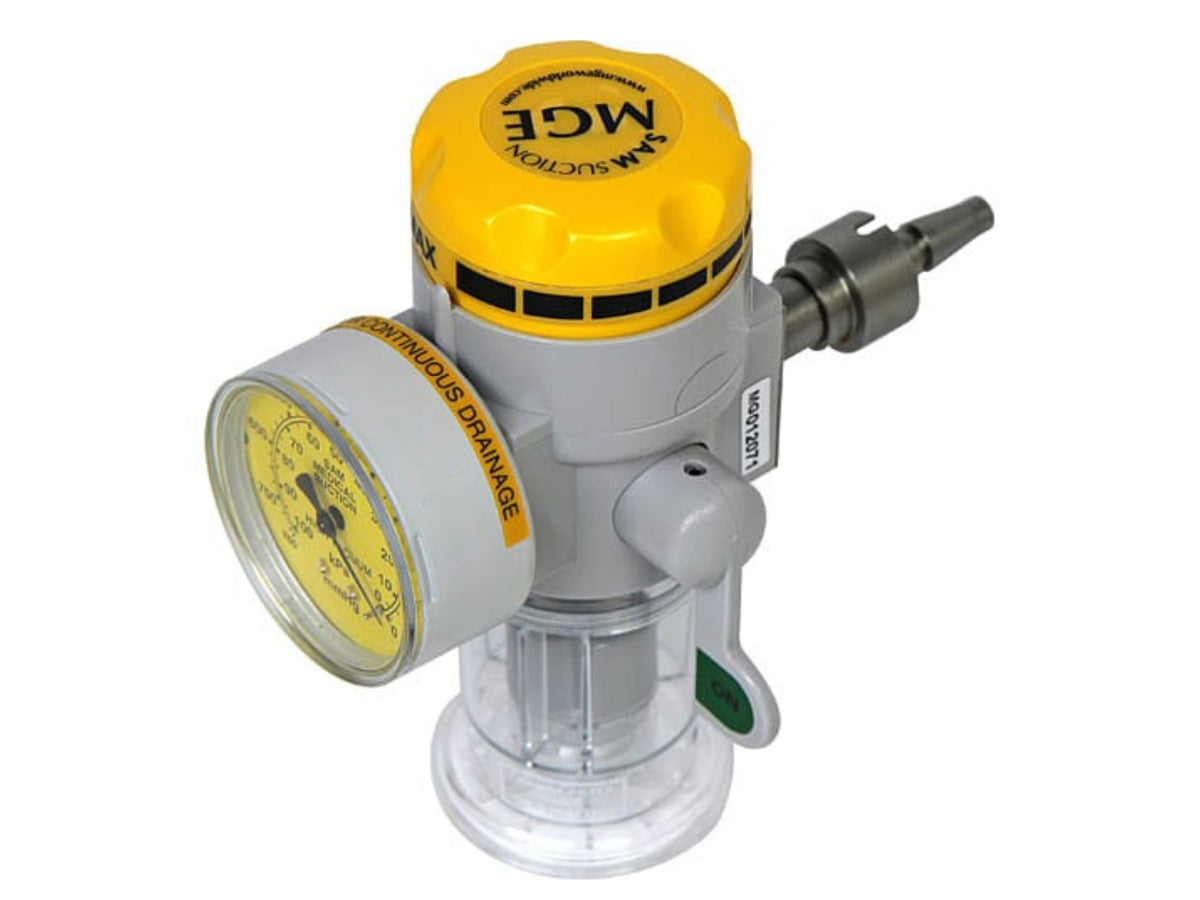

The SAM 51 pipeline regulator is a compact, lightweight and highly versatile suction controller designed for direct connection to central vacuum pipeline systems in both veterinary and human medical facilities. Fitted with a direct vacuum probe, the unit plugs straight into a wall port for immediate use, providing fully variable suction via a simple twist‑control knob.
Each unit includes a stainless steel probe to BS 5682, making it compatible with BOC / Ohmeda wall‑mounted suction outlets. Additional probe types—including AFNOR, DIN, UNI and BS—are available on request.
The SAM 51 incorporates essential safety features such as a hydrophobic filter and pressure relief valves, protecting patients and equipment from contamination or pipeline faults. A clear red/green shut‑off lever ensures quick visual confirmation of operational status.
SAM 51 – Key Features
-
High‑flow, high‑vacuum performance
-
Fully variable suction: 0–760 mmHg / 0–100 kPa
-
Flow rate: 40 L/min
-
Direct wall‑mounted design
-
Stainless steel BS 5682 probe (BOC / Ohmeda compatible)
-
Red/green shut‑off lever for instant visibility
-
Built‑in hydrophobic filter and pressure relief valves
-
Lightweight: 0.70 kg
-
Dimensions (H × W × D): 20 × 9 × 18 cm
-
Compatible with central vacuum pipeline systems
