Abdominal Convex Probe (156)
Pregnancy diagnostics in sheep and goats. Abdomen and thorax of cattle and horses. Umbilical region in calves.
- Frequency range: 2.0 – 8.0 MHz
- Central frequency: 5.0 MHz
- Scanning depth: 60 – 300 mm
- Lens radius: 50 mm
- Number of crystals: 128
- Compatible with: BLUE, 4VetSlim, iScan 2 MULTI, iScan 3
Abdominal Convex Probe (172)
Pregnancy diagnostics in sheep and goats. Abdomen and thorax of cattle and horses. Horse musculoskeletal system. Umbilical region in calves.
- Frequency range: 1.0 – 6.0 MHz
- Central frequency: 3.5 MHz
- Scanning depth: 80 – 350 mm
- Lens radius: 60 mm
- Number of crystals: 128
- Compatible with: BLUE, 4VetSlim, iScan 2 MULTI
Abdominal Convex Probe (182)
Pregnancy diagnostics in sheep and goats. Abdomen and thorax of cattle and horses. Horse musculoskeletal system. Umbilical region in calves.
- Frequency range: 2.0 – 5.0 MHz
- Central frequency: 3.5 MHz
- Scanning depth: 60 – 350 mm
- Lens radius: 60 mm
- Number of crystals: 128
- Compatible with: BLUE, 4VetSlim, iScan 2 MULTI

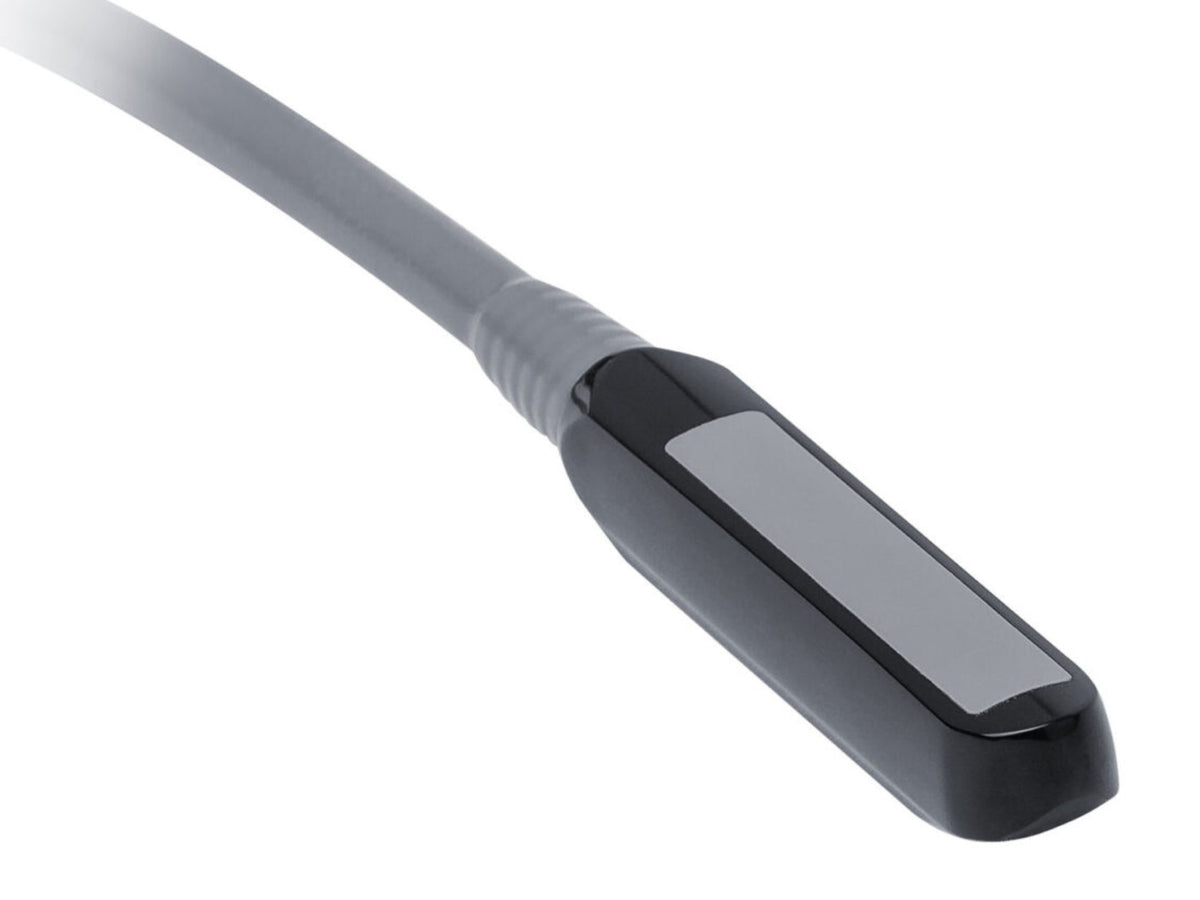

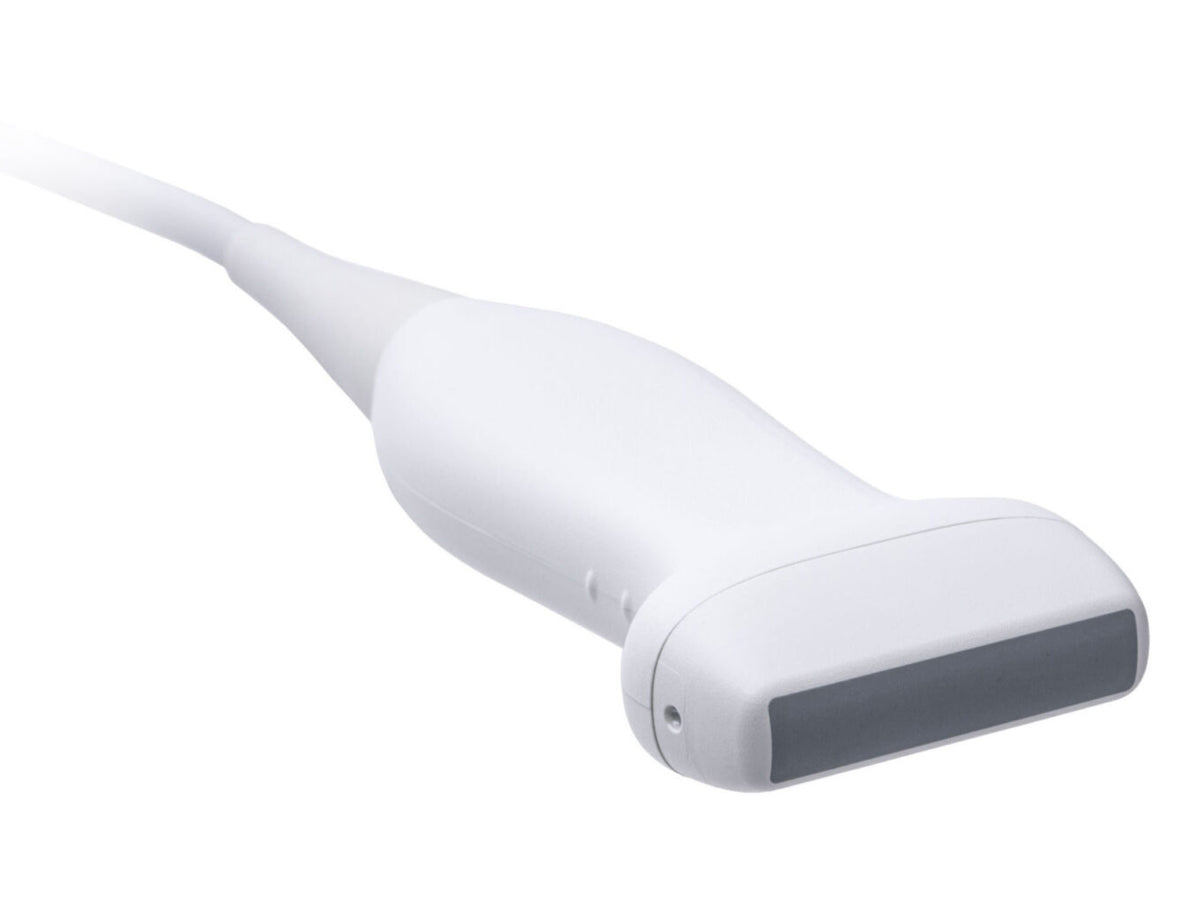

Abdominal Linear Probe (171)
Tendons examination in horses. Lung and abdomen examination of small animals.
- Frequency range: 6.0 – 14.0 MHz
- Central frequency: 10.0 MHz
- Scanning depth: 40 – 100 mm
- Probe face length: 40 mm
- Number of crystals: 128
- Compatible with: BLUE, 4VetSlim, iScan 2 MULTI
Abdominal Microconvex Probe (195)
Abdominal examination, AFAST, TFAST in dogs and cats. Horse musculoskeletal system. Pregnancy diagnosis in sheep and goats.
- Frequency range: 4.0 – 9.0 MHz
- Central frequency: 6.5 MHz
- Scanning depth: 40 – 150 mm
- Lens radius: 15 mm
- Number of crystals: 128
- Compatible with: BLUE, 4VetSlim, iScan 2 MULTI
Backfat Probe (174)
Examination of the backfat and loin muscle thickness in pigs.
- Frequency range: 2.0 – 5.0 MHz
- Central frequency: 3.7 MHz
- Scanning depth: 60 – 300 mm
- Probe face length: 147 mm
- Number of crystals: 128
- Compatible with: BLUE, 4VetSlim, iScan 2 MULTI
Backfat Probe (188/2)
Examination of the thickness of backfat and the longissimus dorsi muscle in beef cows (2.3 m cable).
- Frequency range: 2.0 – 5.0 MHz
- Central frequency: 3.7 MHz
- Scanning depth: 60 – 300 mm
- Probe face length: 180 mm
- Number of crystals: 128
- Compatible with: BLUE, 4VetSlim, iScan 2 MULTI
- Available in a 4m Cable under code 188/4

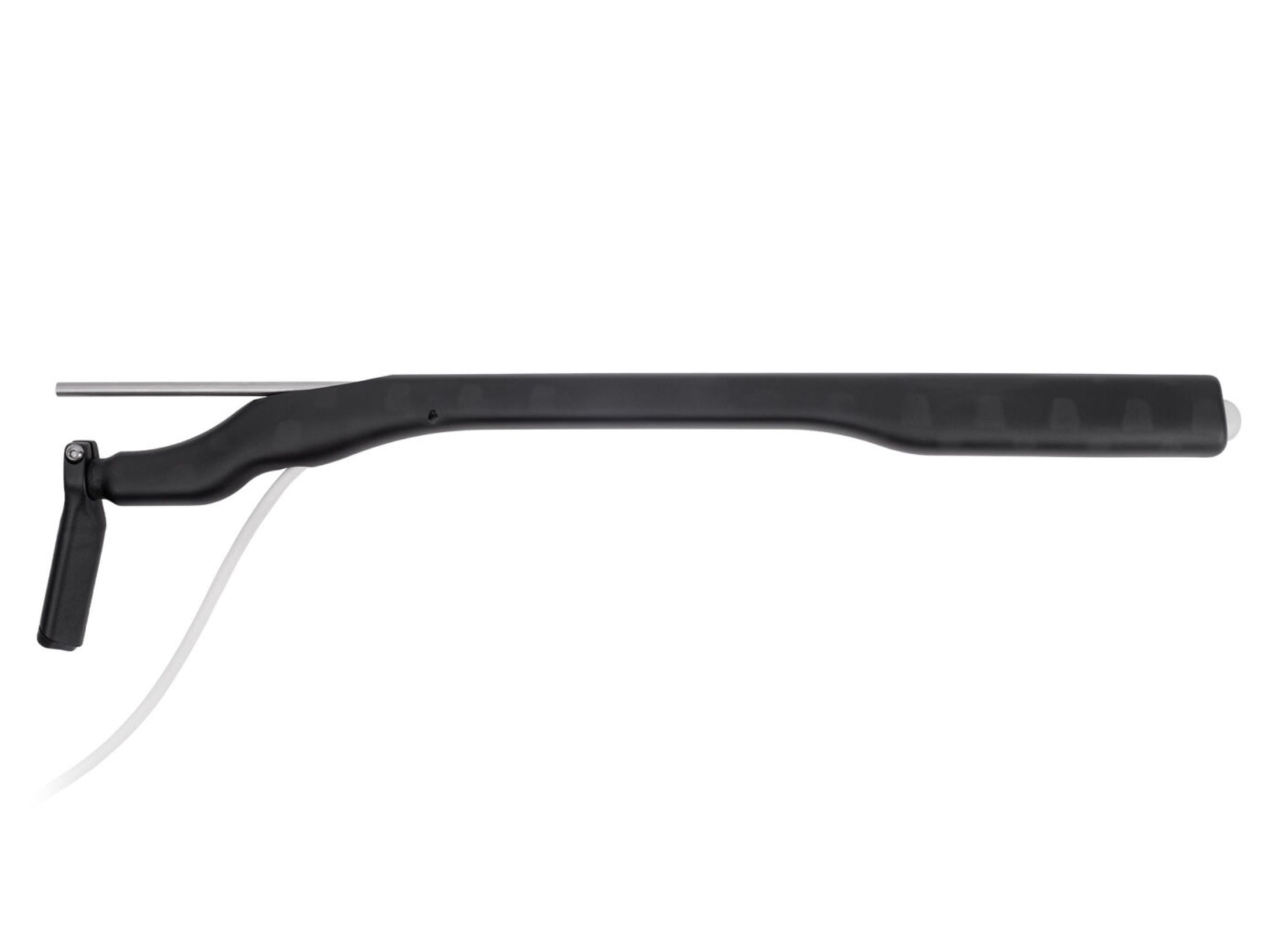

OPU System Handle
OPU procedure set adapted for microconvex probe 181/A.
Dedicated to cattle and horses. Provides comfortable ovarian support in multiparous.
It has adapters for injection needles and specialist needles for OPU. Compatible with 12G needles.
- Length: 62.5 cm
- Width at the probe end: 3 cm
- Height at the probe end: 4.4 cm
- Weight (without probe): 0.7 kg
- Features: magnets for easy folding, only 4 mounting screws
- Compatible probe: 181/A
- Probe included: NO
OPU Microconvex Probe (181/A)
Probe compatible with OPU System (3.0 m cable).
- Frequency range: 4.0 – 9.0 MHz
- Central frequency: 6.5 MHz
- Scanning depth: 30 – 150 mm
- Lens radius: 11 mm
- Number of crystals: 128
- Compatible with: OPU Handle, BLUE, 4VetSlim, iScan 2 MULTI, iScan 3

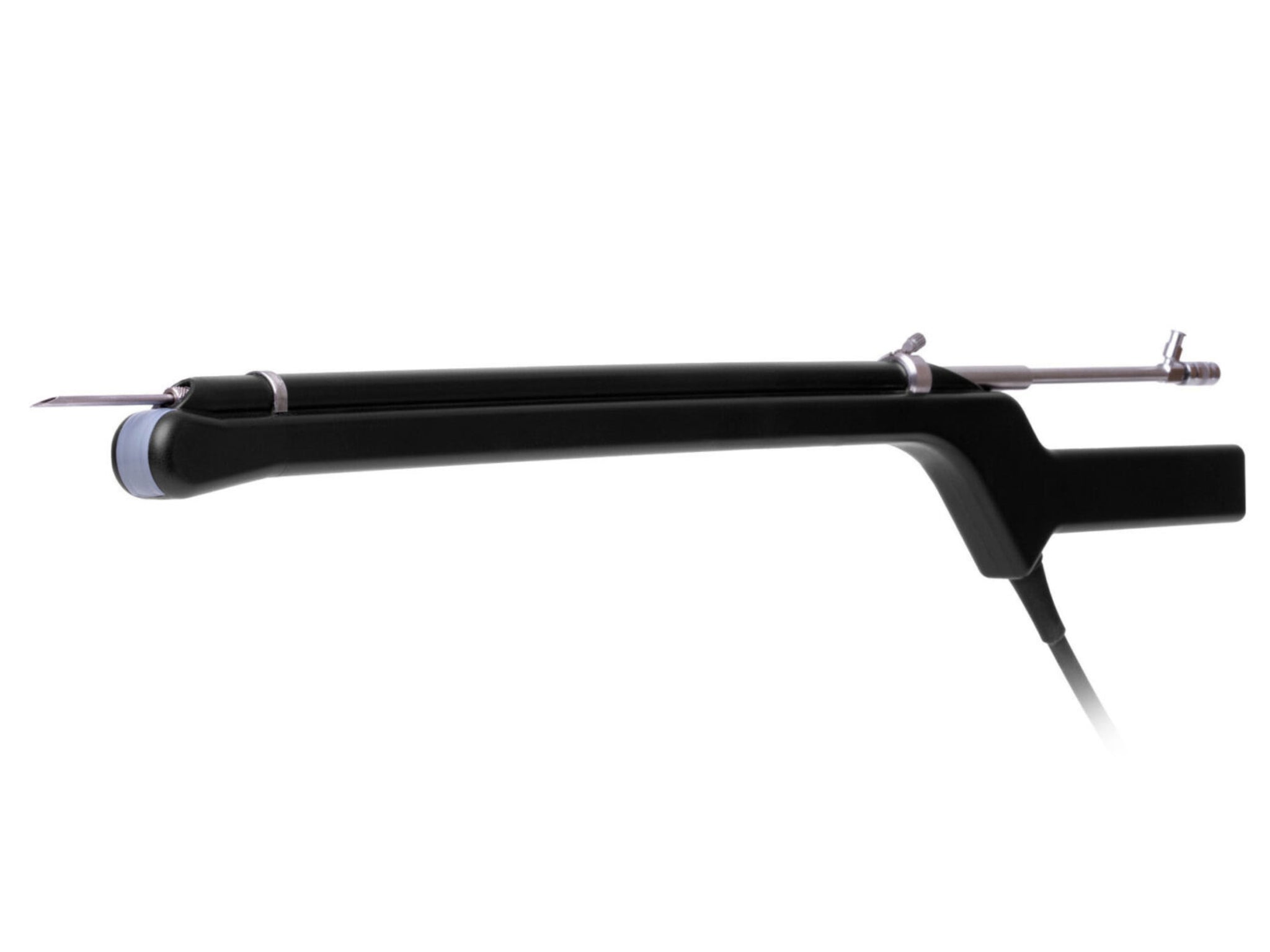

OPU Monoblock
OPU procedure set with built-in probe. Especially recommended for working with heifers. It has adapters for injection needles and specialist needles for OPU. Compatible with 12G needles.
- Length: 61dcm
- Width at the probe end: 2.1 cm
- Height at the probe end: 3 cm
- Weight: 0.765 kg
- Compatible with: BLUE, 4VetSlim, iScan 2 MULTI

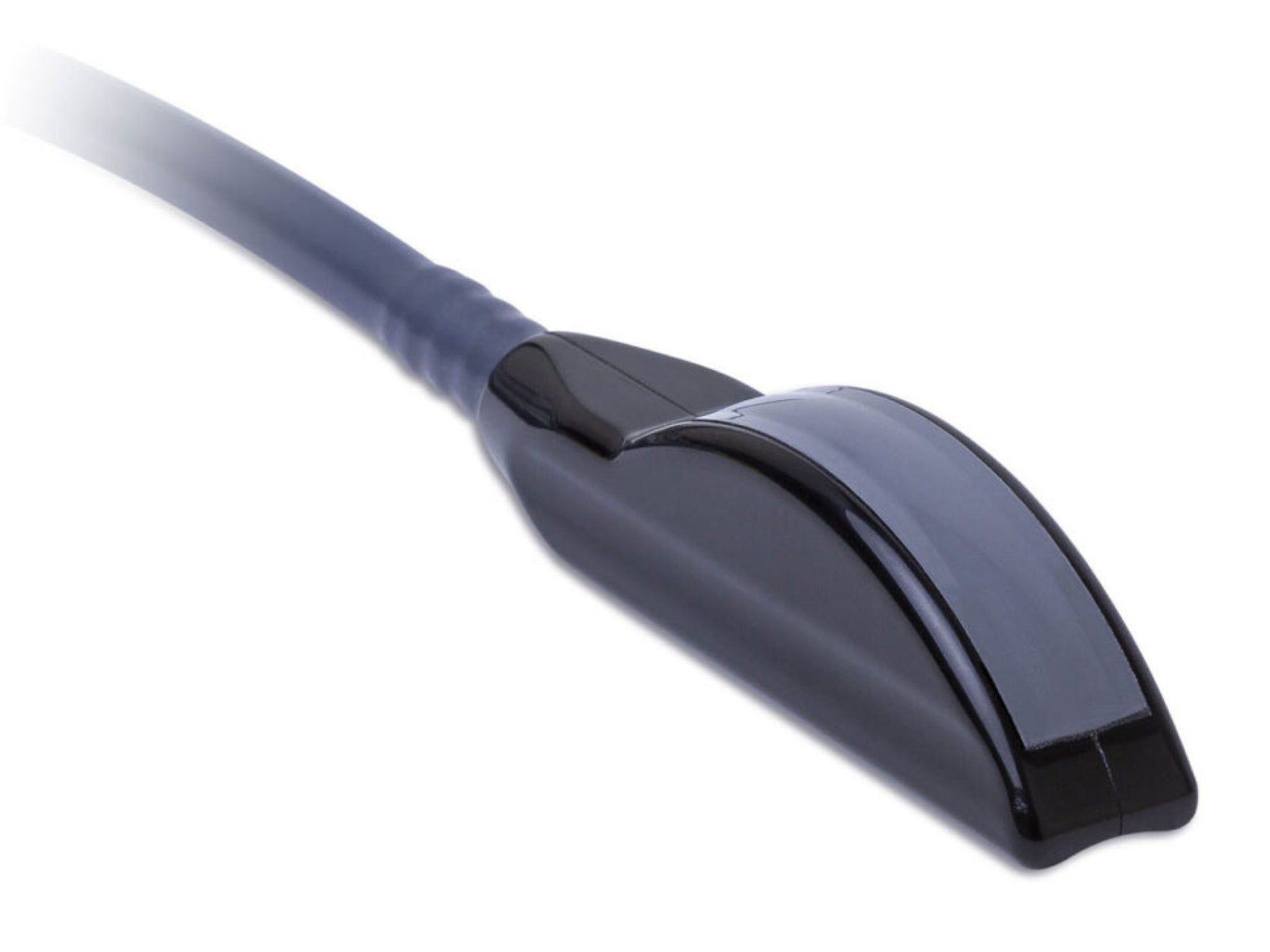

Rectal Convex Probe (212)
Examination of the reproductive system of cattle and horses: diagnosis and monitoring of pregnancy, determination of fetal viability and sex. Examination of the lungs and udders. Diagnosis of pregnancy in sheep and goats by abdominal examination. Examination of the abdominal organs.
- Frequency range: 2.0 – 8.0 MHz
- Central frequency: 5.0 MHz
- Scanning depth: 60 – 300 mm
- Lens radius: 60 mm
- Number of crystals: 128
- Compatible with: BLUE, 4VetSlim, iScan 2 MULTI, iScan 3

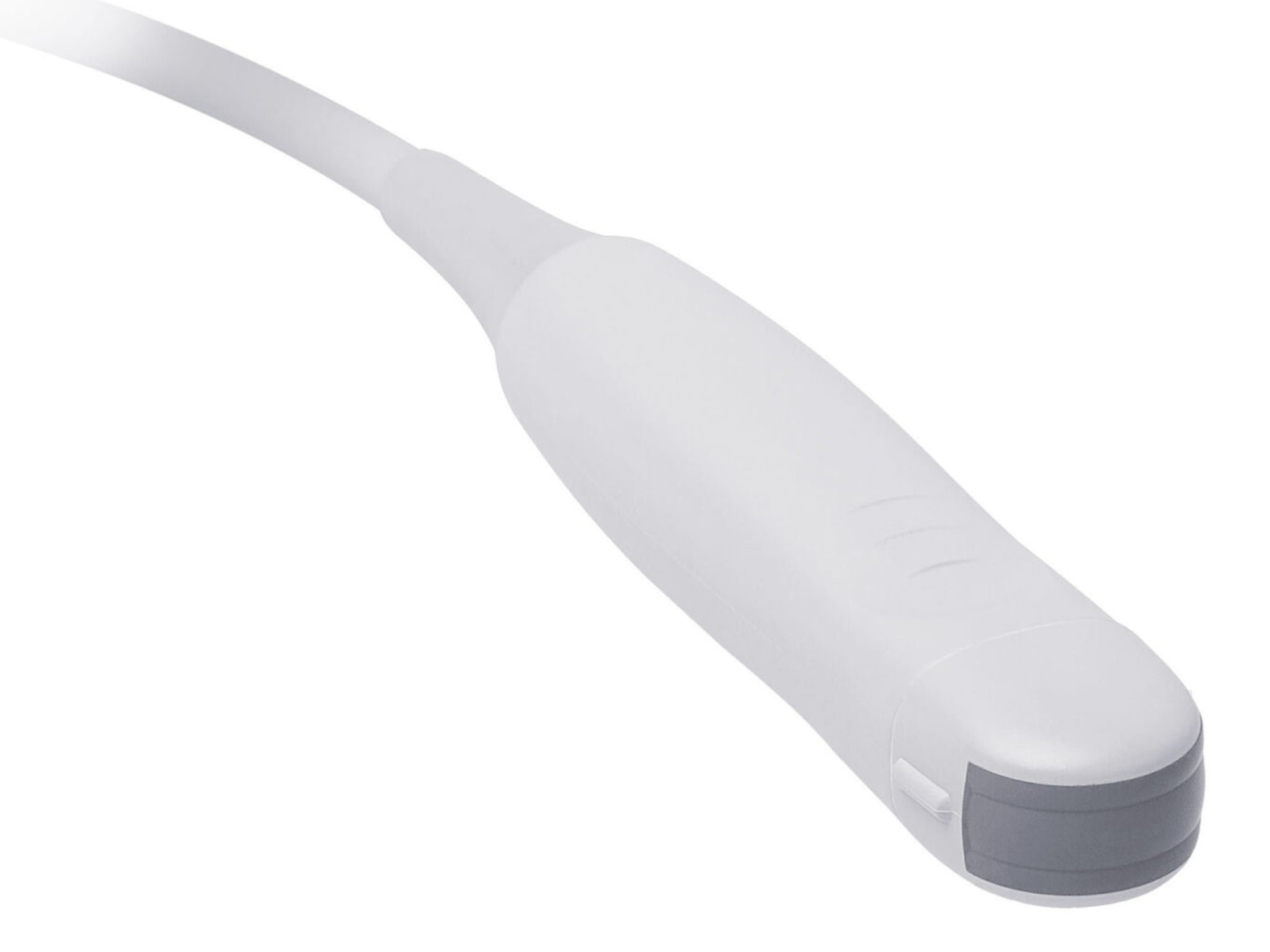

Rectal Linear Probe (163)
Examination of the reproductive system of cattle and horses: diagnosis and monitoring of pregnancy, determination of fetal viability and sex. Examination of the lungs and udders.
- Frequency Range: 4.0 – 9.0 MHz
- Central frequency: 7.0 MHz
- Scanning depth: 30 – 150 mm
- Probe face length: 60 mm
- Number of crystals: 128
- Compatible with: BLUE, 4VetSlim, iScan 2 MULTI
Rectal Microconvex P-Probe (192)
Rectal examination of the musculoskeletal system of horses.
- Frequency range: 4.0 – 9.0 MHz
- Central frequency: 5.0 MHz
- Scanning depth: 60 – 300 mm
- Lens radius: 20 mm
- Number of crystals: 128
- Compatible with: BLUE, 4VetSlim, iScan 2 MULTI
