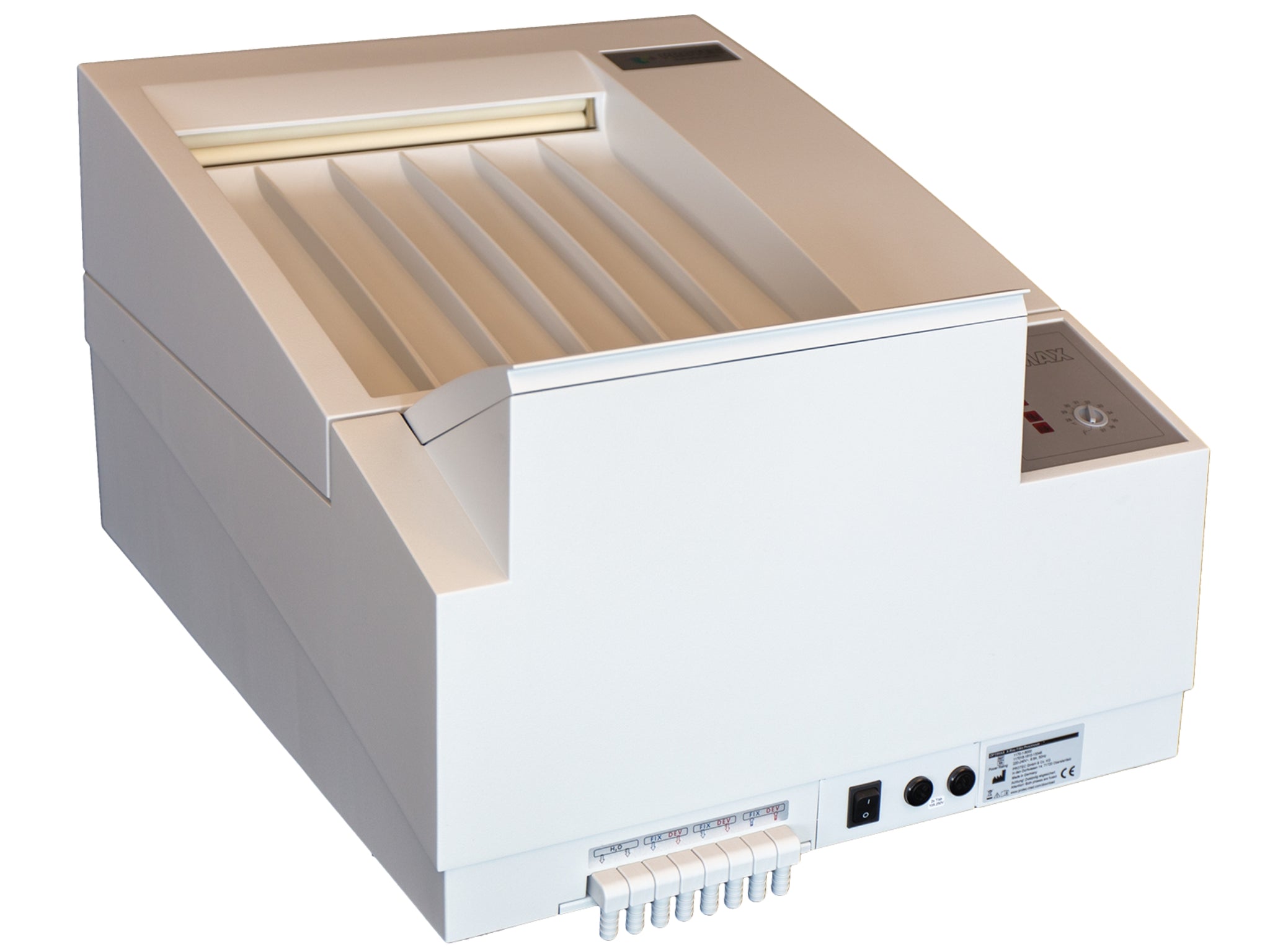

Optimax Wet X-Ray Processor

£8,195.00 GBP - £8,697.00 GBP

Excl VAT 20% - calculated at checkout

The Optimax is the world’s leading 90‑second automatic X‑ray film processor, engineered for clinics that need fast, reliable, and high‑quality film development. Designed as a durable, high‑capacity workhorse, it performs consistently whether your film volume is low or demanding. Its compact tabletop design, intelligent chemical‑saving features, and easy‑access components make it a trusted solution for veterinary and medical practices.

Key Features

Lightweight yet robust tabletop construction
90‑second processing speed for rapid workflow
Energy‑efficient and water‑saving operation
Anti‑oxidation and anti‑crystallisation programs for chemical longevity and superior image quality
All components are easily accessible for maintenance
Front‑panel temperature control
Convenient top film feed and return
Spring‑loaded transport rollers to minimise film jams
High‑quality polyurethane and rubber rollers to prevent artifacts

Product Specifications

Film Size: 4 × 4 in (10 × 10 cm) minimum to 14 × 17 in (35 × 43 cm) maximum; accepts roll film
Processing Time: 90 seconds (factory set), leading edge to leading edge
Developer Temperature: Adjustable 82–99°F (28–37°C)
Replenishment: Adjustable at 450 ml or 600 ml per 10 sq ft (ml/m²); manual pumping option for automatic tank fill
Net Weight: 77 lbs (35 kg) empty / 110 lbs (50 kg) filled
Tank Capacity: 1.3 gallons (5 L) each for developer, fixer, and water
Film Drying: Warm circulated air, factory set to 149°F (65°C)
Chemical Storage: 6.6‑gallon (25 L) tanks; optional 10‑gallon (38 L) tanks
Film & Chemistry: Compatible with standard medical X‑ray film and chemistry formulated for automatic processors

Film Processing Capacity (90‑Second Speed)

10 × 12 in (24 × 30 cm): 129 films per hour
14 × 17 in (35 × 43 cm): 75 films per hour

Minimum Darkroom Requirements

Electrical

115V, 50/60 Hz, 15A service (operating range 110–120V)
230V, 50/60 Hz, 10A service (operating range 220–240V)
Energy use: 1.4 kWh during processing, 0.12 kWh in standby
Dedicated electrical line strongly recommended
Use of multi‑outlet adapters or extension cords voids the warranty

Water

Cold water supply only, 41–78°F (5–26°C)
¾" water connection, 29–145 psi (2–10 bar)
Minimum drain diameter: 2 in (5 cm), max 12 in (30.5 cm) above floor
Water consumption: 0.50 gal/min (1.9 L/min) during processing
No water use in standby
In‑line water filter is recommended for contaminated or particulate water supplies
Drain piping must be cast iron or PVC (no copper)

Space

Dimensions: 30 in (77 cm) L × 23 in (59 cm) W × 16.5 in (42 cm) H
Adequate clearance is required on all sides for operation, maintenance, and service

The Optimax combines speed, durability, and exceptional image consistency, making it an ideal choice for practices seeking a dependable, long‑term film processing solution.

N-XRA-20-10-002
