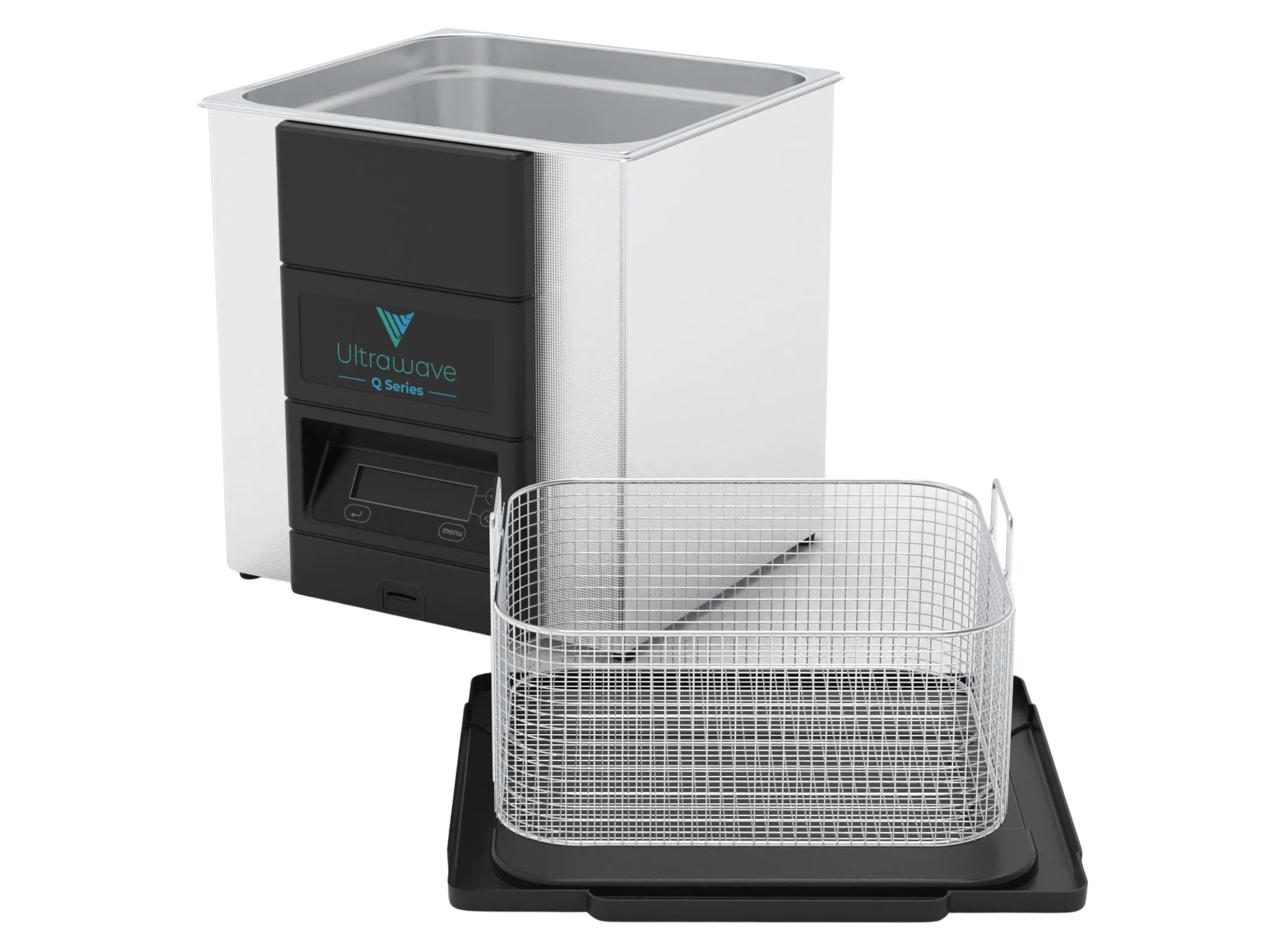

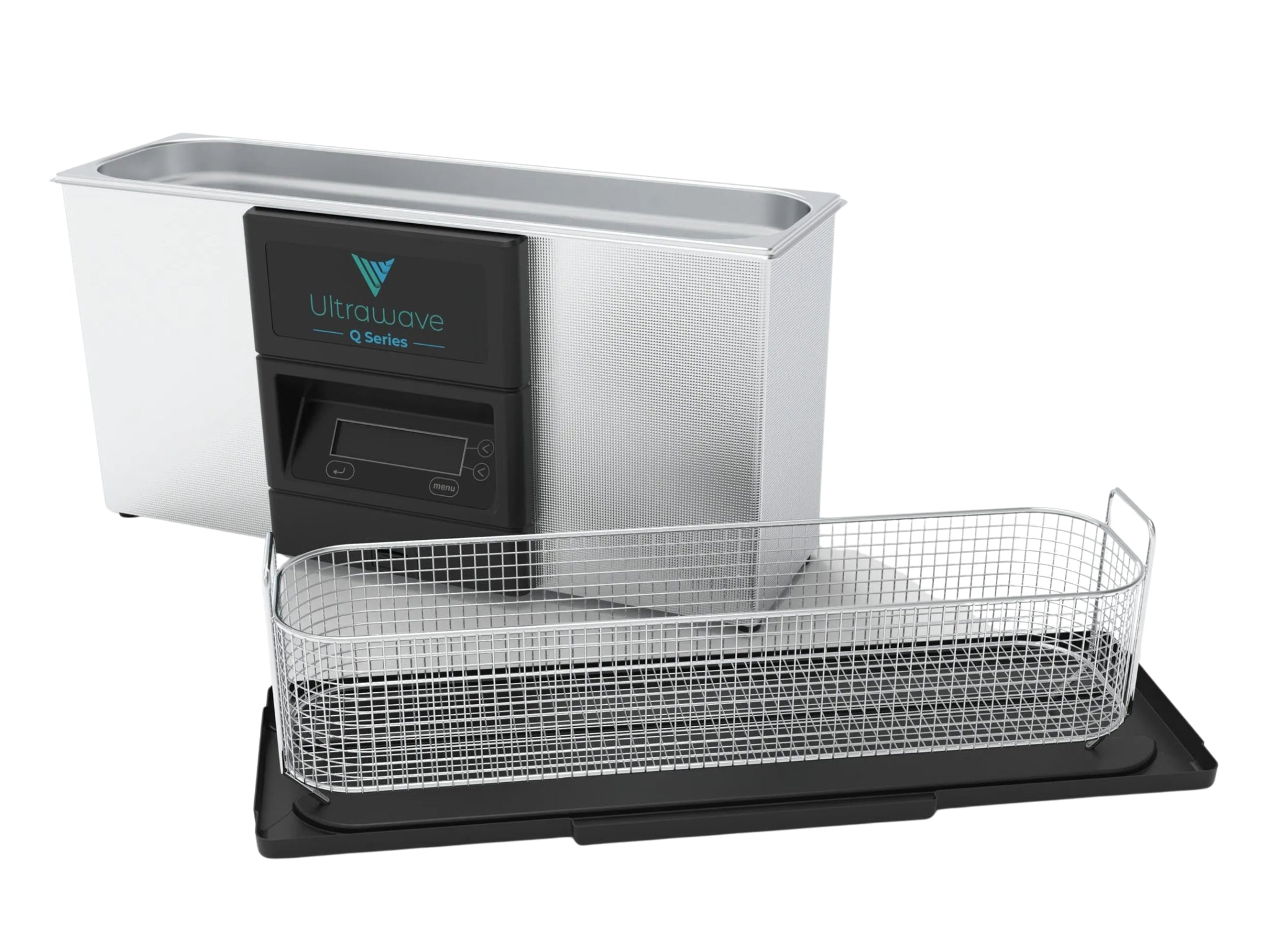

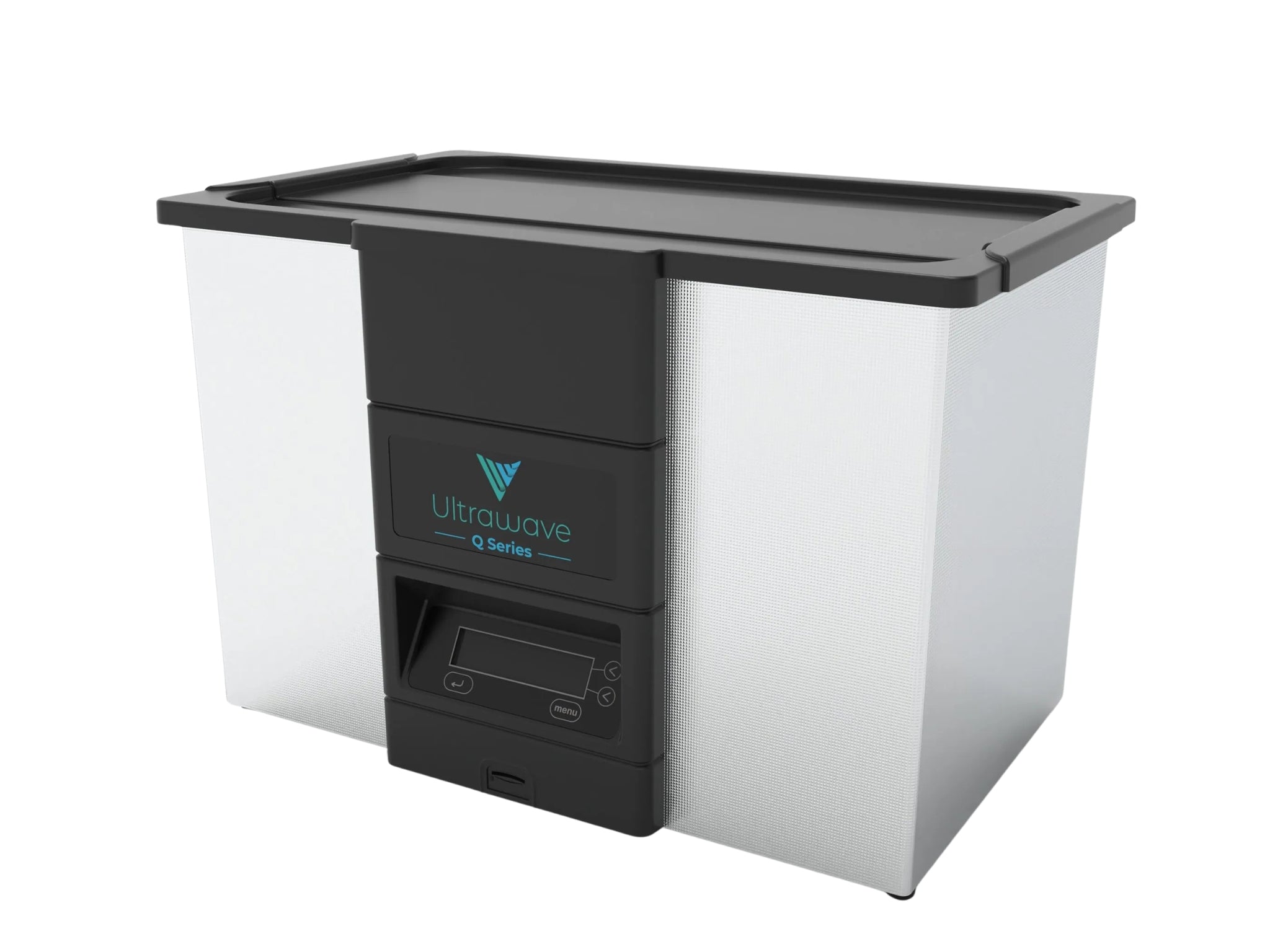

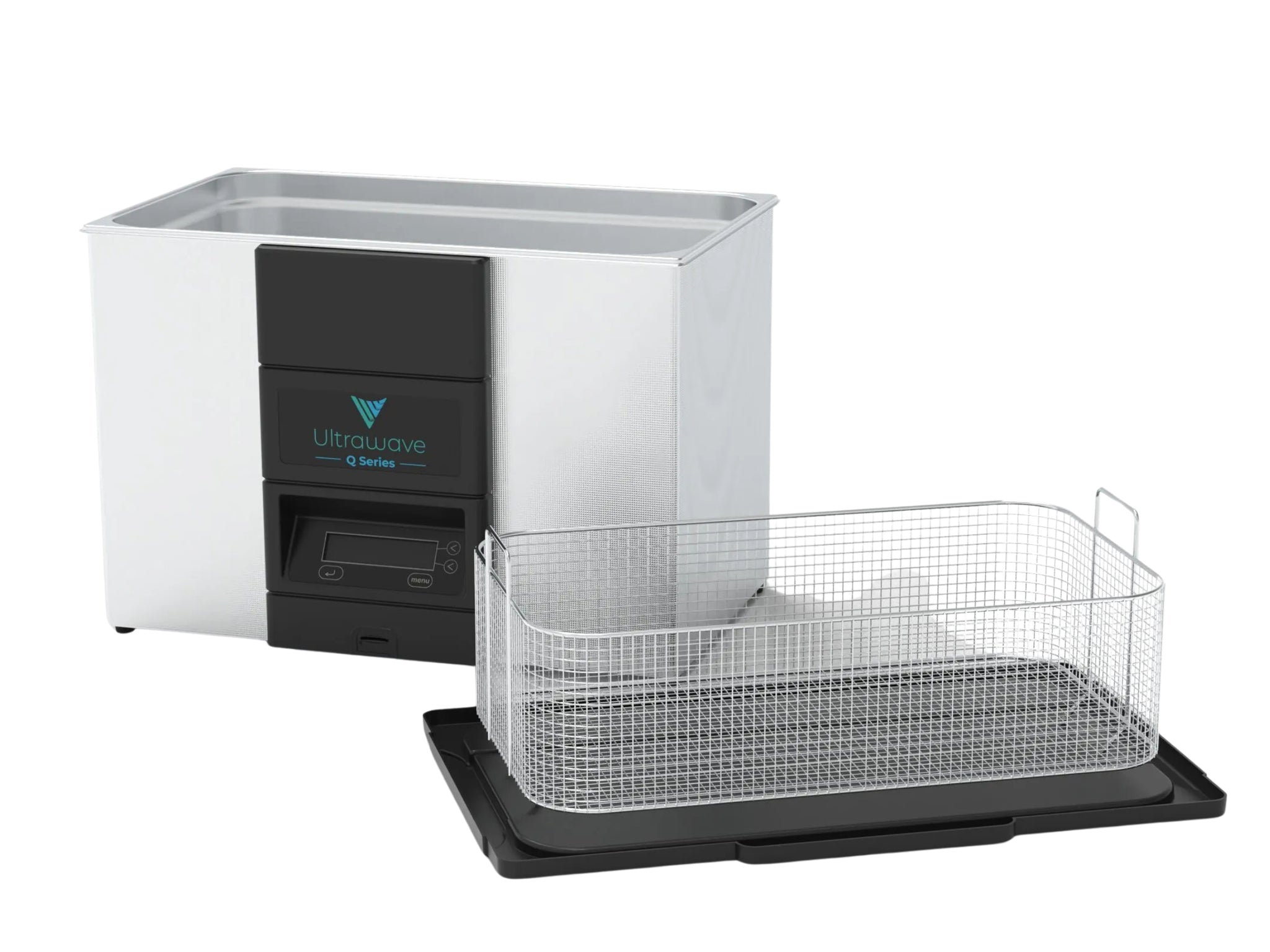

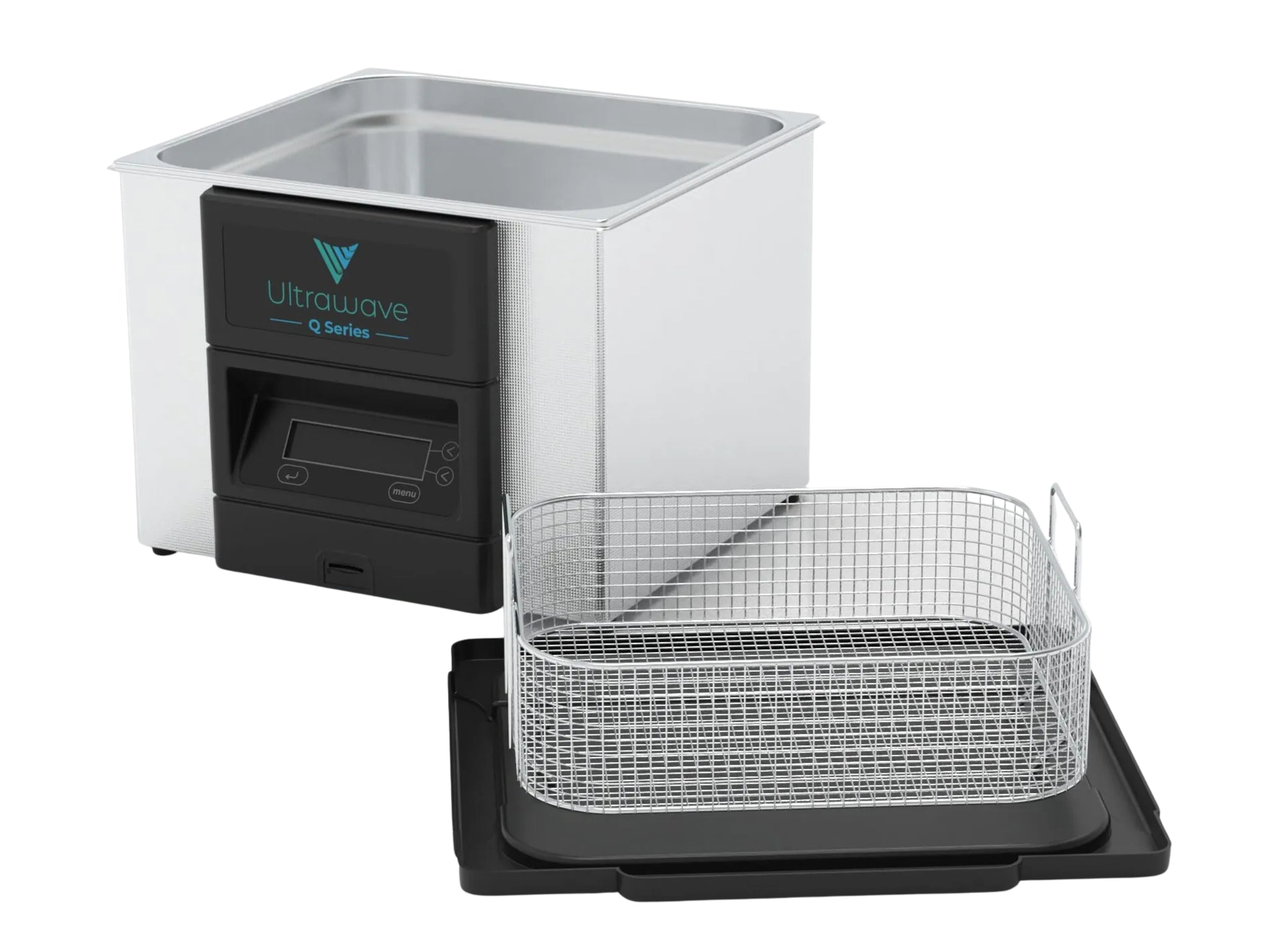

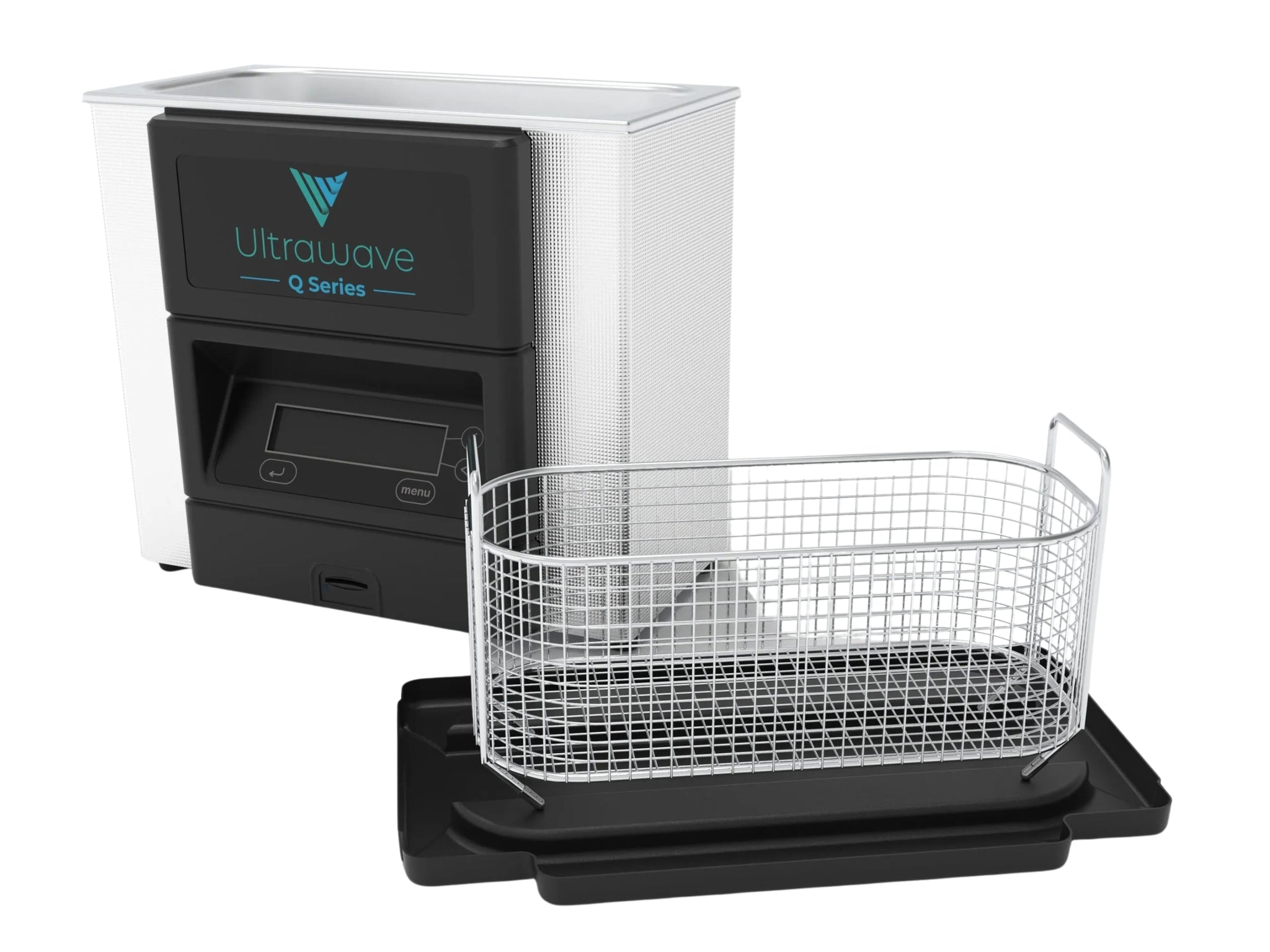

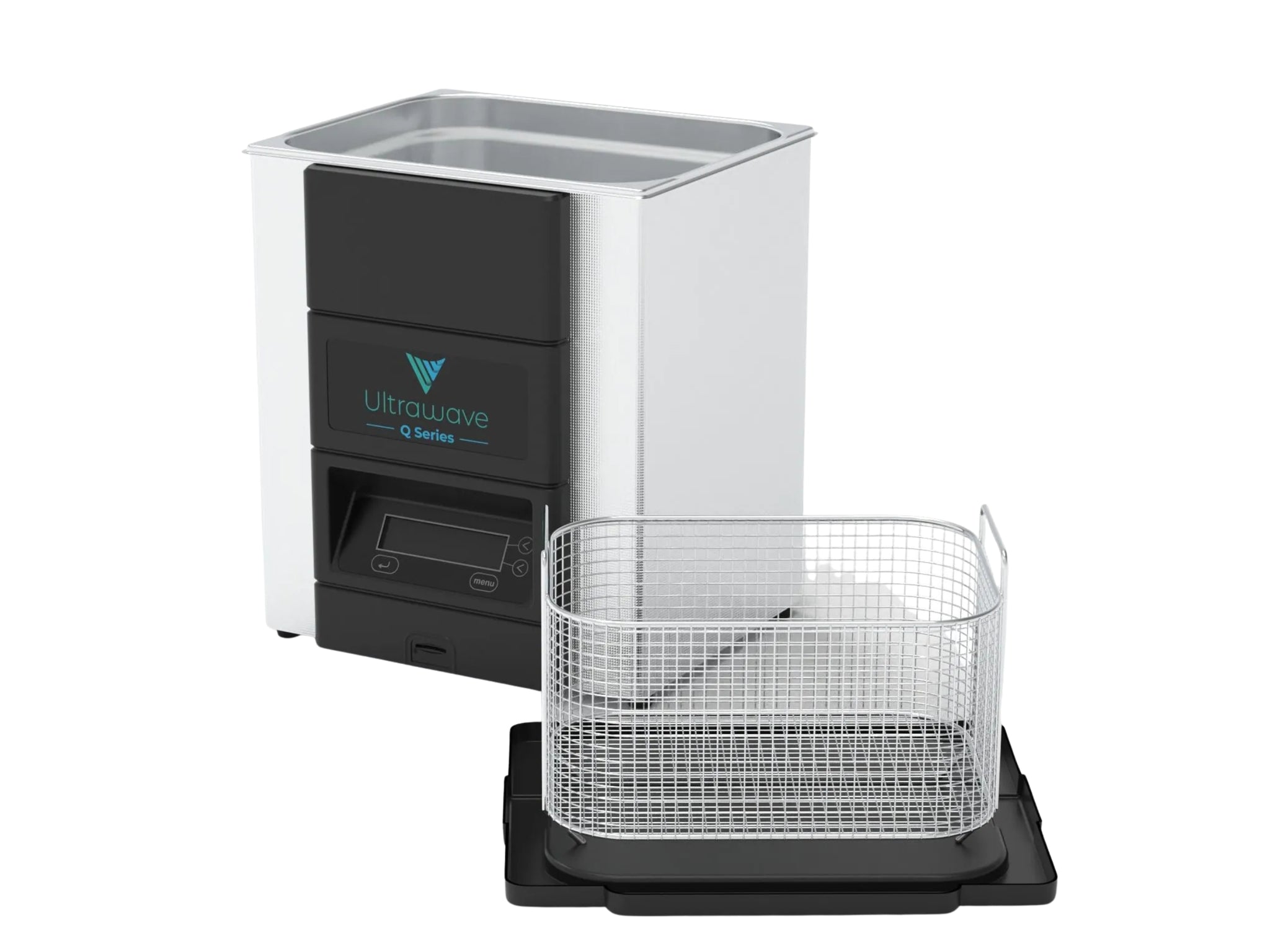

Ultrawave Q-Series Ultrasonic Bath

£1,533.00 GBP - £2,838.00 GBP

Excl VAT 20% - calculated at checkout

Ultrawave’s Q‑Series delivers repeatable, traceable ultrasonic cleaning for industries where validated results are essential. Incorporating Frequency Leap technology, the Q‑Series ensures exceptional ultrasonic activity and consistent cleaning performance across scientific laboratories, university research, veterinary surgeries, healthcare environments and many other professional sectors.

Available in capacities from 4.5 to 25 litres, each Q‑Series unit is operated via digital controls, enabling precise, repeatable cleaning cycles tailored to demanding workflows.

All Q‑Series ultrasonic cleaners are Class I Medical Devices, fully compliant with MDR (EU) 2017/745.A standard 1‑year warranty is included, extendable to 3 years when registered online with Ultrawave within 30 days of purchase.

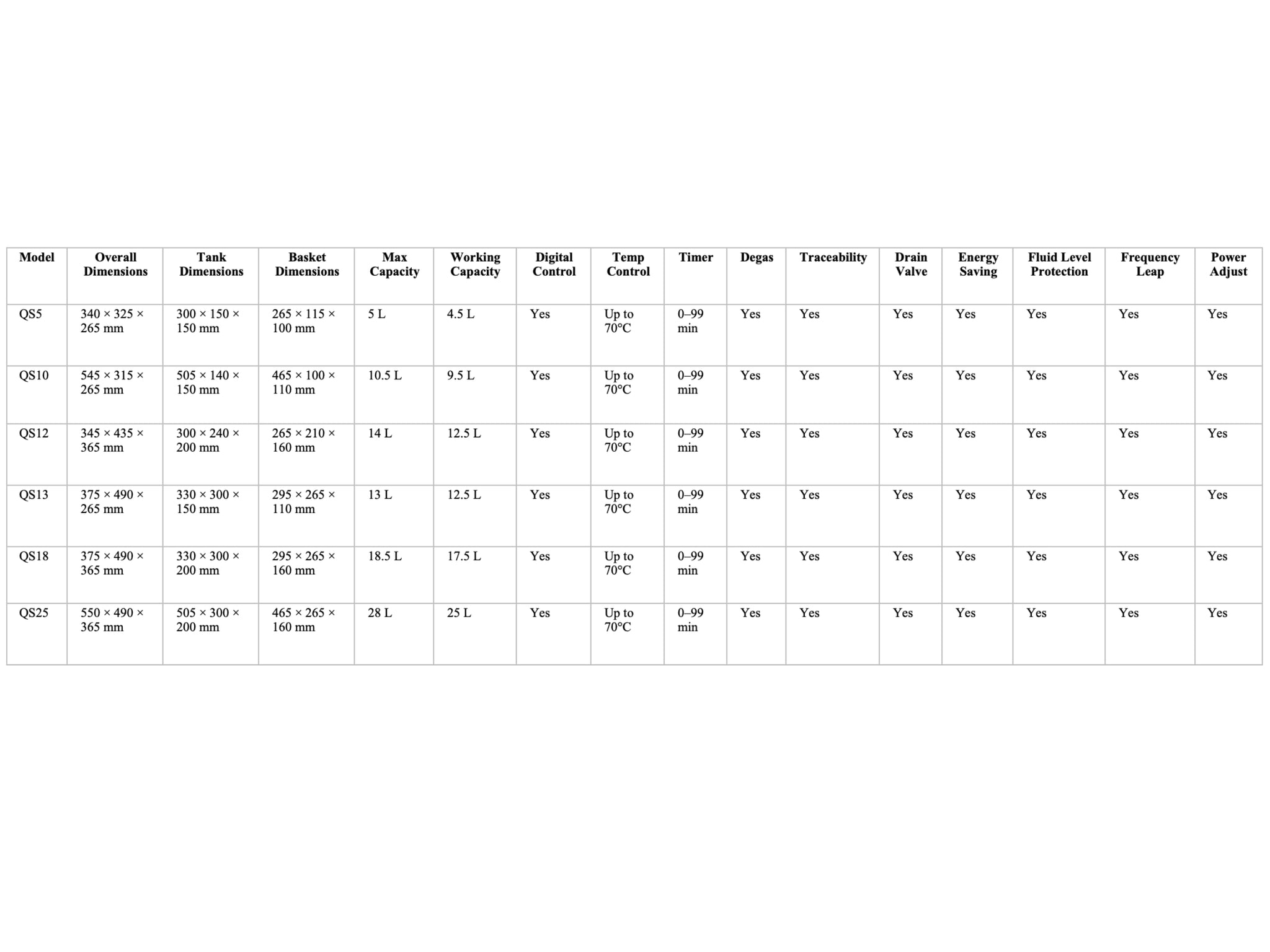

Q‑Series Model Overview

QS5

Overall Dimensions: 340 × 325 × 265 mm
Tank Dimensions: 300 × 150 × 150 mm
Basket Dimensions: 265 × 115 × 100 mm
Max Capacity: 5 L
Working Capacity: 4.5 L
Digital Control: Yes
Temp Control: Up to 70°C
Timer: 0–99 min
Degas: Yes
Traceability: Yes
Drain Valve: Yes
Energy Saving: Yes
Fluid Level Protection: Yes
Frequency Leap: Yes
Power Adjust: Yes

QS10

Overall Dimensions: 545 × 315 × 265 mm
Tank Dimensions: 505 × 140 × 150 mm
Basket Dimensions: 465 × 100 × 110 mm
Max Capacity: 10.5 L
Working Capacity: 9.5 L
Digital Control: Yes
Temp Control: Up to 70°C
Timer: 0–99 min
Degas: Yes
Traceability: Yes
Drain Valve: Yes
Energy Saving: Yes
Fluid Level Protection: Yes
Frequency Leap: Yes
Power Adjust: Yes

QS12

Overall Dimensions: 345 × 435 × 365 mm
Tank Dimensions: 300 × 240 × 200 mm
Basket Dimensions: 265 × 210 × 160 mm
Max Capacity: 14 L
Working Capacity: 12.5 L
Digital Control: Yes
Temp Control: Up to 70°C
Timer: 0–99 min
Degas: Yes
Traceability: Yes
Drain Valve: Yes
Energy Saving: Yes
Fluid Level Protection: Yes
Frequency Leap: Yes
Power Adjust: Yes

QS13

Overall Dimensions: 375 × 490 × 265 mm
Tank Dimensions: 330 × 300 × 150 mm
Basket Dimensions: 295 × 265 × 110 mm
Max Capacity: 13 L
Working Capacity: 12.5 L
Digital Control: Yes
Temp Control: Up to 70°C
Timer: 0–99 min
Degas: Yes
Traceability: Yes
Drain Valve: Yes
Energy Saving: Yes
Fluid Level Protection: Yes
Frequency Leap: Yes
Power Adjust: Yes

QS18

Overall Dimensions: 375 × 490 × 365 mm
Tank Dimensions: 330 × 300 × 200 mm
Basket Dimensions: 295 × 265 × 160 mm
Max Capacity: 18.5 L
Working Capacity: 17.5 L
Digital Control: Yes
Temp Control: Up to 70°C
Timer: 0–99 min
Degas: Yes
Traceability: Yes
Drain Valve: Yes
Energy Saving: Yes
Fluid Level Protection: Yes
Frequency Leap: Yes
Power Adjust: Yes

QS25

Overall Dimensions: 550 × 490 × 365 mm
Tank Dimensions: 505 × 300 × 200 mm
Basket Dimensions: 465 × 265 × 160 mm
Max Capacity: 28 L
Working Capacity: 25 L
Digital Control: Yes
Temp Control: Up to 70°C
Timer: 0–99 min
Degas: Yes
Traceability: Yes
Drain Valve: Yes
Energy Saving: Yes
Fluid Level Protection: Yes
Frequency Leap: Yes
Power Adjust: Yes

Why Choose the Q‑Series?

Validated, Repeatable Cleaning -Digital traceability and Frequency Leap technology ensure consistent, high‑quality cleaning results.
Advanced Digital Control -Precise temperature settings up to 70°C, programmable timers up to 99 minutes, and adjustable power output.
Enhanced Workflow Efficiency -Degas mode, energy‑saving mode, fluid‑level protection and integrated drain valves streamline daily operation.
Built for Professional Environments -Designed for laboratories, healthcare, veterinary, research and industrial applications requiring dependable, validated cleaning.
Extended Warranty Available -Register online to upgrade from a 1‑year to a3‑year warranty for added peace of mind.

N-ULB-30-10-006
