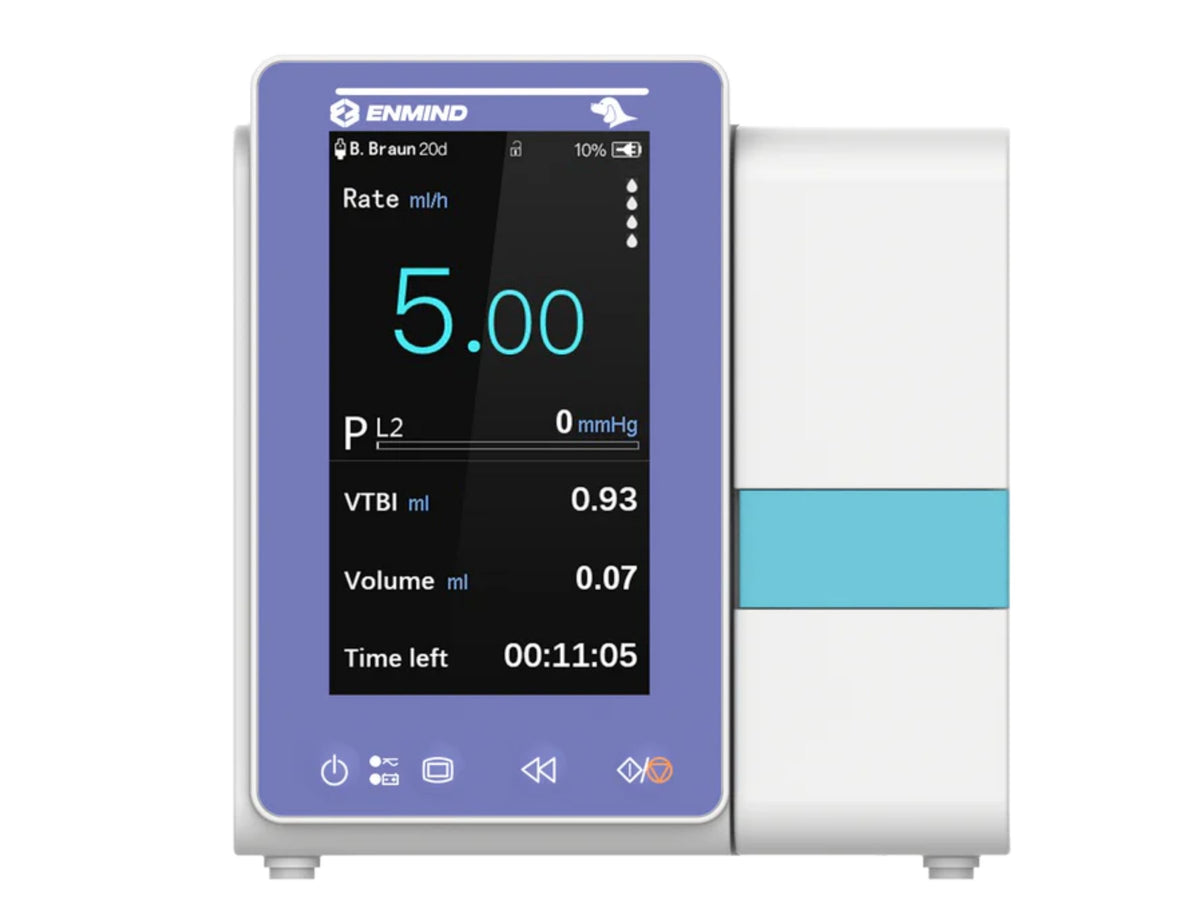

The Vet 5 Infusion Pump is a compact, lightweight, and highly adaptable infusion system designed for modern veterinary practice. Featuring a bright 4.3″ LCD colour touch screen, intuitive controls, and five infusion modes—including micro‑mode for ultra‑precise dosing—it delivers exceptional accuracy and ease of use for a wide range of clinical scenarios.
With a long‑lasting battery, splash‑proof IP44 protection, and compatibility with any IV giving set, this pump is built for reliability in clinics, hospitals, and mobile veterinary environments.
Key Features
Compact, Portable Design
-
Lightweight at 1.5 kg with a built‑in handle
-
4.3″ LCD colour touch screen for clear, intuitive operation
-
Smart interface with complete information display and visual alarms
Advanced Infusion Control
-
Five infusion modes + micro mode:
-
Standard ml/h
-
Body weight
-
Drug library
-
Sequence mode (ideal for MLK infusions)
-
Micro mode (accuracy to 0.1 ml)
-
-
Change flow rate without stopping the infusion
-
Flow rate range: 0.1–2000 ml/h
Safety & Monitoring
-
Screen lock function
-
IP44 splash‑proof protection
-
Top indicator light for status and alarms
-
History storage for over 5000 entries
-
Compatible with any infusion set, with storage for up to 200 editable brands
-
Ideal for veterinary infusion therapy
-
Backed by a 2‑year warranty
Flexible Mounting Options
-
Built‑in cage fixation system
-
IV pole clamp
-
Hook for easy placement
Optional Warming Tube Attachment
The optional warming tube provides controlled heating for temperature‑sensitive infusions.
Warming Tube Features
-
Adjustable 30–40°C temperature range
-
Accuracy ±1.0°C
-
Auto‑shutoff above 50°C for safety
-
Four heating units for rapid warm‑up
-
1100 mm long heating tube for effective fluid warming
-
Fully sealed, waterproof three‑chamber structure
-
Dual NTC temperature sensors for precise control
Product Specifications
- Flow rate range: 0.1–2000 ml/h (minimum increment 0.01 ml/h)
- Infusion modes: ml/h, time mode, body weight, drip, sequence, drug library, micro mode
- VTBI: 0–9999.99 ml
- KVO rate: 0–5 ml/h (minimum increment 0.01 ml/h)
- Accuracy: ±5%
- Applicable sets: Various standard giving sets
- Bolus rate: 0.1–2000 ml/h (auto & manual)
- Air‑bubble detection: Adjustable; single & accumulated bubble detection
- Occlusion pressure: 5 levels (50–900 mmHg)
- Alarms: Audible, visual & smart alarms (VTBI near end, occlusion, air detected, low battery, system error, etc.)
- Power supply: AC 110–240 V, 50/60 Hz; External DC 10–16 V
- Battery: 2600 mAh ×1 (5+ hrs) or ×2 (10+ hrs) at 25 ml/h

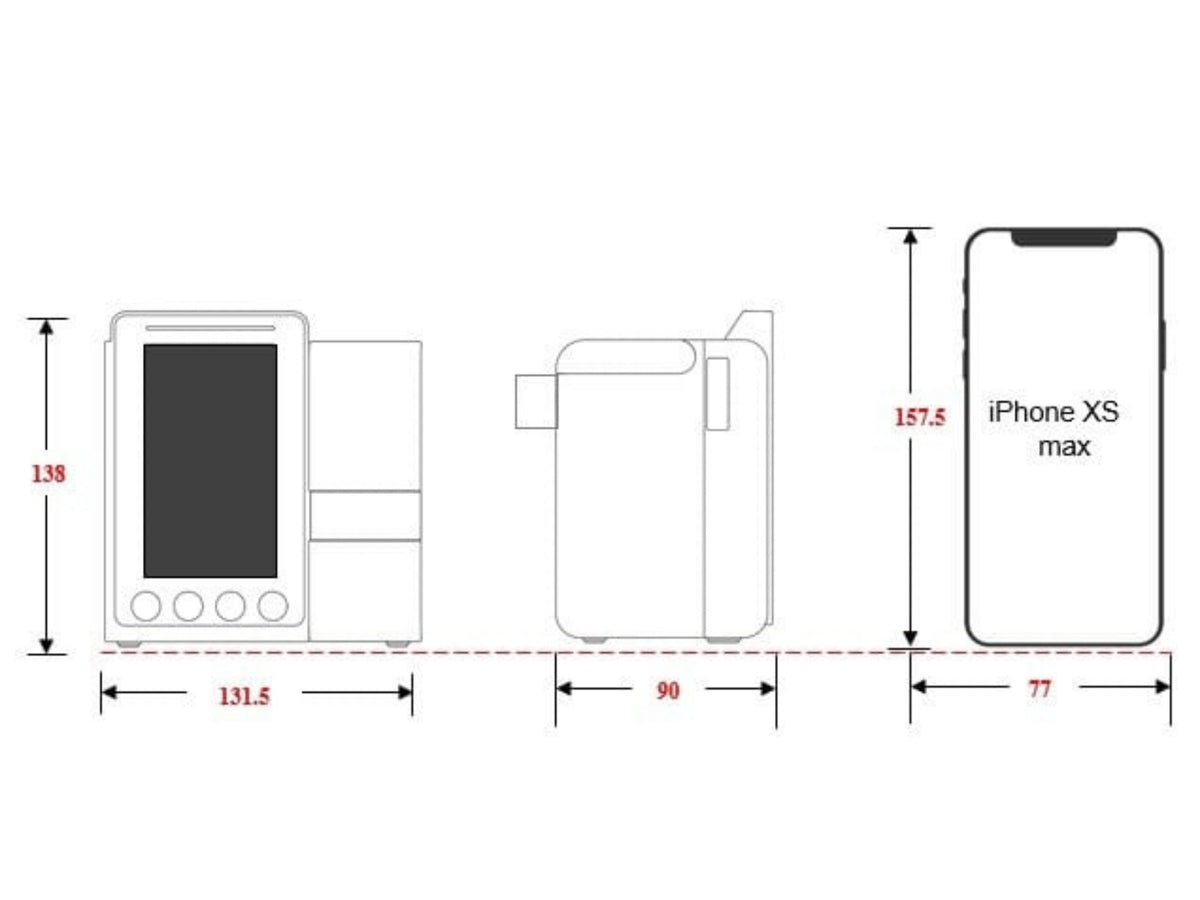

- Dimensions: 138 × 131.5 × 90 mm
- Weight: Approx. 1.5 kg (with pole clamp)
