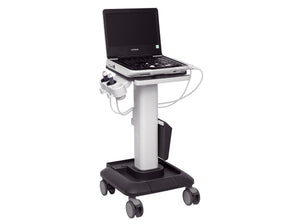

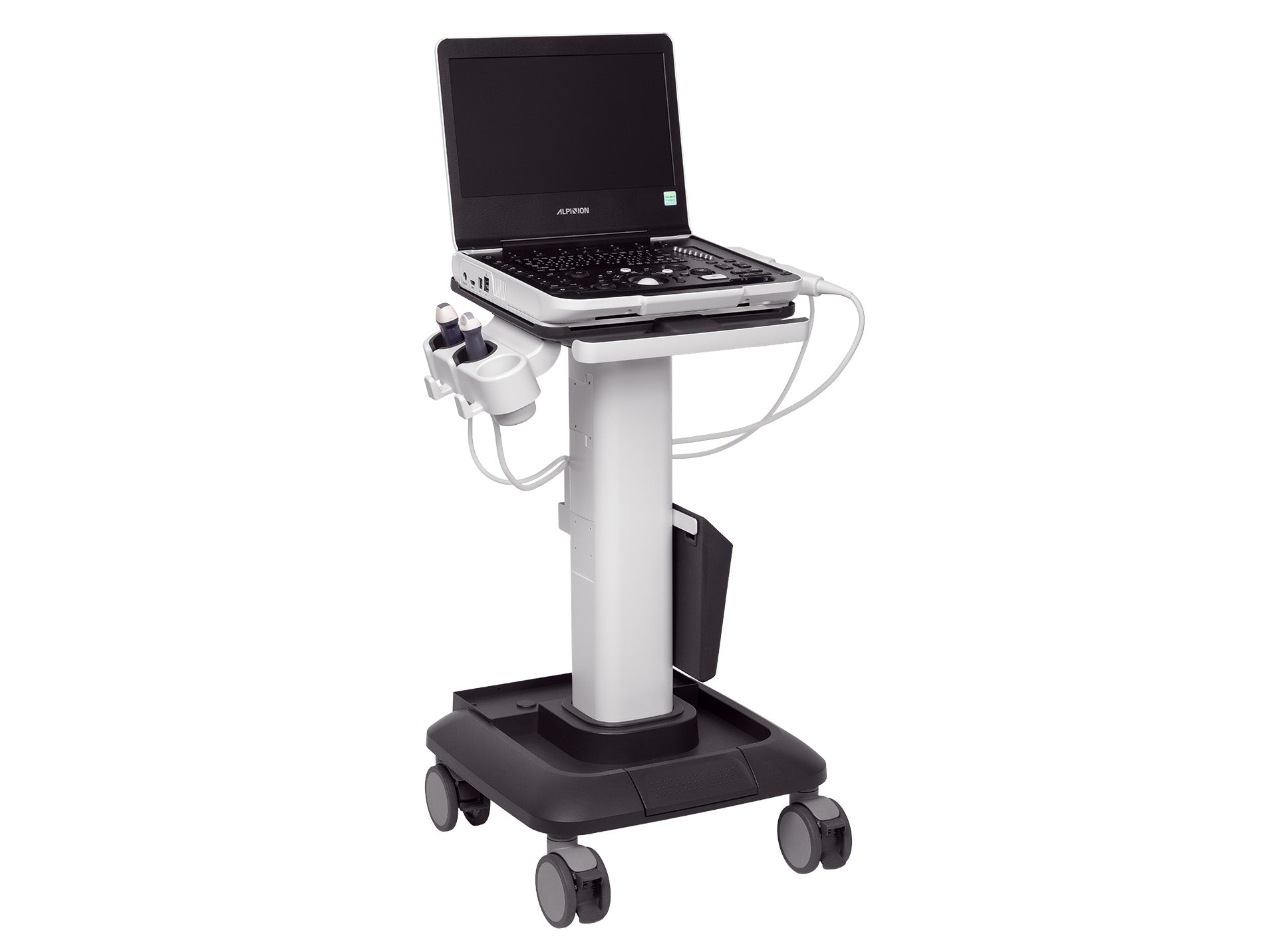

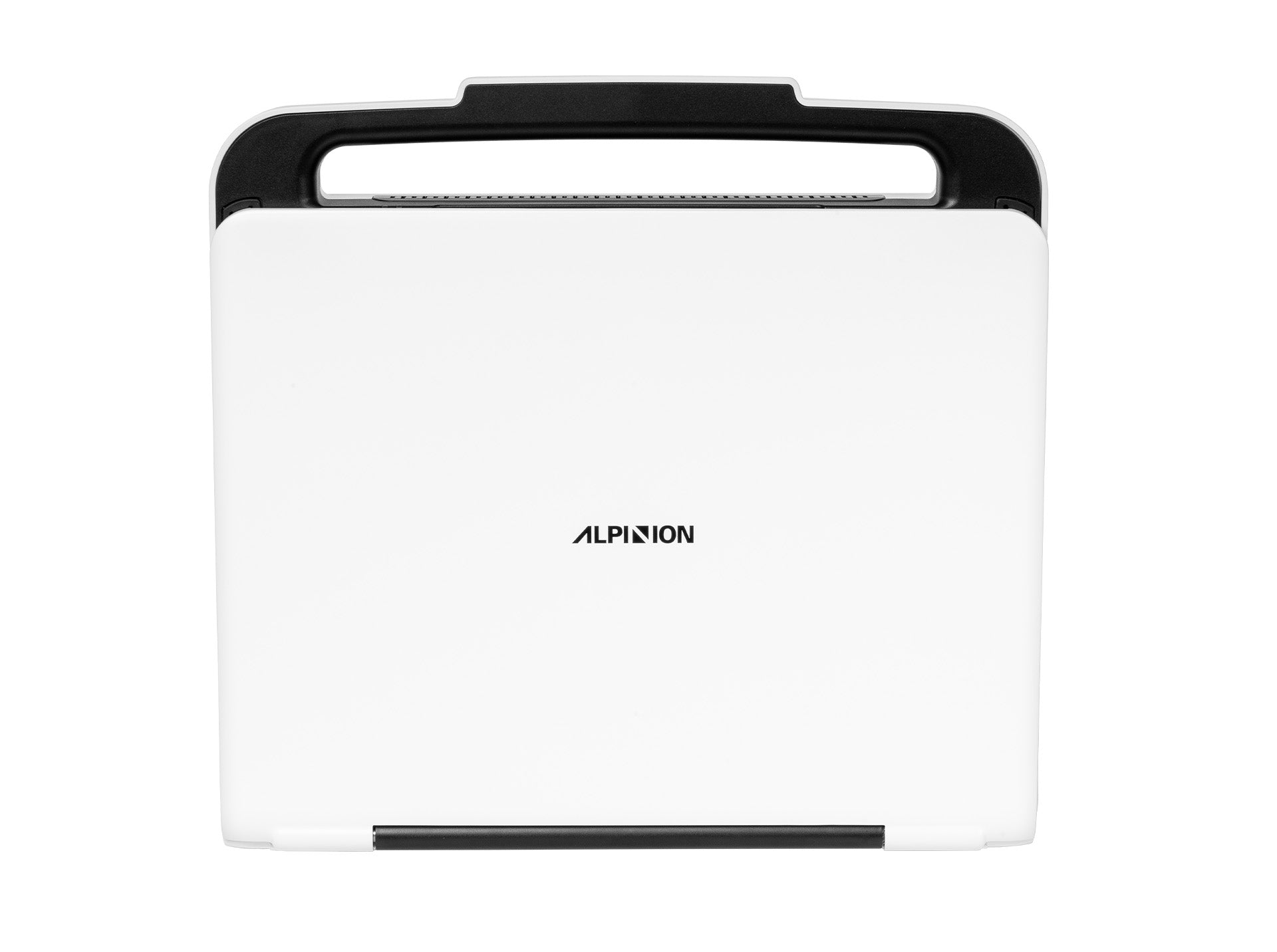

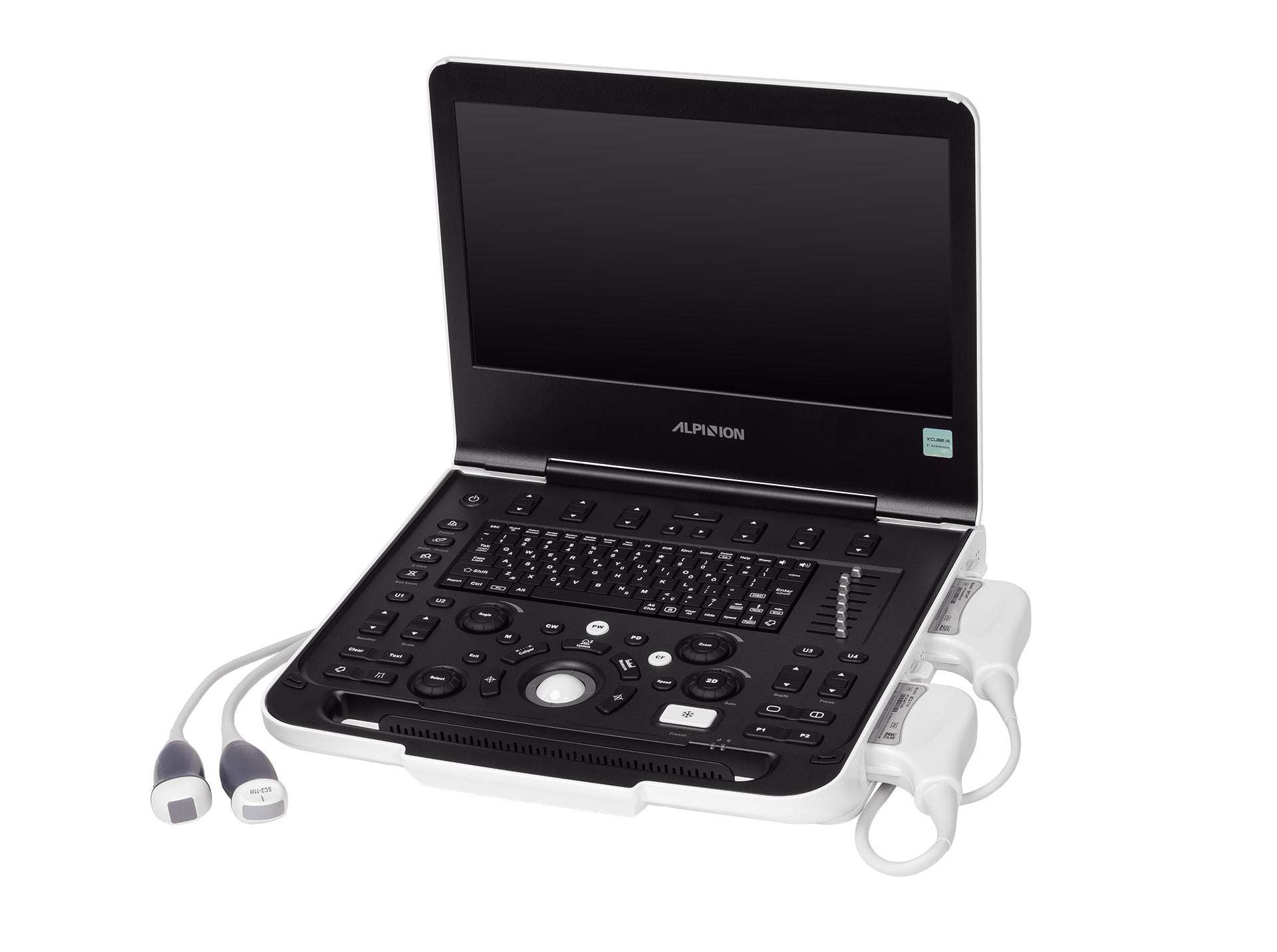

TheALPINION X-CUBE i9 is a portable, high-resolution diagnostic ultrasound system tailored for veterinary practices. It bridges the gap between compact field portability and cart-based clinical performance for small animal, equine, and large animal practices.

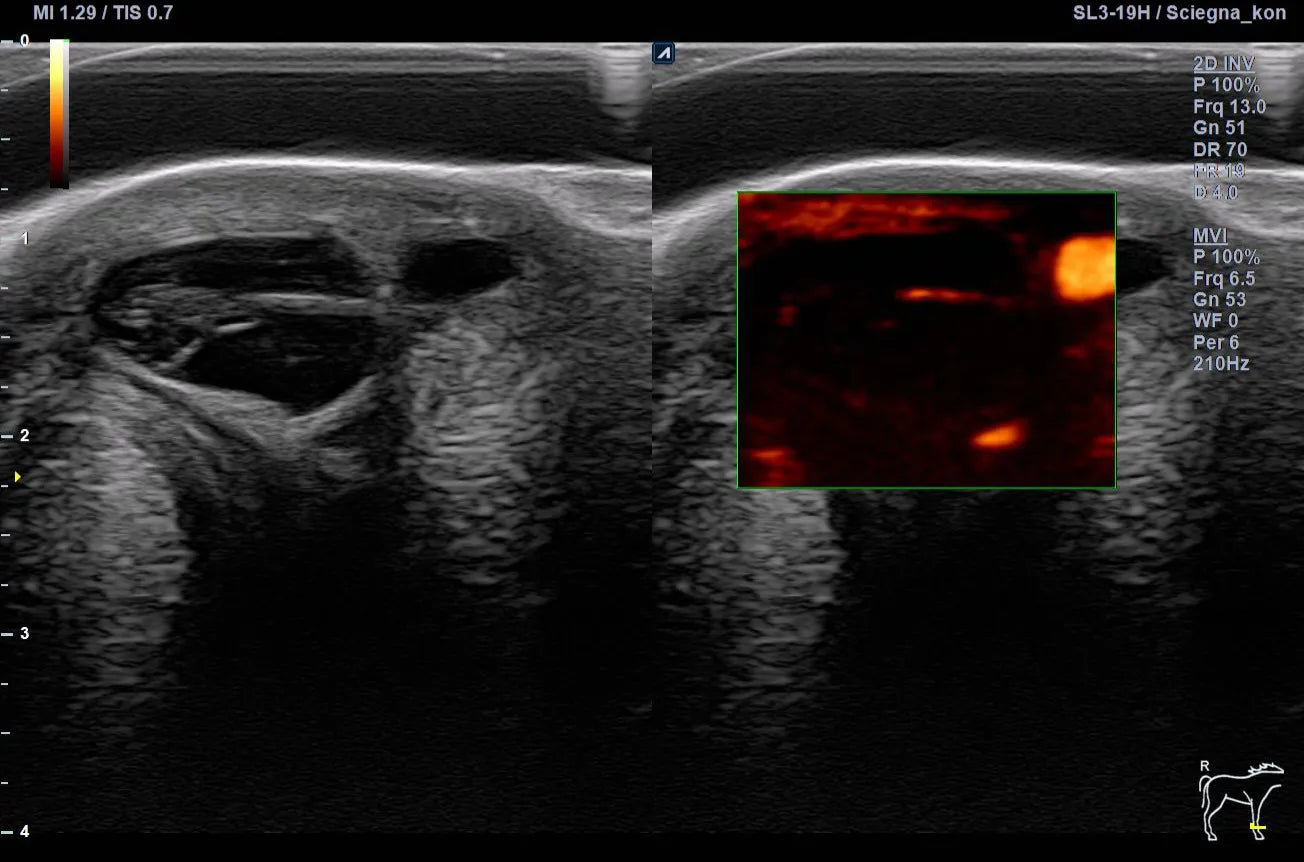

X+ MicroView-Sensitive microvascular Doppler. Facilitates the assessment of vascularization, for example, in tumors or lymph nodes.
X+ Compare -Comparing images from different examinations of the same patient. Useful for monitoring treatment progress.
X+ Assistant -Test protocols ensure repeatability. The assistant guides you through the test step by step, helping you obtain complete information.
- Lightweight Profile: Weighs only 6 kg (with battery pack) for easy transport between clinical wards or ambulatory farm calls.
- DUO Battery Capacities: Offers up to 60 minutes of active scanning time and up to 100 hours of standby sleep mode.
- Rapid Boot-Up:Wakes from sleep mode in just 15 seconds (or 62 seconds from a cold boot) so you never miss critical diagnostic windows.
-

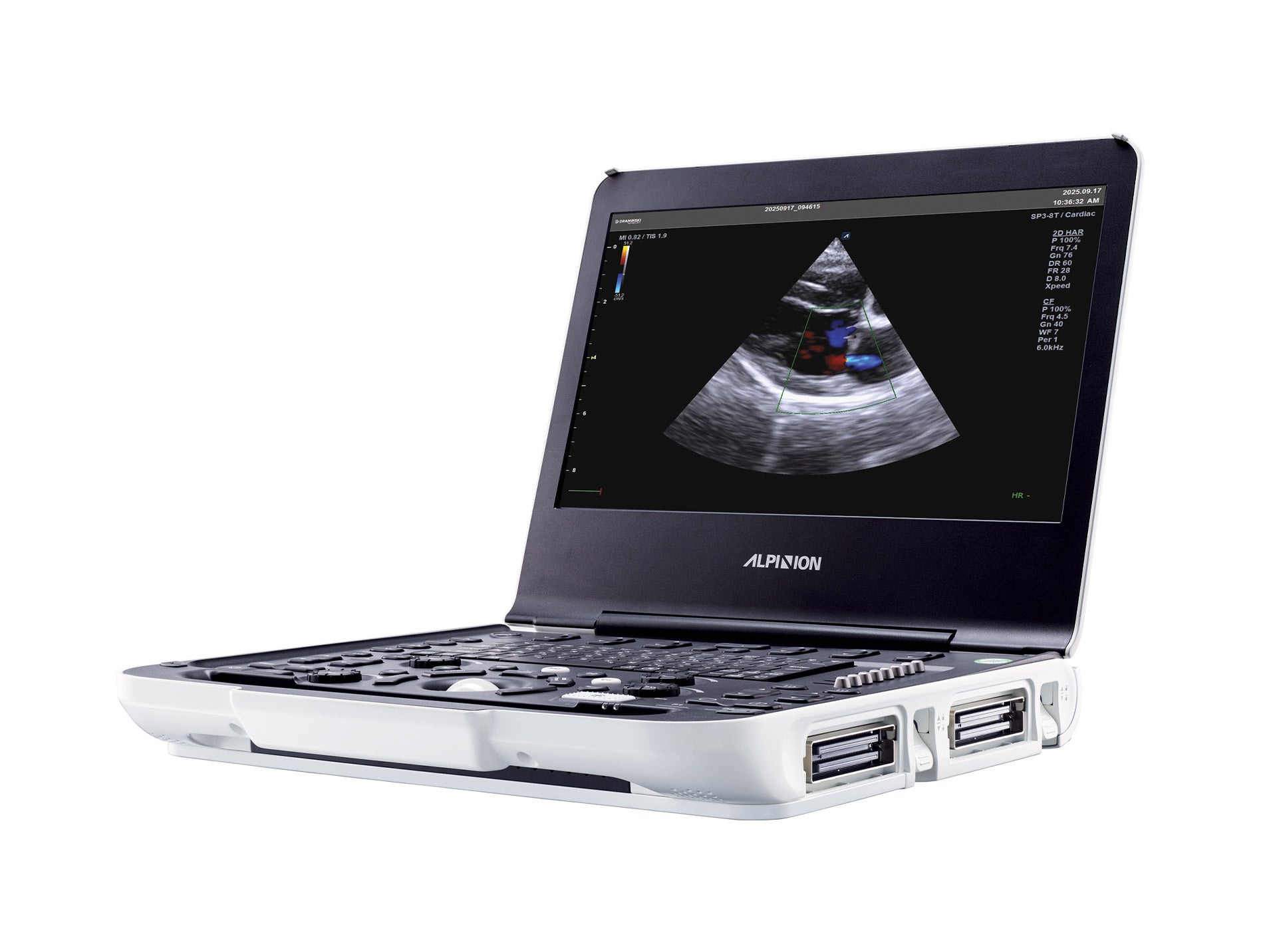

Adaptive Viewing: Equipped with a 15.6-inch Full HD IPS Displaythat tilts up to 180° for perfect visibility during difficult scanning angles
- Optimal Control Surface:Minimally divided, clean front console layout with 4 user-definable keys and an adjustable dark-mode LED backlight.
-
Warranty up to 5 years, standard warranty is 2 years
Standard system functions
- Color Flow Doppler (CF) mode
- Power Doppler (PD) mod
- Pulsed Wave Doppler (PWD) mod
- Full Speckle Reduction Imaging (Full SRI)
- Spatial Compounding Imaging (SCI)
- FTHI (Filtered Tissue Harmonic)
- PTHI (Pulse Inversion Tissue Harmonic)
- Virtual Convex
- EX-FOV (W-FOV)
- Raw Data Processing
- Post Processing
Additional options
- Xpeed™
- Cardiovascular Measurement & Report
- DICOM 3.0 Connectivity
- DICOM Query
- CW
- Anatomical-M
- Panoramic
- Tissue Doppler Image
- Elastography
- Needle Vision™ Plus
- CUBE Note
- AutoEF
- CEUS (for SC1-7H)
- X+ MicroView
- X+ Compare
- X+ Assistan
Probes available
-
Micro-convex - SC2-11H – broadband microconvex array transducer (2.0–11.0 MHz), 192 elements, X+ Crystal Signature technology
-

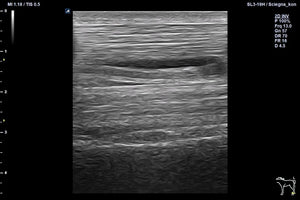

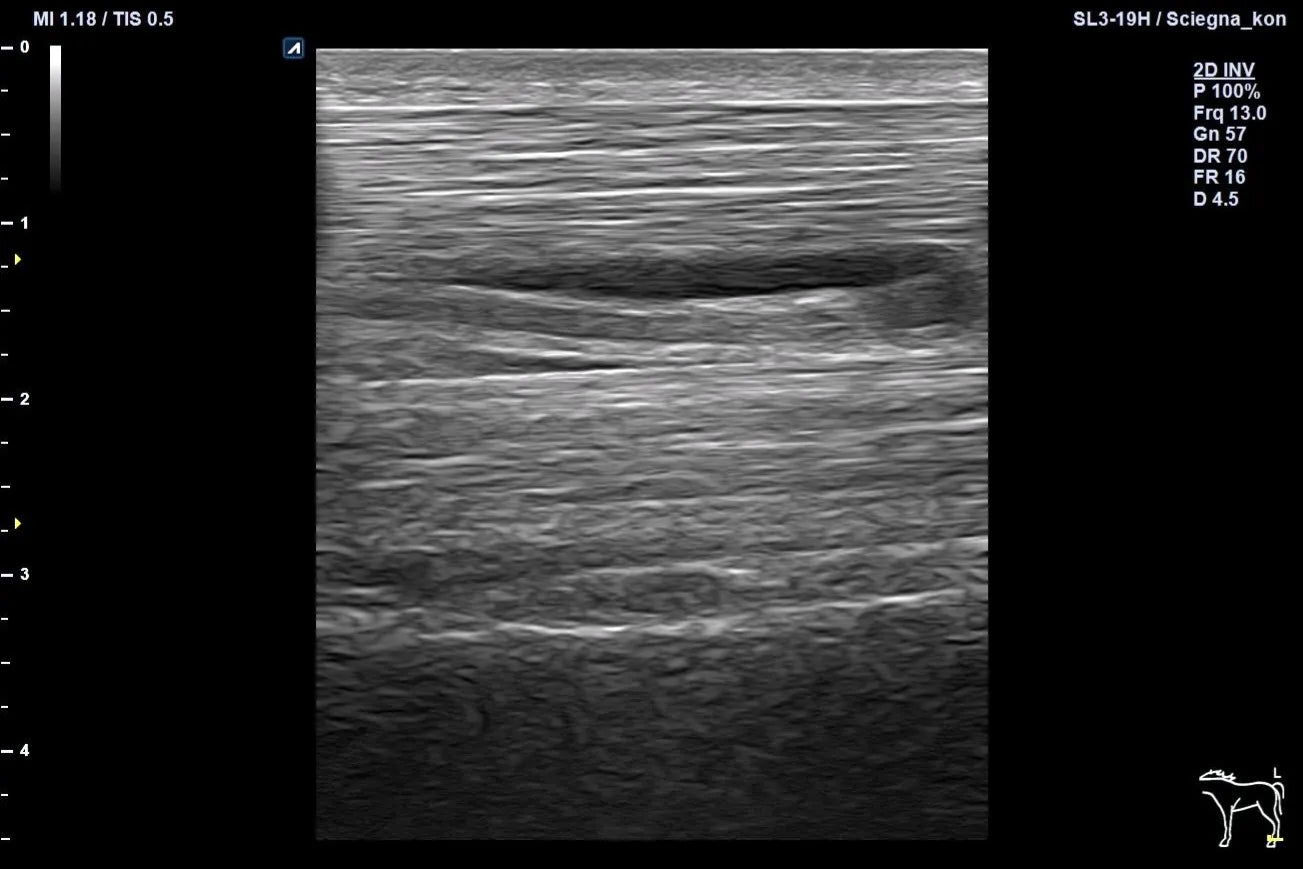

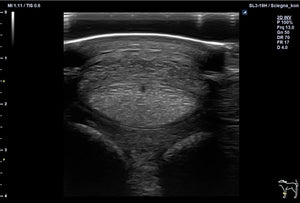

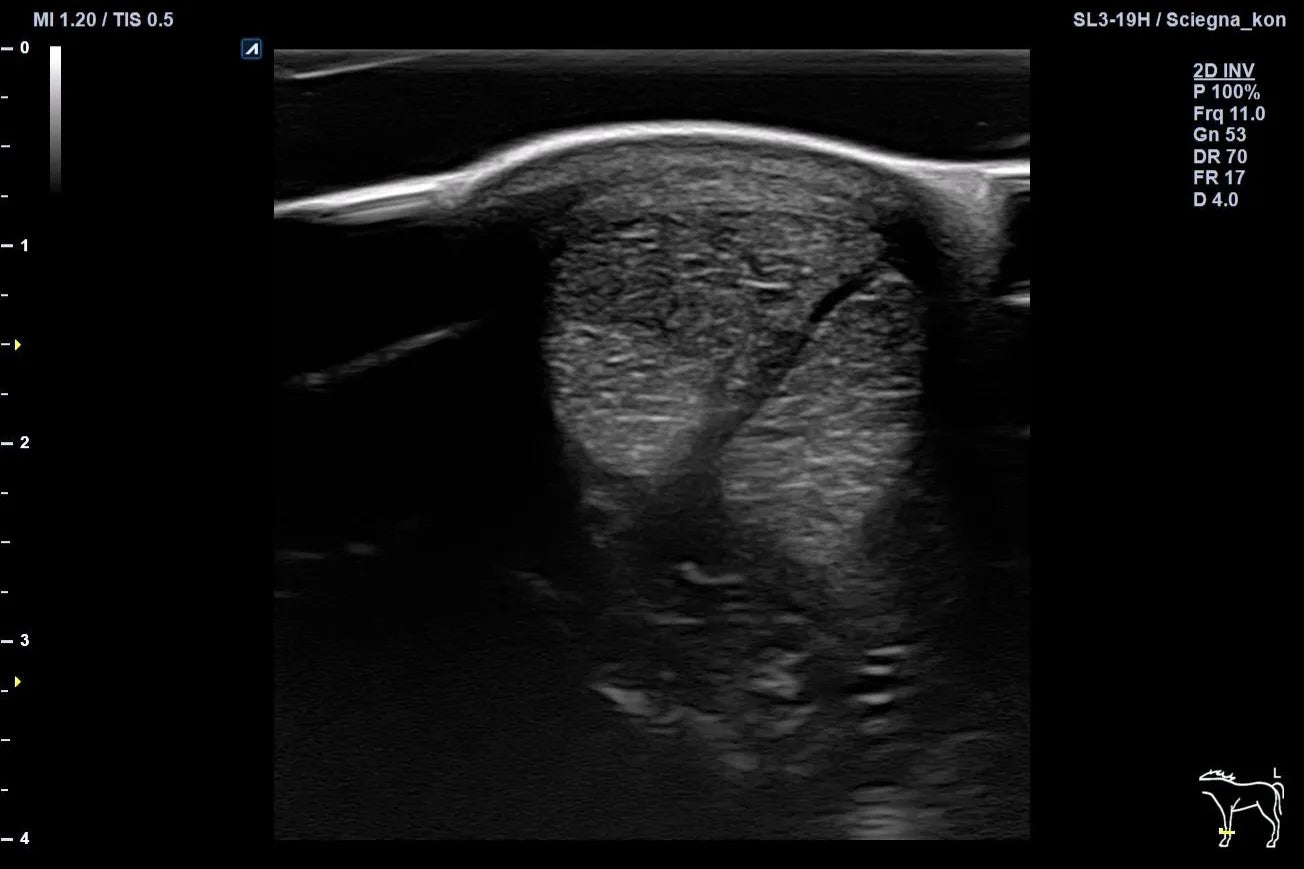

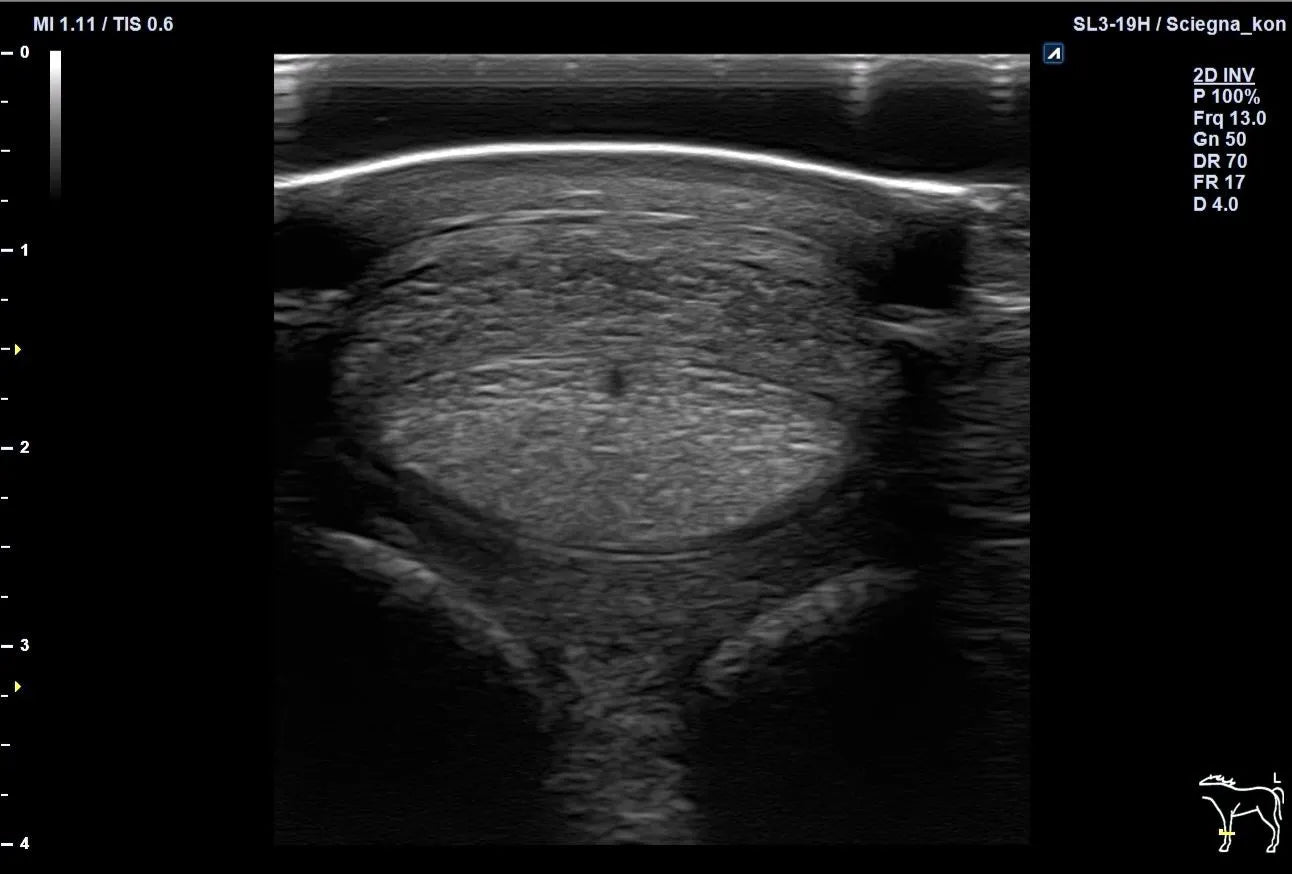

Linear -SL3-19H – broadband single-crystal linear array transducer (3.0–19.0 MHz), 40 mm footprint, 192 elements
-
Linear - L10-25H – broadband high-frequency linear array transducer (10.0–25.0 MHz), 25 mm footprint, 192 elements
-
Convex - SC1-7H– broadband convex array transducer (1.0–7.0 MHz), 192 elements, X+ Crystal Signature technology
-
Phased Array -MP1-5X – multilayer phased array transducer (1.0–5.0 MHz), X+ Crystal Signature technology
-
Phased Array -SP3-8T – single-crystal phased array transducer (3.0–8.0 MHz)
