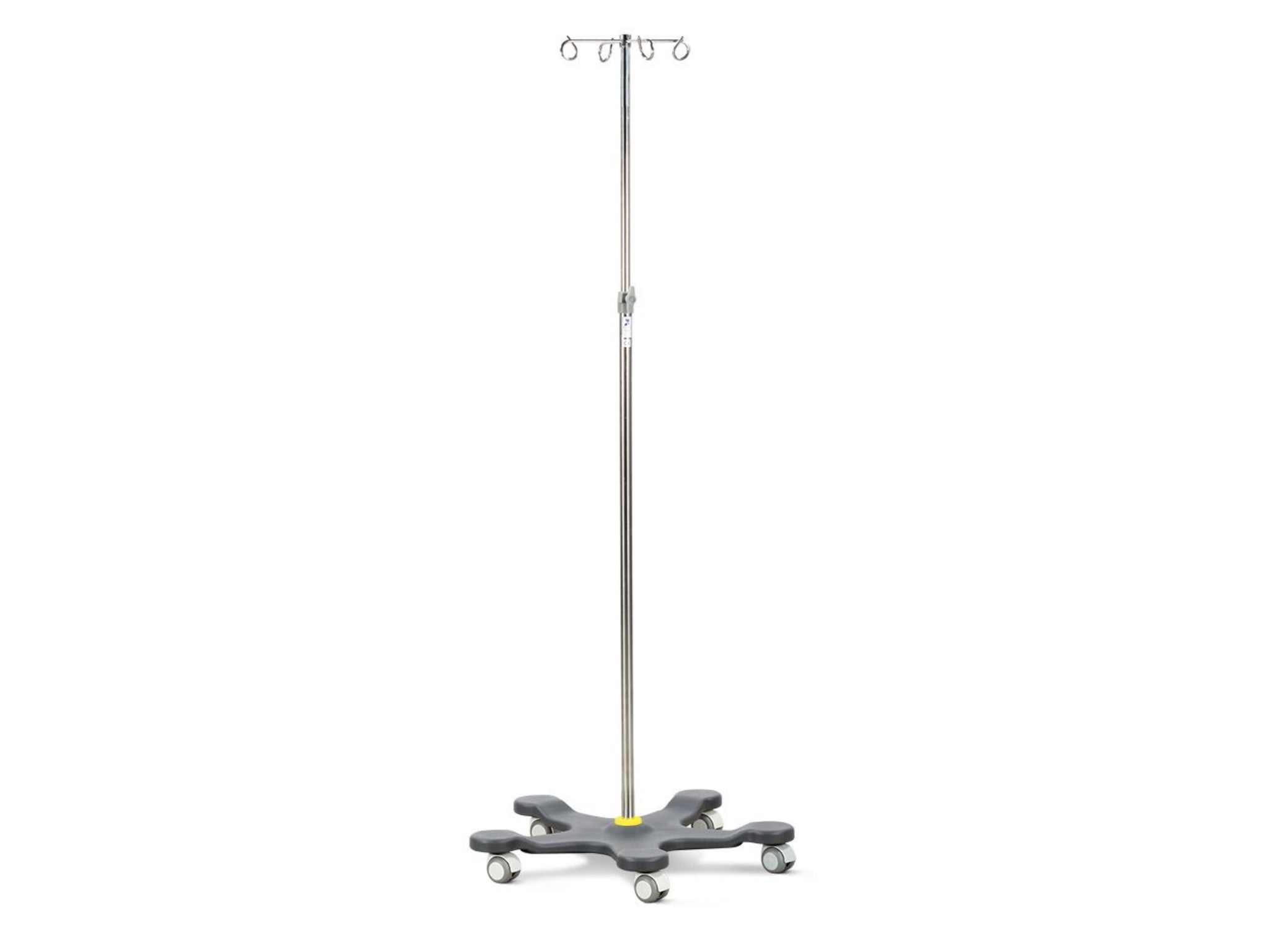

This high‑performance Mobile Infusion Stand is engineered to meet the stringent Appendix A Stability Requirements of BS 3619:1976 Mobile Infusion Stands, ensuring safe and reliable use in clinical environments. Designed with stability, durability, and patient safety in mind, it features a robust five‑leg base, premium stainless steel construction, and multiple configuration options to suit a wide range of healthcare settings.

Key Features

• Certified Stability
  Fully compliant with BS 3619:1976 Appendix A, delivering exceptional stability and safety in everyday clinical use.

• Five‑Leg Base with Low Centre of Gravity
  Enhances balance and reduces the risk of tipping, even under maximum load.

• Premium Stainless Steel Construction
  25mm diameter 304‑grade stainless steel upright offers superior strength, corrosion resistance, and long‑term reliability.

• Polyurethane Overmoulded Base
  Smooth edges and rounded contours minimise injury risk and provide:

  • Water‑resistant, easy‑clean surfaces (including steam cleaning)
  • Impact protection for patients, staff, and building fabric
  • Integrated shields for castors

• Coloured Indicator Caps
  Provide clear department identification to support segregation and reduce the risk of cross‑contamination.

• Adjustable Height
  Smooth handwheel adjustment between 1,260mm and 2,100mm, suitable for a variety of infusion bag sizes and clinical scenarios.

• Hook Configurations
  Available with two or four pigtail hooks.

• Load Capacity

  • Hooks: 4kg per stand
  • Fixed Upright: 4kg per stand

• Optional Safety Handle
  Keeps feet clear of the base, improves manoeuvrability, and enhances patient safety during movement.

• High‑Quality 50mm Twin‑Wheel Castors
  Polypropylene / thermoplastic rubber construction, non‑marking, including one anti‑static castor.

Dimensions (W × D × H)

• Overall: 620 × 620 × 1,260–2,100mm
• Vertical Clamping Area:
  • IS/P/2H & IS/P/4H: 970mm
  • IS/P/2H/H & IS/P/4H/H: 840mm

Colours

• Base: Grey
• Upright & Support Bows: Stainless Steel
• Indicator Cap: Available in Spearmint, Blue, Yellow, Green, Red
