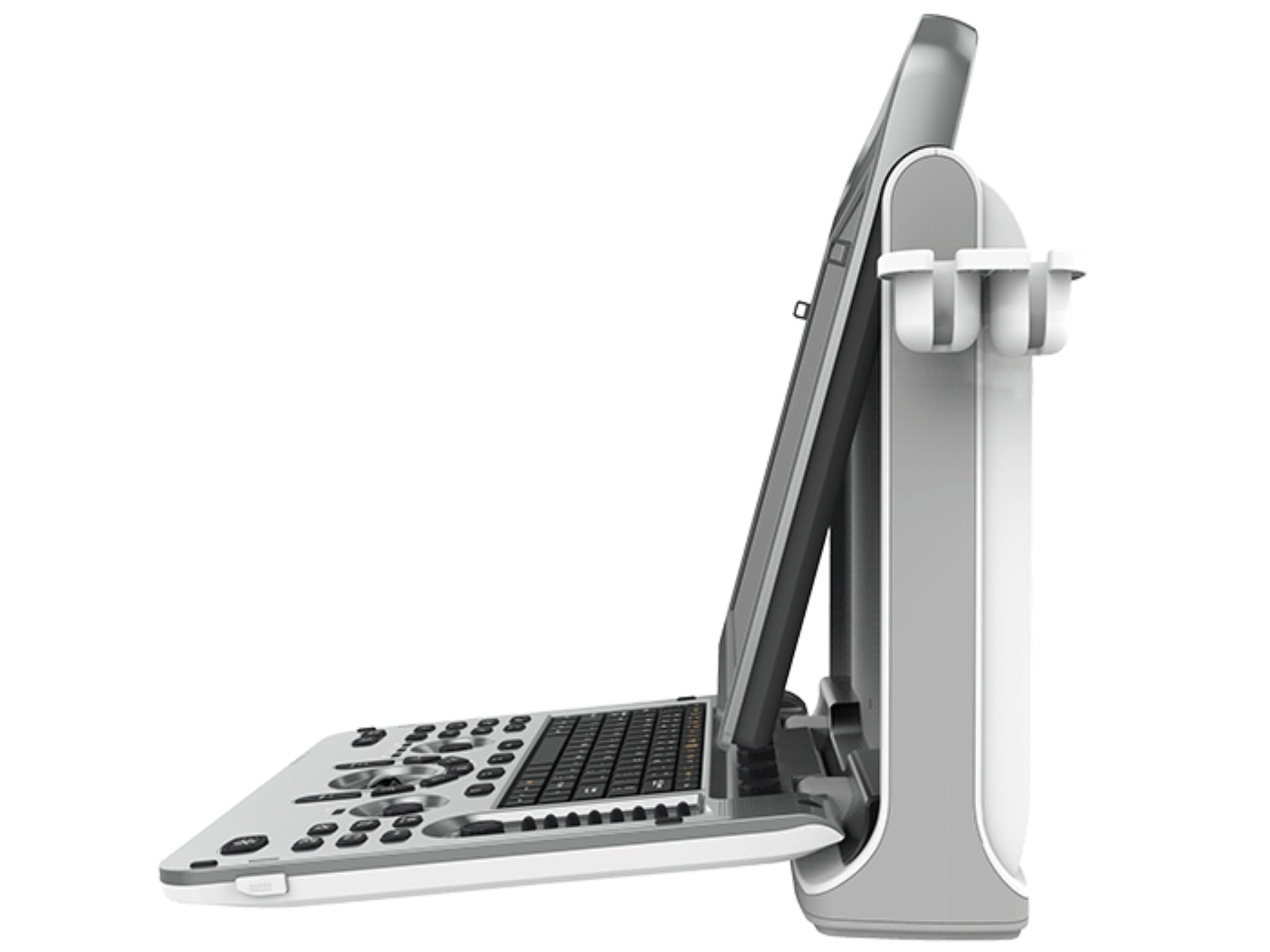

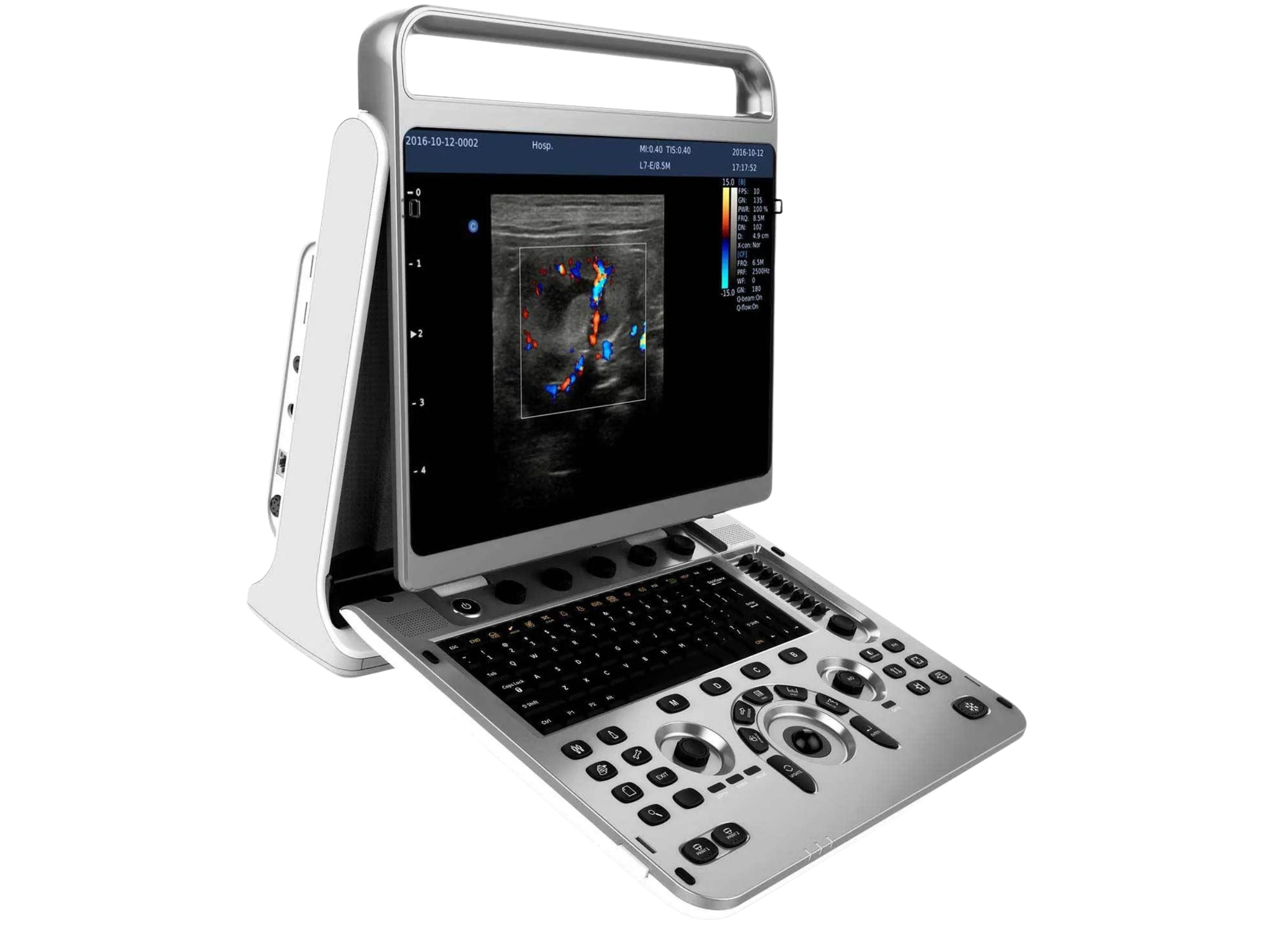

The Chison EBit30 Veterinary Ultrasound System delivers exceptional imaging performance in a lightweight, ultra‑portable design. Offering the same advanced capabilities as the EBit60, minus the extended cardiac package, it provides outstanding value for veterinary practices seeking high‑quality imaging without compromise.

Equipped with advanced ultrasound imaging technologies, intuitive workflow tools, and an ergonomic, eco‑friendly build, the EBit30 ensures accurate diagnostics across a wide range of species. Its 15” rotatable LED monitor, built‑in battery (≥2 hours), and compact 7.5 kg frame make it ideal for busy clinics, mobile vets, and multi‑room practices.

Our most popular veterinary probe combinations include:

• 6 MHz micro‑convex – small dog & cat abdomen, basic cardiac

• 3 MHz micro‑convex – medium & large dog abdomen, basic cardiac

• Linear probe – MSK, high‑definition abdomen

If you’d like to explore which probe suits each application, I can break that down too.

Key Features

• 15” LED monitor (0–30° tilt) with full‑screen mode

• Built‑in battery with ≥2 hours runtime

• Rotatable LED screen (30°)

• Multiple probes available (THI on all)

• Two probe connectors

• 320 GB hard disk with USB ports

• Super lightweight—just 7.5 kg

Breakthrough Imaging Technologies

• Space Compound Imaging – enhances image quality without reducing frame rate

• SRA (Speckle Reduction Algorithm) – suppresses noise for clearer tissue definition

• FHI (Flexible Harmonic Imaging) – maintains resolution in larger or difficult‑to‑image patients

• X‑Contrast – fast contrast adjustment for sharper 2D imaging

• Q‑Flow – adaptive colour detection for improved low‑velocity flow sensitivity

• Auto IMT – automatic intima thickness measurement

• Q‑Beam – quad‑beam technology for higher resolution and faster frame rates

• Q‑Image – advanced algorithms for enhanced clarity

• Super Needle (Optional) – improved needle visibility up to ±30°

If you’re curious about how harmonic imaging improves ultrasound quality, I can explain that too.

Specifications

• Imaging Modes: 2D, 3D/4D

• Features: 4D Virtual HD (HDLive), M‑Mode, Anatomical M‑Mode, Colour Doppler, CW Doppler, PW Doppler, Power Doppler, Directional Colour Power Doppler, Tissue Doppler, HPRF, Compound Imaging, Speckle Reduction, Tissue Harmonics, IMT, Elastography, Panoramic, Auto Optimization, Needle Visualisation, DICOM, 3D/4D

• Monitor: 15” LED, 1024 × 768

• Outputs: VGA, DVI, USB, Composite Video

• Export: DICOM, Network Storage, AVI, BMP, USB

• USB Ports: 4

• DICOM: Store, Print, Worklist, MPPS, Structured Reports

• PC Export Formats: AVI, JPG, BMP

• Ethernet: Yes

• Power: 100–240 V, 50/60 Hz

• Battery: Yes

• HDD: 320 GB

• Max Cine Memory: 256 frames

• Weight: 16.5 lbs (approx. 7.5 kg)

• Controls: Trackball

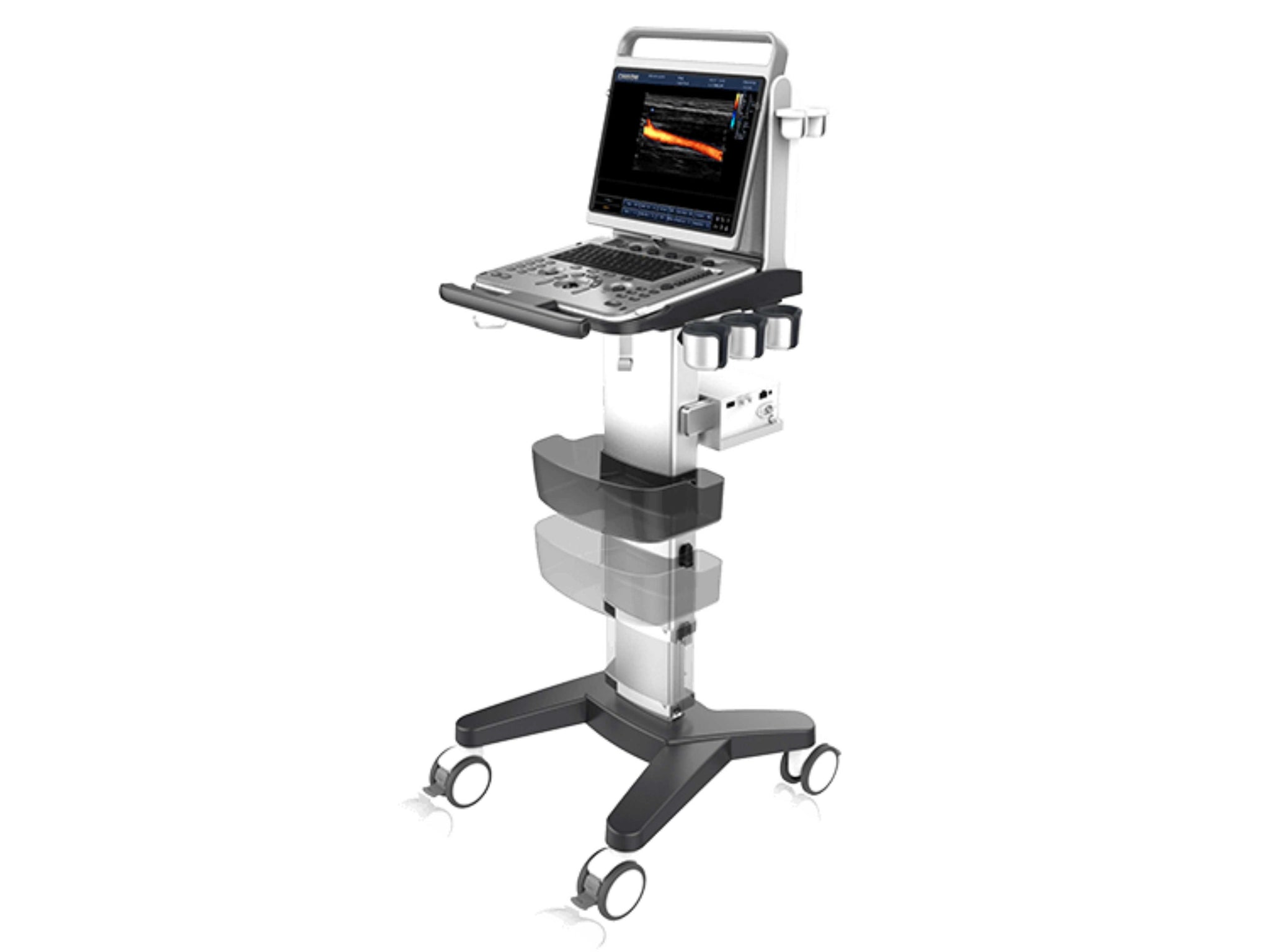

• Accessories: Printer, Footswitch, VCR, DVD‑Recorder, Cart

• Manufacturer: Chison

Warranty

• 2‑year standard warranty for base unit and 2D probes
