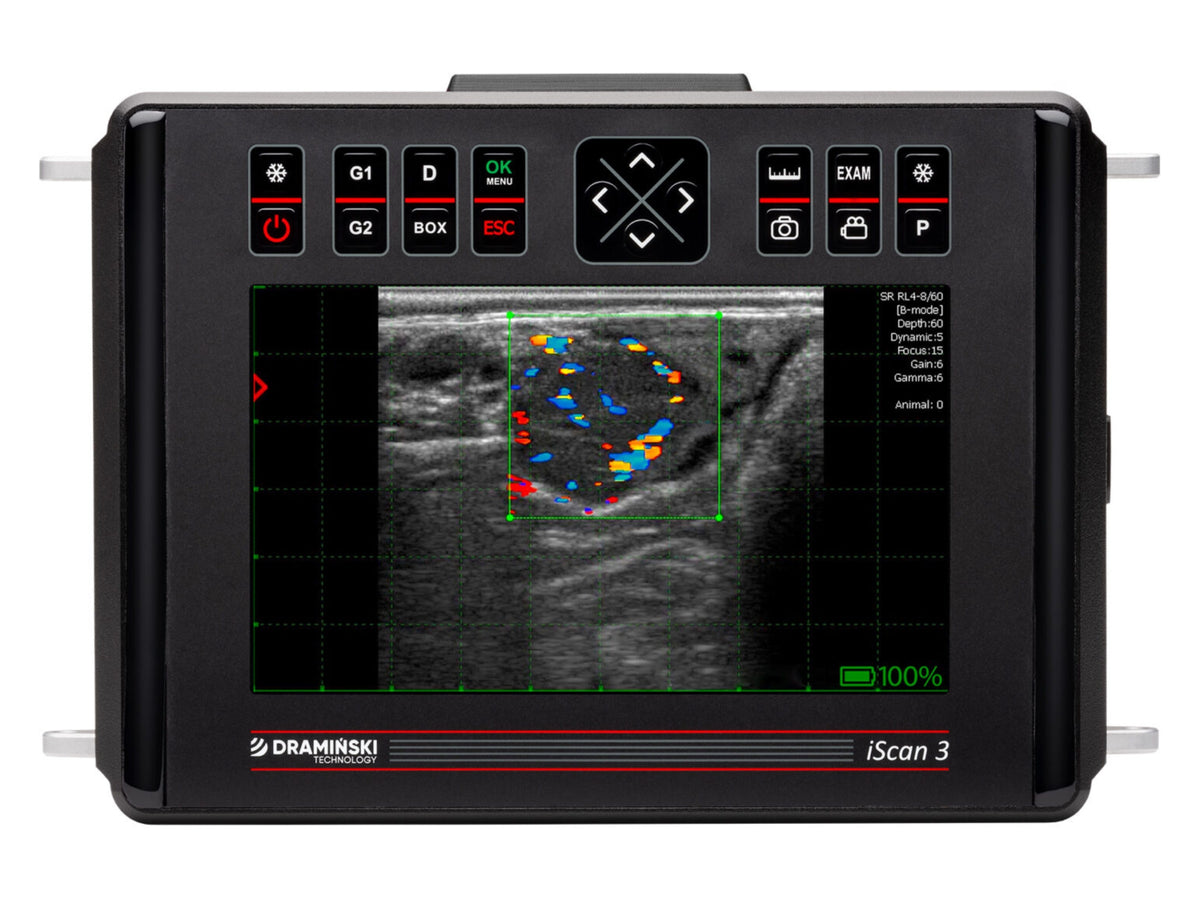

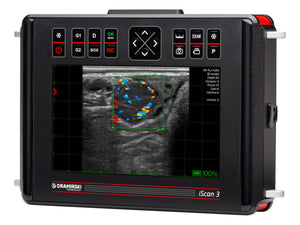

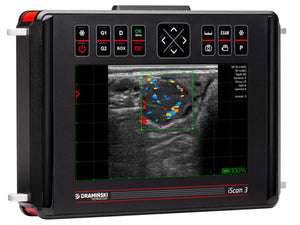

Draminski iScan 3 Ultrasound Scanner

£2,100.00 GBP - £7,095.00 GBP

Excl VAT 20% - calculated at checkout

The iScan 3 is a next‑generation portable ultrasound system engineered specifically for animal diagnostics, with a strong focus on livestock health and reproductive management. Built for field veterinarians who demand reliability, precision, and mobility, the iScan 3 delivers outstanding imaging performance across a wide range of clinical applications.

Powerful, Versatile Diagnostics

A continually expanding range of electronic, broadband, interchangeable probes allows you to tailor the device to each patient and species. The iScan 3 supports examinations including:

Reproductive system evaluation
Blood flow diagnostics of the corpus luteum
Pregnancy detection and monitoring
Fetal viability and sex determination
Lung, digestive tract, udder, and locomotor system assessments

This versatility makes the iScan 3 an essential tool for modern herd management and breeding programs.

Colour Doppler for Early, Accurate Insights

The integrated Colour Doppler mode enables assessment of corpus luteum activity as early as 18–20 days post‑insemination. This early insight helps identify non‑pregnant cows before the next estrus cycle, improving herd fertility outcomes. With instant activation and optimised presets, the iScan 3 ensures smooth, efficient workflow in any environment.

Wireless Image Transfer

The built‑in WiFi module allows seamless image transmission to:

Tablets
Smartphones
iLens wireless goggles

This makes it easy for animal owners, students, or assistants to view live images from a safe distance, enhancing collaboration and teaching opportunities.

Designed for Comfort and Efficiency

The iScan 3 is built around the needs of field veterinarians:

Ergonomic keyboard with quick‑access shortcuts
Customizable descriptions and measurement presets
Reinforced 7-inch LCD display with wide viewing angles
Durable construction for demanding outdoor conditions

Every detail is optimised to reduce fatigue and increase diagnostic confidence.

Lightweight, Field‑Ready Construction

Despite its robust capabilities, the iScan 3 weighs just 2.6 kg (including probe and battery). Its compact dimensions — 27 cm (W) × 18 cm (H) × 7 cm (D) — make it easy to carry, transport, and operate during long days in the field.

Advanced Imaging Capabilities

Imaging Modes: B‑Mode, Colour Doppler
Grayscale: 256 shades
Gamma: 10 settings
Cine Loop: 128 frames
Post‑processing: Yes

Image Management

Freeze image
Dimensioning
Save to internal memory
Export to external storage
Wireless transfer to mobile devices

Measurements

Distance, area, ellipse area, volume, sphere volume, grid, and a full suite of obstetric measurements (Cow CRL/BPD, Equine BPD/ED/VD, Sheep CRL, Lama BPD, Sow CRL), plus backfat + muscle evaluation.

Technical Specifications

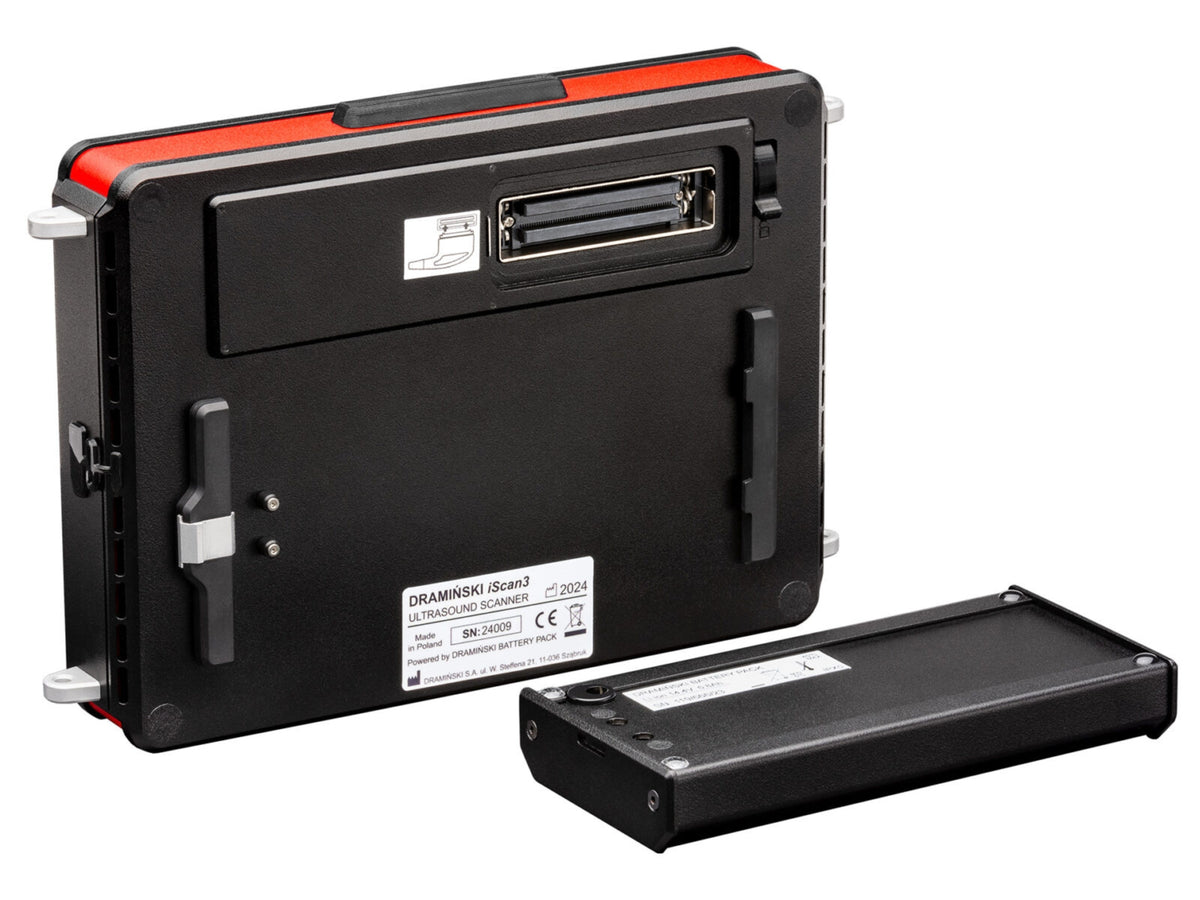

Battery

Operating time: up to 4 hr 30 min
Charging time: up to 4 hr

Display

7.0″ LCD with LED backlight
Resolution: 800 × 480 px

Ingress Protection

IP32 rating

Dynamic Focusing

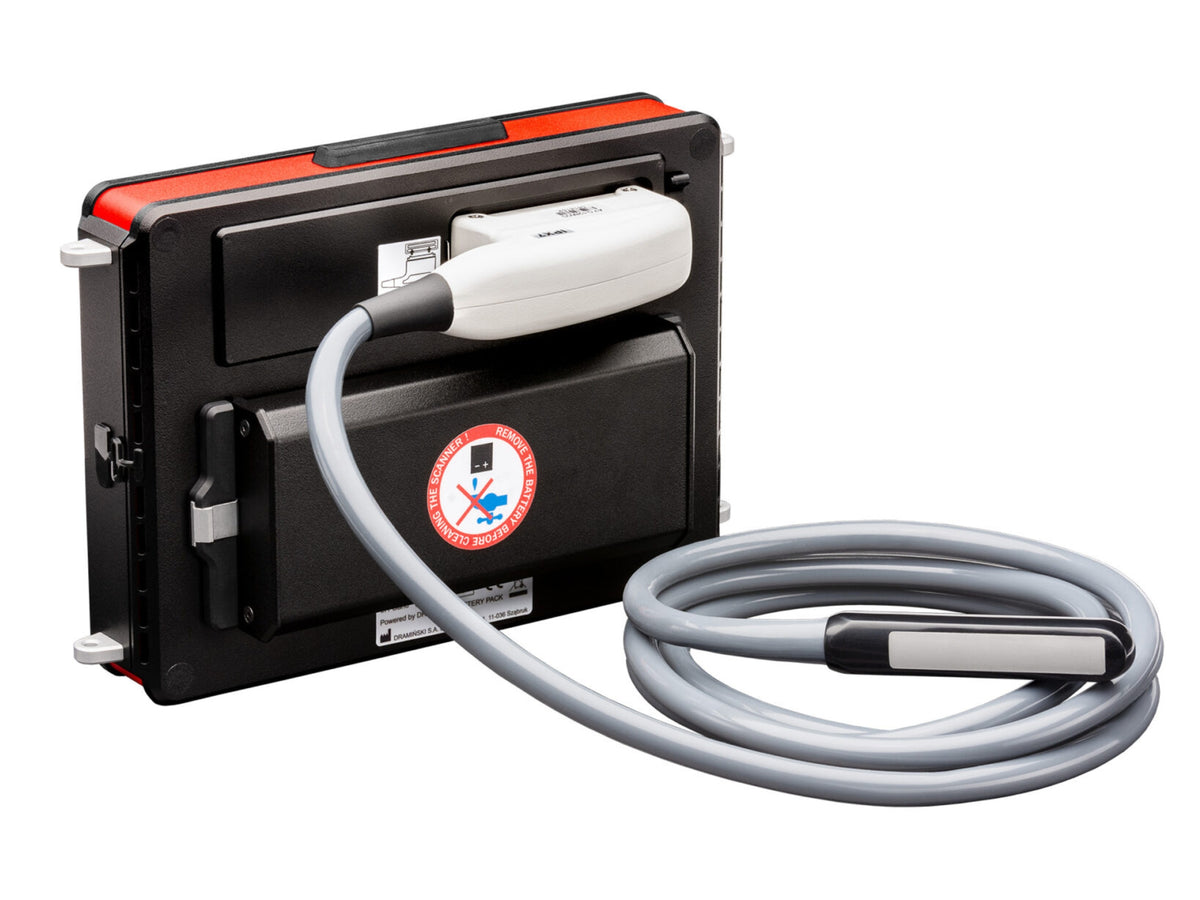

Compatible Probes

Electronic, broadband, interchangeable:

Head 156 – Convex 5 MHz R50
Head 181 – Microconvex 6.5 MHz R11
Head 196 – Linear abdominal 8 MHz L40
Head 212 – Rectal convex 5 MHz R60
Head 223 – Rectal linear 7 MHz L60

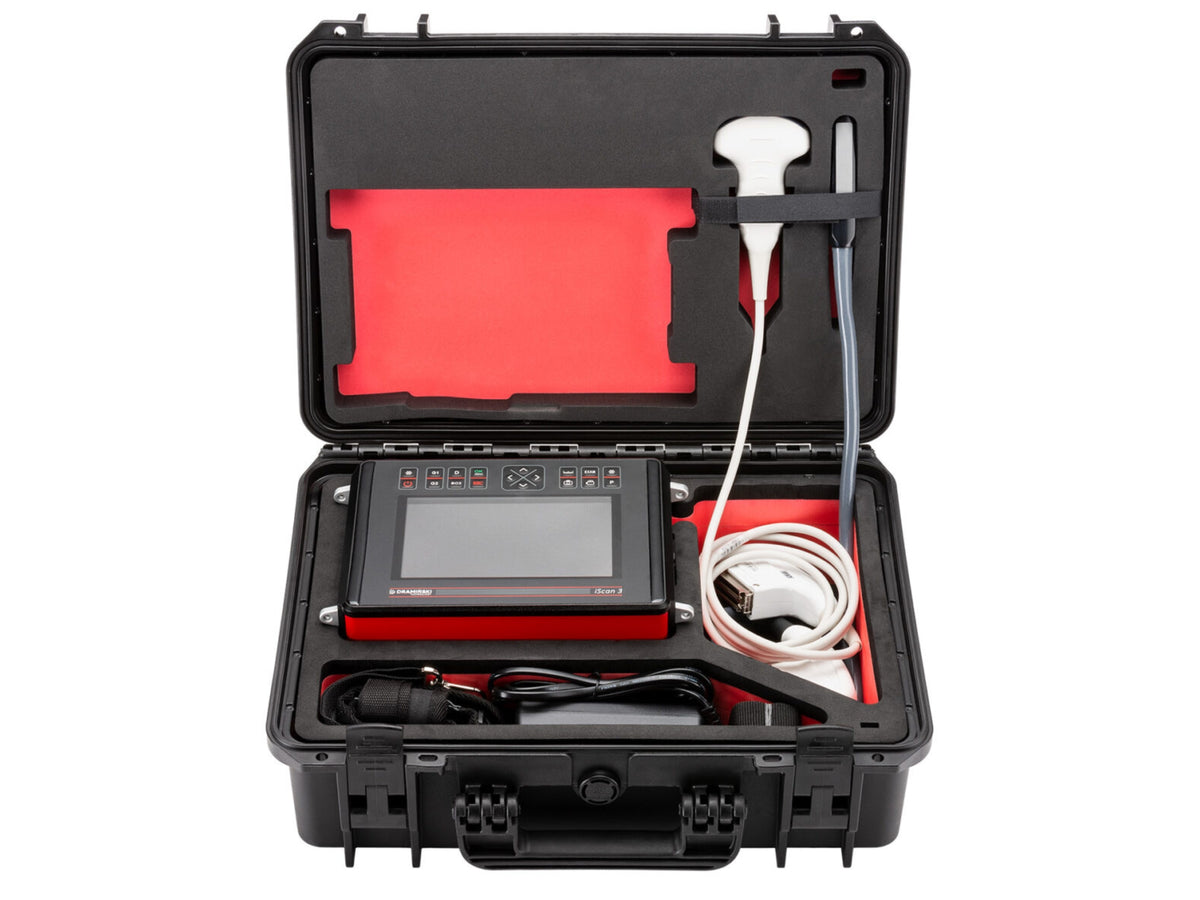

What’s Included

iScan 3 portable ultrasound scanner
Probe of your choice*
Battery
Battery charger
Carrying straps
Transport box
User manual (USB)

*Choose from the full range of electronic, broadband, interchangeable probes listed above.

Optional Accessories

iLens wireless goggles
Harness
Extension for Convex Rectal Probe 212
Ovum Pick‑Up system (without transducer)
Standoff
Suncover

N-ULT-30-10-025
