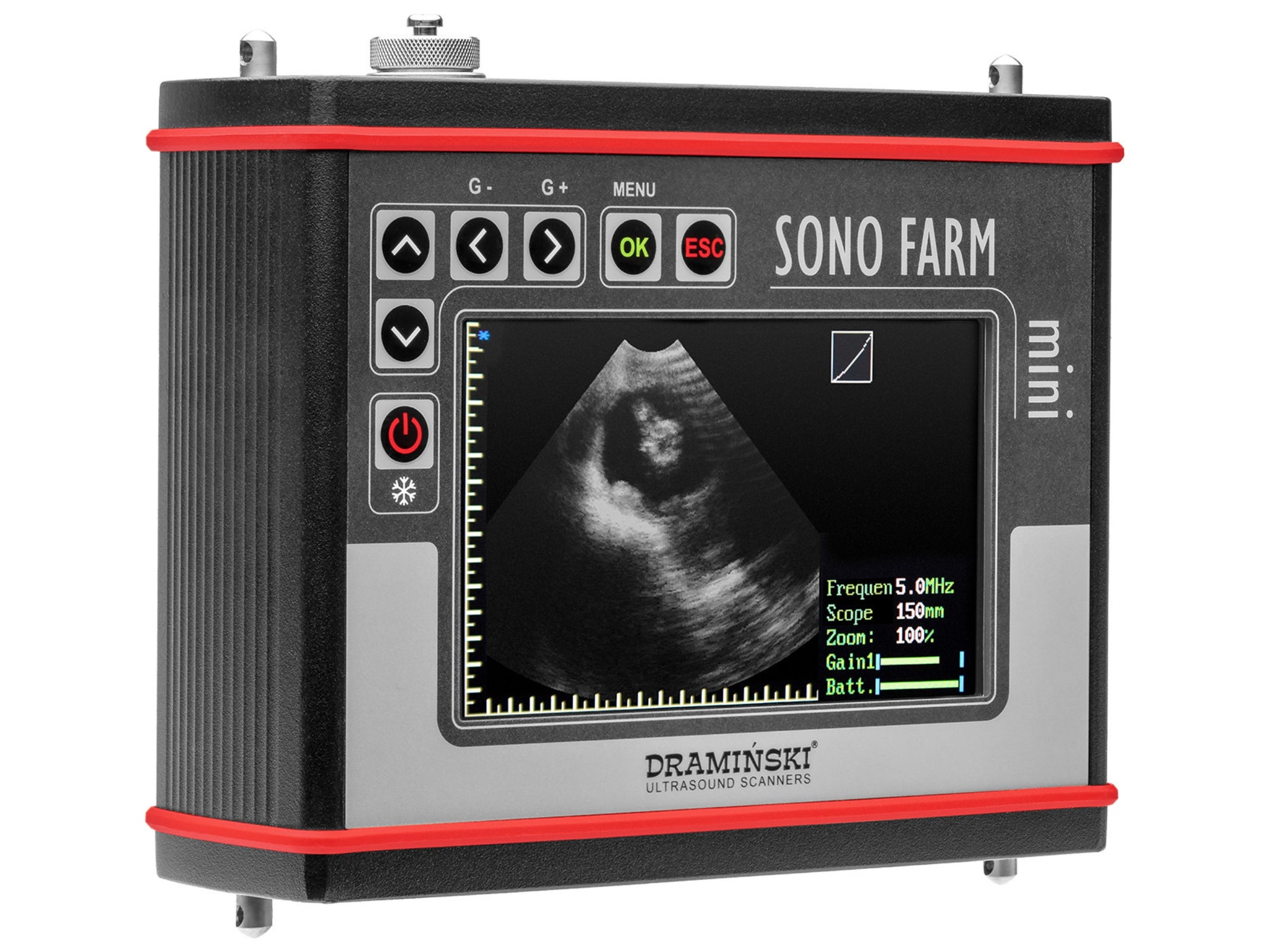

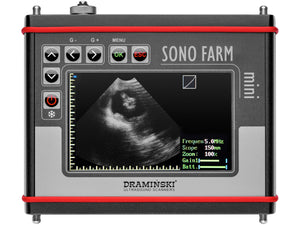

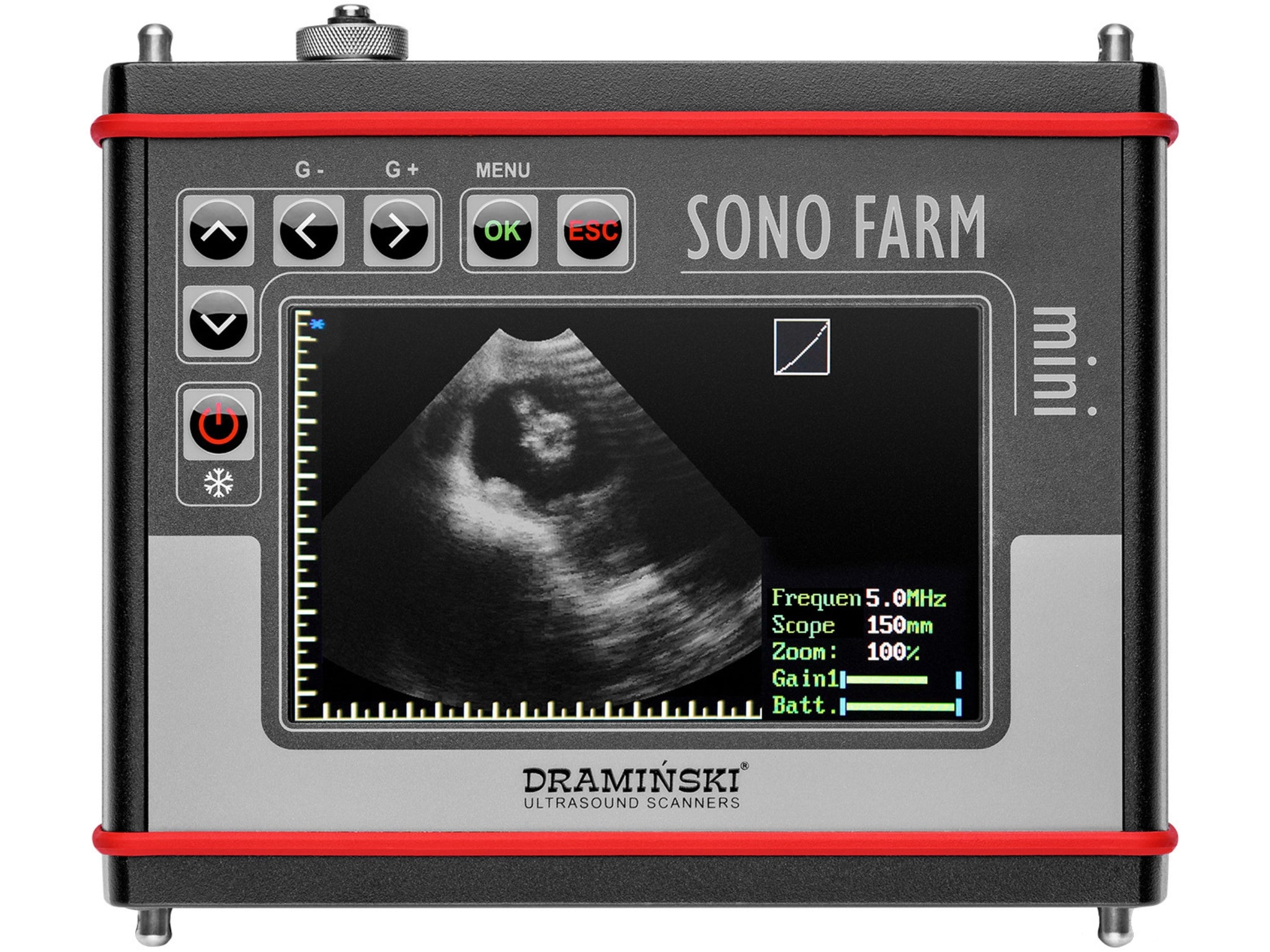

If you’re a modern breeder who values independence, efficiency, comfort, and safety, the SonoFarm mini is designed with you in mind. This compact, durable ultrasound scanner gives you full control over reproductive management, helping you make faster, more informed decisions that directly improve the profitability of your farm.
Early pregnancy detection is one of the most important factors influencing breeding success. With the SonoFarm mini, you can quickly assess the reproductive status of your animals, monitor pregnancy development, and identify non‑pregnant females—all of which help optimise herd management and improve economic performance.
Owning your own ultrasound scanner also strengthens your farm’s biosecurity. By avoiding shared equipment, you significantly reduce the risk of introducing dangerous pathogens such as parvovirus, influenza, salmonellosis, chlamydiosis, brucellosis, FMD, rotaviruses, and circoviruses. Protecting your livestock begins with controlling what enters your farm.
Lightweight, Durable, and Field‑Ready
Weighing just 1.55 kg and measuring 17.5 × 14.5 × 6 cm, the SonoFarm mini is exceptionally portable. Miniaturised electronics and a rugged, easy‑to‑clean casing make it ideal for field conditions and extreme temperatures.
A powerful external battery provides up to 6 hours of operation. With a spare battery (charging time approx. 2.5 hours), you can continue scanning with only a 5‑second swap.
Designed for Pregnancy Detection in Multiple Species
The SonoFarm mini is built for detecting pregnancy in:
-
Sheep
-
Goats
-
Pigs
-
Cows

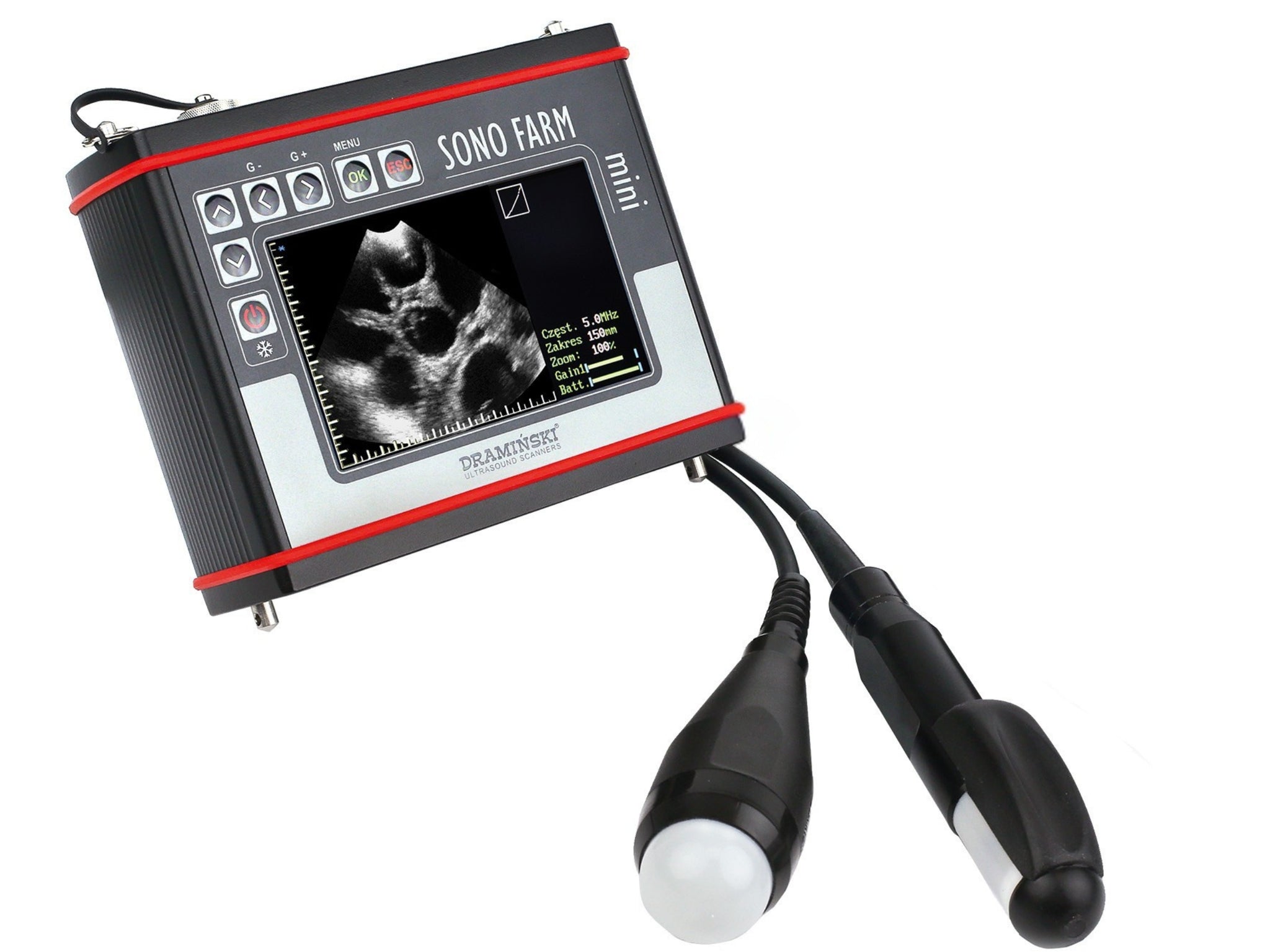

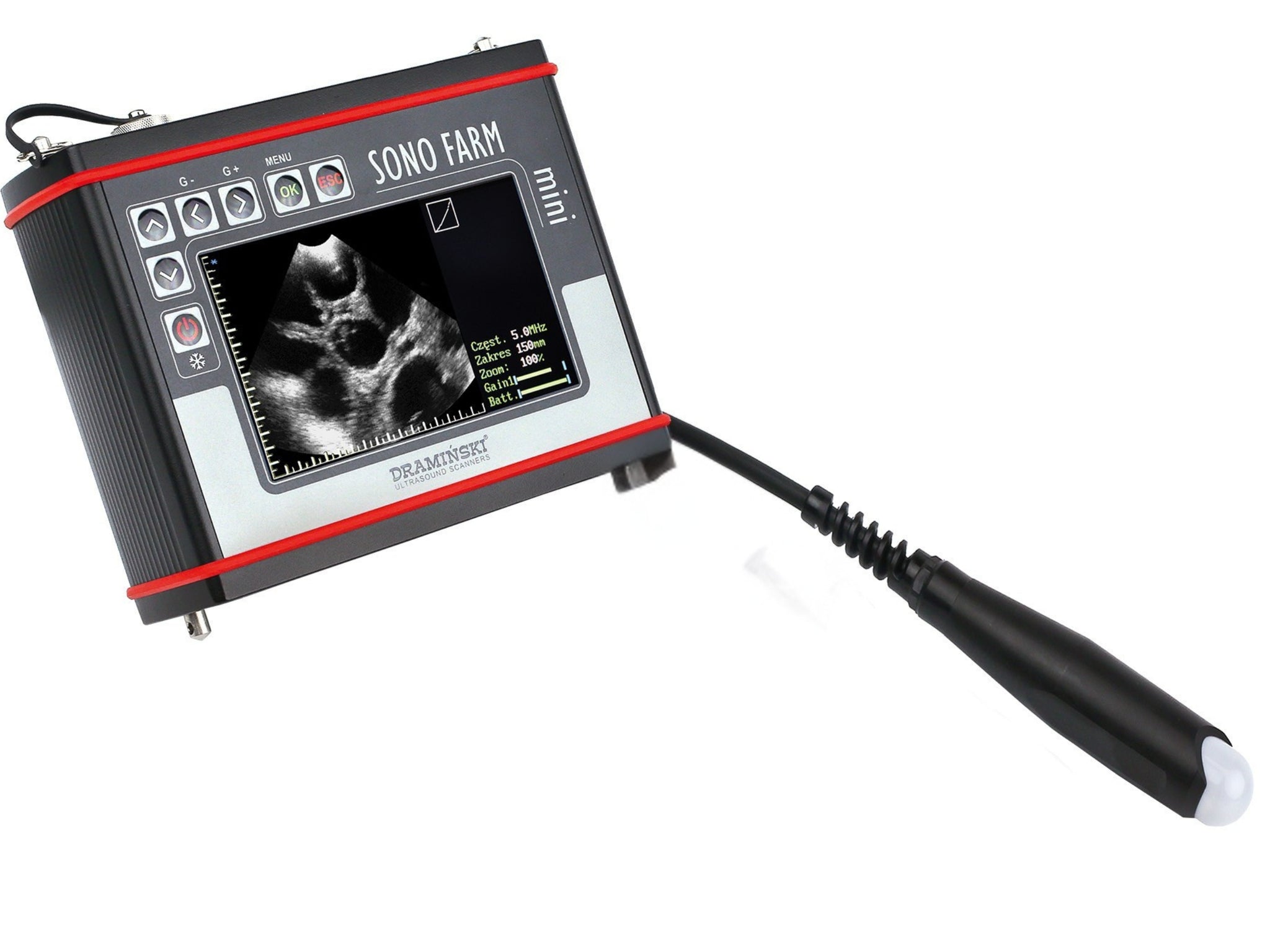

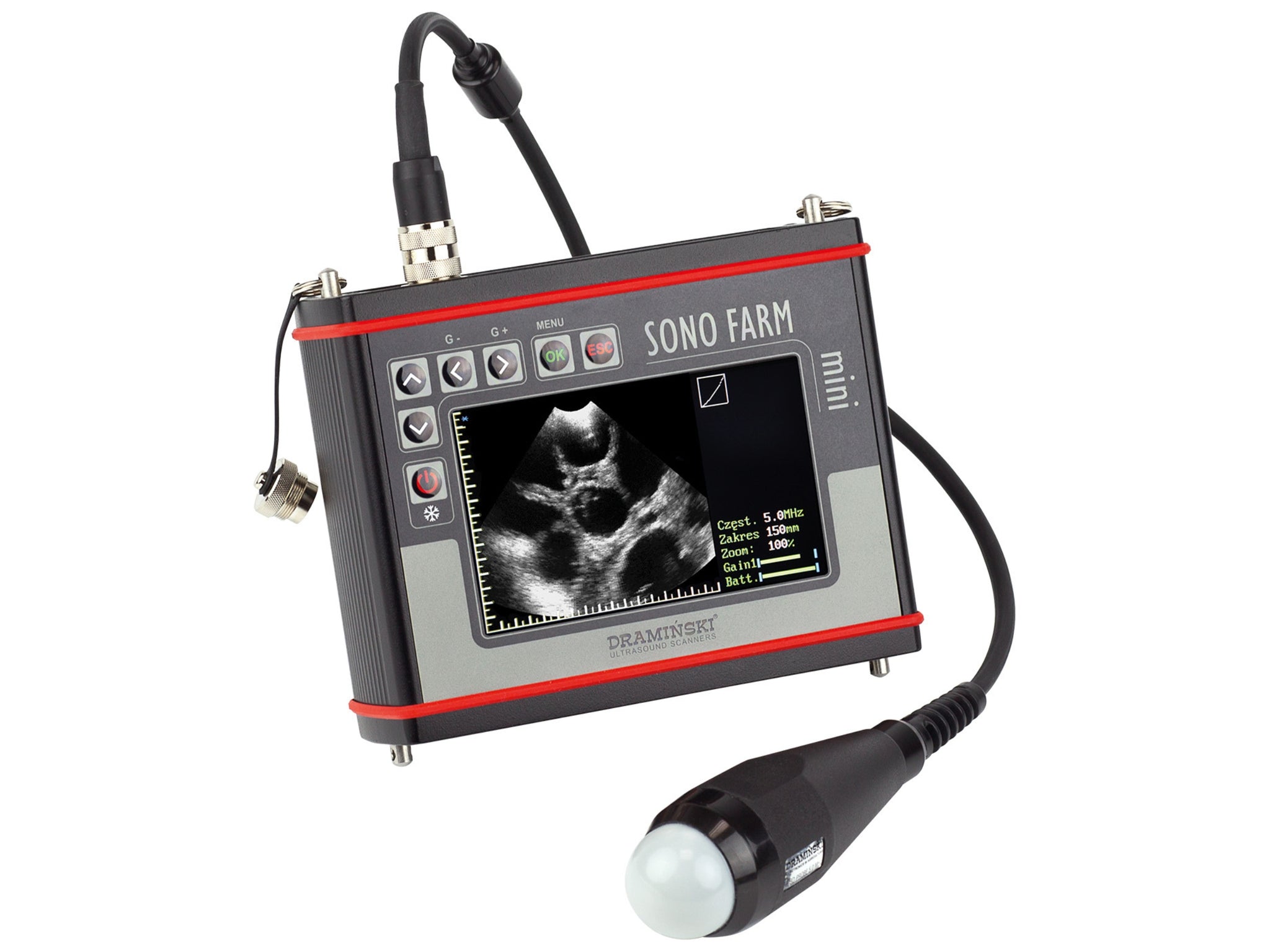

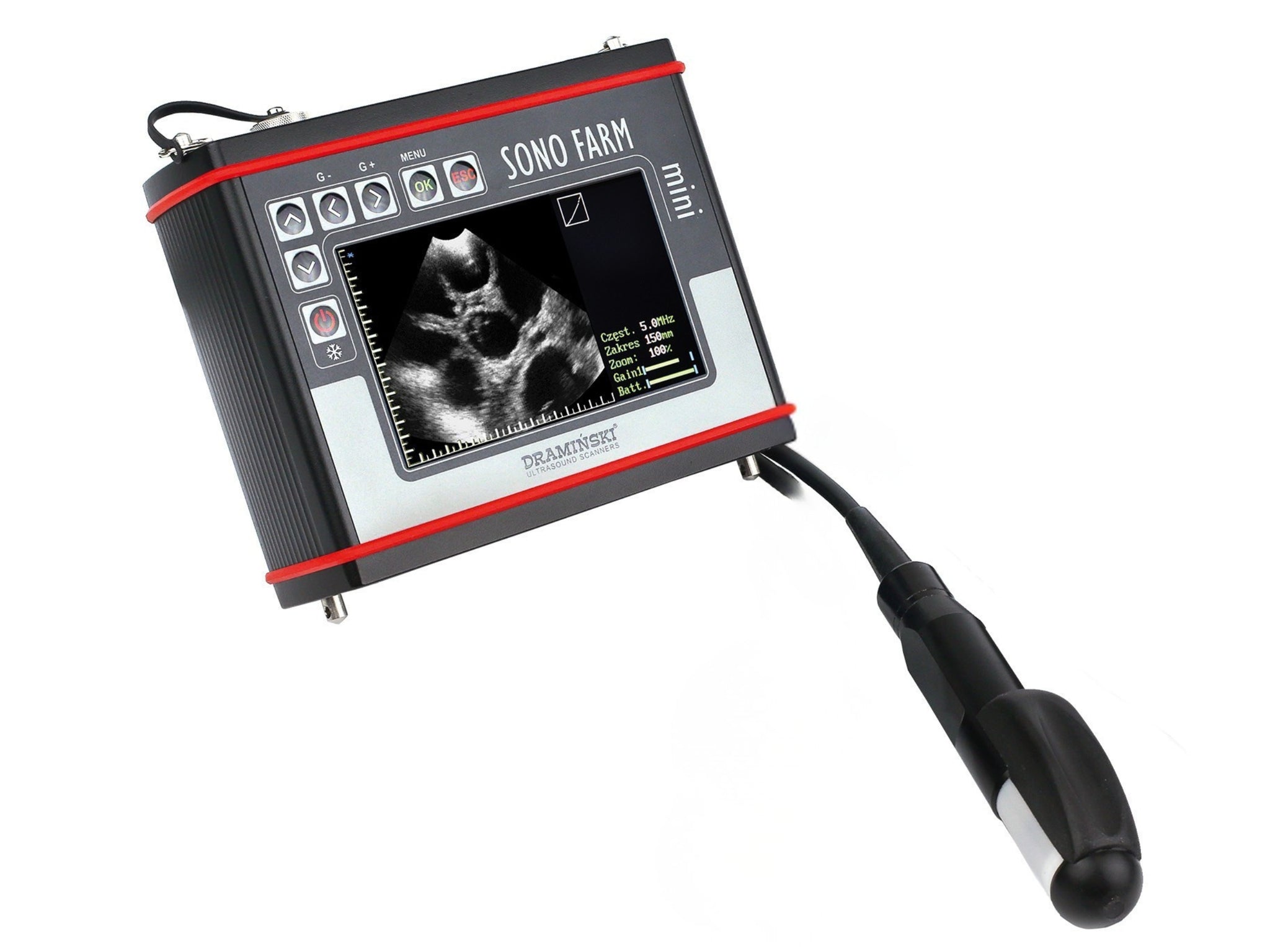

Depending on the probe—rectal, abdominal, or the versatile “Down Fire” probe—you can perform both abdominal and rectal examinations. The “Down Fire” probe is especially useful for insemination specialists working with multiple species.
Simple, Intuitive Operation
The scanner includes all essential functions for pregnancy detection:
-
B‑mode imaging
-
Freeze
-
Gain
-
Focus
Its intuitive menu ensures quick access to all necessary options, even for users with minimal ultrasound experience.
Built to Last
The aluminium body ensures long‑term durability, while the reinforced plastic casing protects the device from harsh temperatures and field conditions. Rated IP65, the SonoFarm mini is resistant to dust and water.
A 2‑year warranty reflects the reliability and craftsmanship of DRAMIŃSKI ultrasound systems.
Each Set Includes
-
SonoFarm mini ultrasound scanner
-
Mechanical probe of your choice
-
External battery
-
Battery charger
-
Carry straps
-
User manual
-
Transport case
Technical Specifications
-
Imaging Modes: B‑mode
-
Frequency Range: 3–7 MHz
-
Compatible Probes: Mechanical abdominal 3–7 MHz; “Down Fire” mechanical 3–7 MHz; Mechanical rectal 3–7 MHz; Long mechanical rectal 3–7 MHz
-
Dynamic Focus: No
-
Image Management: Freeze, Zoom 100–160%, Left‑right invert
-
Imaging Adjustments: Not available
-
Presets: Not available
-
Postprocessing: No
-
Measurements: Distance, Grid
-
Workflow Tools: Easy, quick disinfection
-
Display: 5″ LED LCD, 500 cd/m², 800 × 480 px
-
Control Panel: Membrane keyboard
-
Memory: Not available
-
Export Formats: Not available
-
Data Export: Not available
-
Multimedia Ports: None
-
Wi‑Fi: No
-
Power Supply: External battery
-
Battery Life: Up to 6 hours
-
Charging Time: Up to 2 h 30 min
-
Boot Time: 5 seconds
-
Dimensions: 17.5 × 14.5 × 6 cm
-
Weight: 1.55 kg (with probe & battery)
-
IP Rating: IP65
-
Accessories: Probe handle, shade cover, carry straps, waist belt
-
Suitable For: Goats, cows, sheep
-
Specialisation: Reproduction
