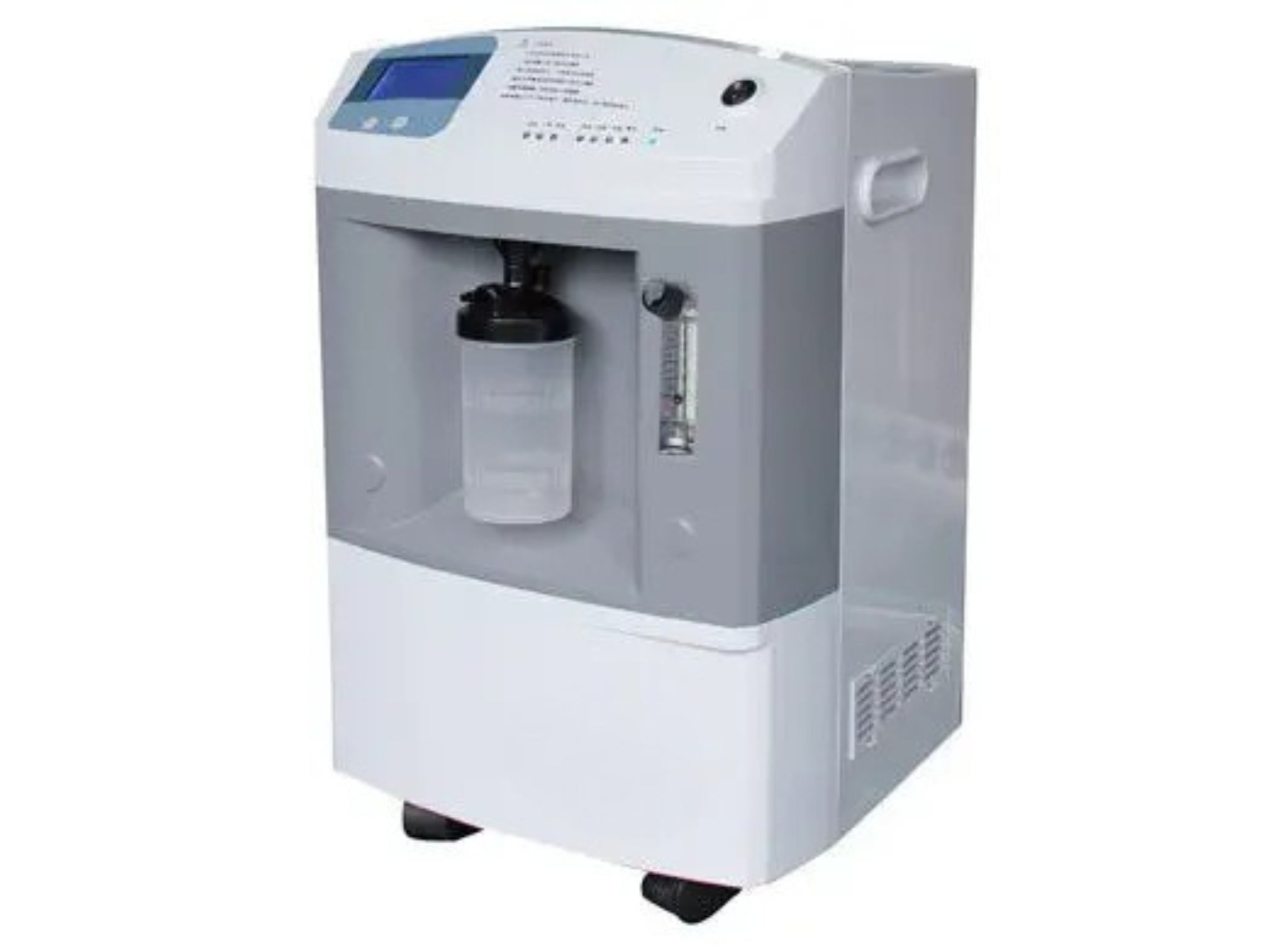

The Jay 10 Oxygen Concentrator delivers high‑capacity oxygen output with reliable purity, making it suitable for a wide range of veterinary clinical applications. It includes optional features such as a nebuliser, low‑purity alarm and fingertip pulse oximeter for on‑site patient monitoring. The system also provides intelligent maintenance alerts and temperature safety warnings for dependable long‑term operation. A compact LCD screen displays all key operational information for efficient daily use.
Key Features
- Flow rate options: 0–5 L/min, 0–8 L/min, 0–10 L/min
- Oxygen purity: 93% (±3%)
- Outlet pressure: 0.04–0.07 MPa
- Sound level: ≤50 dB
- Power consumption: ≤500 W
- LCD display showing:
- Switch times
- Operating pressure
- Current working time
- Accumulated working time
- Timer settings from 10 minutes to 40 hours
- Alarm system:
- Power failure alarm
- High‑ and low‑pressure alarms
- Maintenance alarm after 3000 hours of use
- High‑temperature alarm for internal temperatures above 50°C
- Net weight: 28 kg
- Size: 365 × 375 × 600 mm
- Optional low oxygen purity alarm:
- Blue indicator: purity >82%
- Red indicator: purity <82%
- Suitable for veterinary use only
Optional Features
- Nebulizer (atomization)
- Low‑purity alarm / low‑flow alarm
- High‑temperature alarm
- Fingertip pulse oximeter for on‑site oxygen‑saturation monitoring
Warranty
- 1‑year warranty
