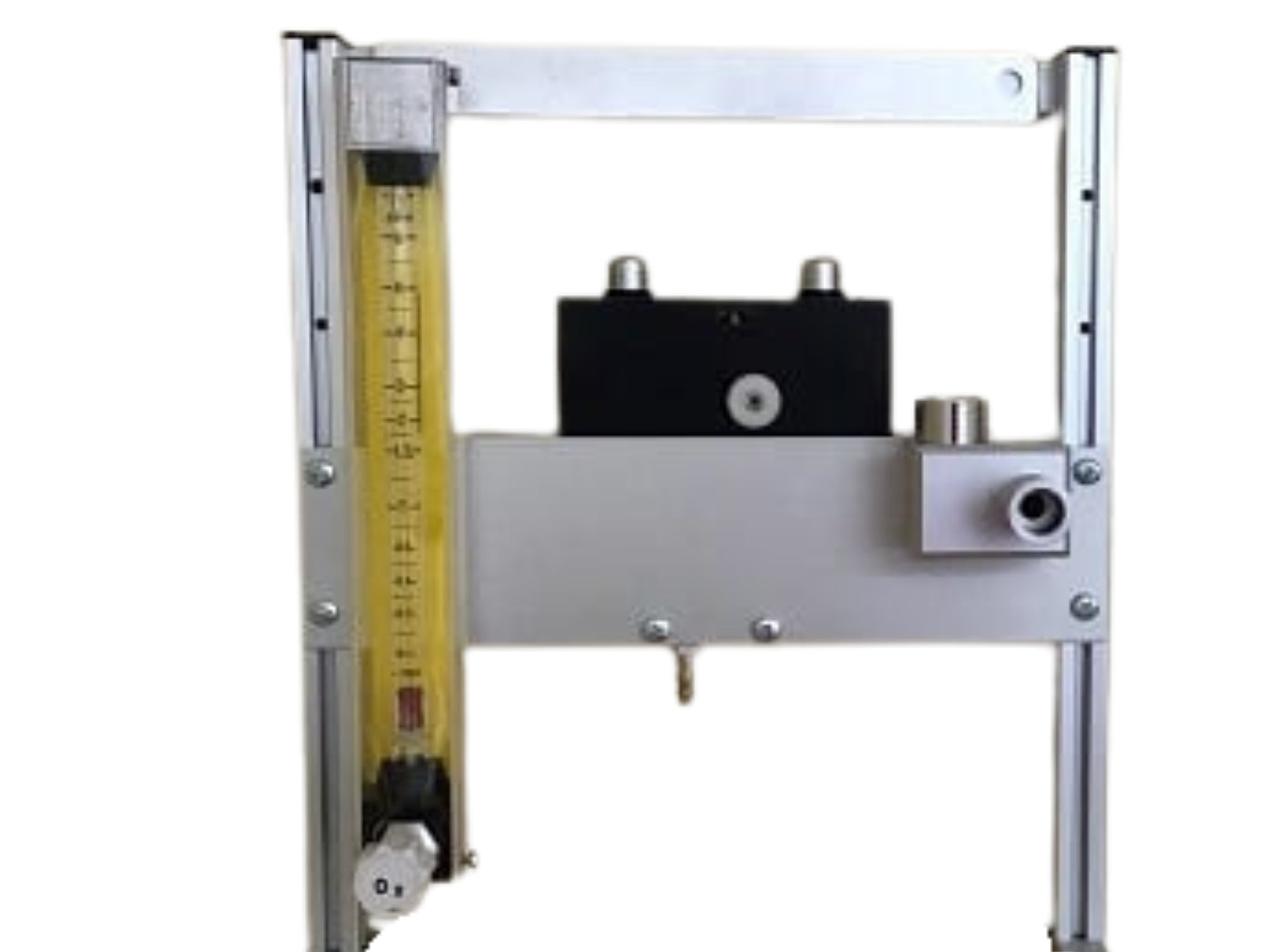

The Micronova Wall Anaesthetic Machine is an ultra‑compact, fully featured wall‑mounted anaesthesia unit designed for all RCVS‑accredited Core, General Practices and Veterinary Hospitals (Tiers 1, 2 and 3). With its integrated Selectatec mounting position and minimal footprint, it offers exceptional functionality in the smallest possible space. The system accommodates any Selectatec vaporiser and supports optional Iso‑Miser circle absorbers without additional spacers or connectors.
- Ultra‑compact 30 cm × 30 cm wall‑mounted design
- Integrated Selectatec vaporiser mount
- Compatible with all Selectatec vaporisers
- Optional Iso‑Miser circle absorber fits directly onto the fresh‑gas outlet
- Enables rapid vaporiser fitting/removal, reducing the number required in practice
- Dimensions: Height 30 cm, Width 30 cm, Depth (including vaporiser) 21 cm
- Vaporisers not included
Key Features
- High‑accuracy Rotameter‑type flowmeters
- Flow ranges optimised for general veterinary use
- Oxygen flow range 0.1 to 8 L/min, with lower 60% showing 0.1–2 L/min for enhanced low‑flow precision
- Greatly improved resolution at low flow rates
- Supplied with a corner Fresh Gas Outlet featuring a user‑adjustable Emergency Oxygen Flush for a wide range of species
Prices Include
- Colour‑coded gas supply hose (customer‑specified length) with indexed BS probe
- Inlet and outlet fittings for cage‑mount vaporiser, with optional Selectatec quick‑fit/quick‑release vaporiser mounting
- Wall‑mounting hardware
- 1‑year warranty
