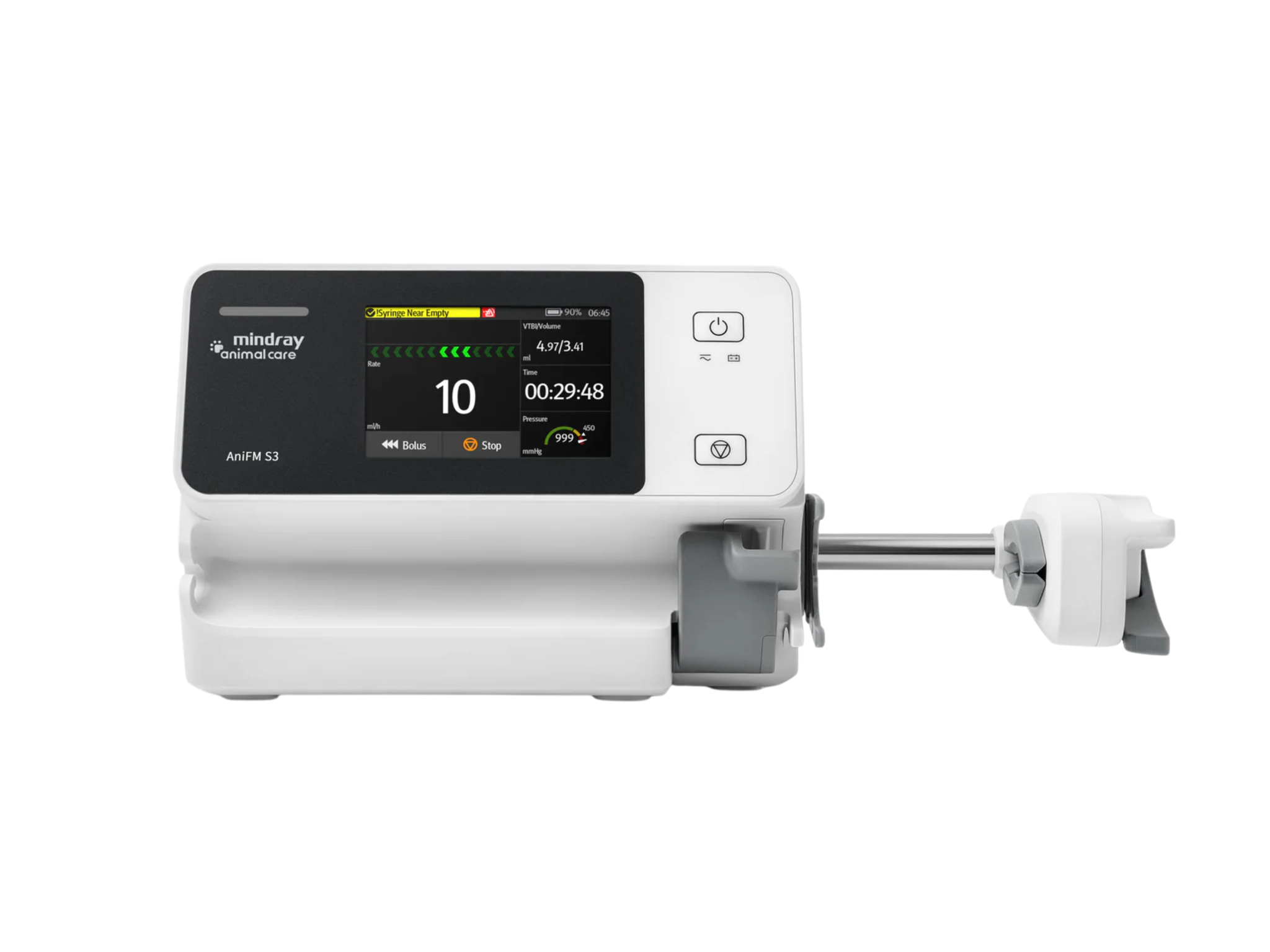

The Mindray AniFM S3 Veterinary Syringe Pump is designed to deliver smooth, accurate infusion therapy for animal patients. Equipped with six advanced technologies, it combines precision, safety, and intelligent clinical workflow support in a compact, easy-to-use system.

6 Advanced Technologies:

•  Suspension System = Clever floating-pump design to maintain infusion accuracy at ≤ ±4.5%, supporting stable delivery under varying conditions. Helps reduce accuracy loss during prolonged infusions or when consumable specifications vary.
•  Certified Blood Transfusion = Optimised to reduce red blood cell lysis. The suspension system applies even force to the infusion line to help protect blood cells* and minimise risks such as hyperkalemia, acute kidney injury, and thrombosis caused by cell damage.
•  Rotating Mounting Cube = Unique mounting mechanism allowing the pump to be attached at any time, in any position. A simple button press enables fast fixing on cages or horizontal/vertical poles.
•  Automatic Brake = Instant stop to prevent accidental delivery. Reduces the risk of unintentional bolus caused by pump drops or external impact.
•  Dynamic Pressure System (DPS) = Dashboard-style pressure display for pre-alarms of occlusion changes. Enables intelligent troubleshooting and automatic restart when appropriate.
•  Multi-Devices Interconnection = Built-in Wi-Fi allows connection to the Central Monitoring System (CMS) for centralised management of monitoring, anaesthesia, and infusion data. Supports viewing and managing infusion status across wards, including isolation areas, infusion rooms, and in-patient departments.

Product Features:

•  Weight: 1.7 kg.
•  Screen: 3.5″ touchscreen, TFT colour LCD.
•  Accuracy Rate: ≤ ±1.8%.
•  Flow Rate: 0.10–2300 ml/h; 0.10–2000 ml/h for blood transfusions.
•  Increments: 0.01 ml/h (0.10–99.99 ml/h); 0.1 ml/h (100–999.9 ml/h); 1 ml/h (1000–2300 ml/h).
•  Preset Volume (VTBI): 0.10–9999.99 ml (increment 0.01 ml).
•  Preset Time: 00:00:01–99:59:59.
•  KVO: 0.01–5.0 ml/h (increment 0.01 ml).
•  Purge Rate: 0.01–2300 ml/h.
•  Bolus Rate: 0.01–2300 ml/h (automatic or manual).

Modes:

• Rate Mode
• Dose Mode
• Time Mode
• Dose Time Mode
• Sequential Mode
• Intermittent Mode
• Loading Dose Mode
• Ramp Mode
• Micro-Infusion Mode
• Supports: enteral nutrition feeding, blood transfusions.

Additional Functions:

• Air bubble detection.
• History log (up to 5,000 events).
• Drug library (up to 5,000 drugs, 30 categories, colour-coded drug names).
• Audio & visual alarms.

Battery:

• Operating time: 6.5 hours.
• Charge time: 5 hours.
