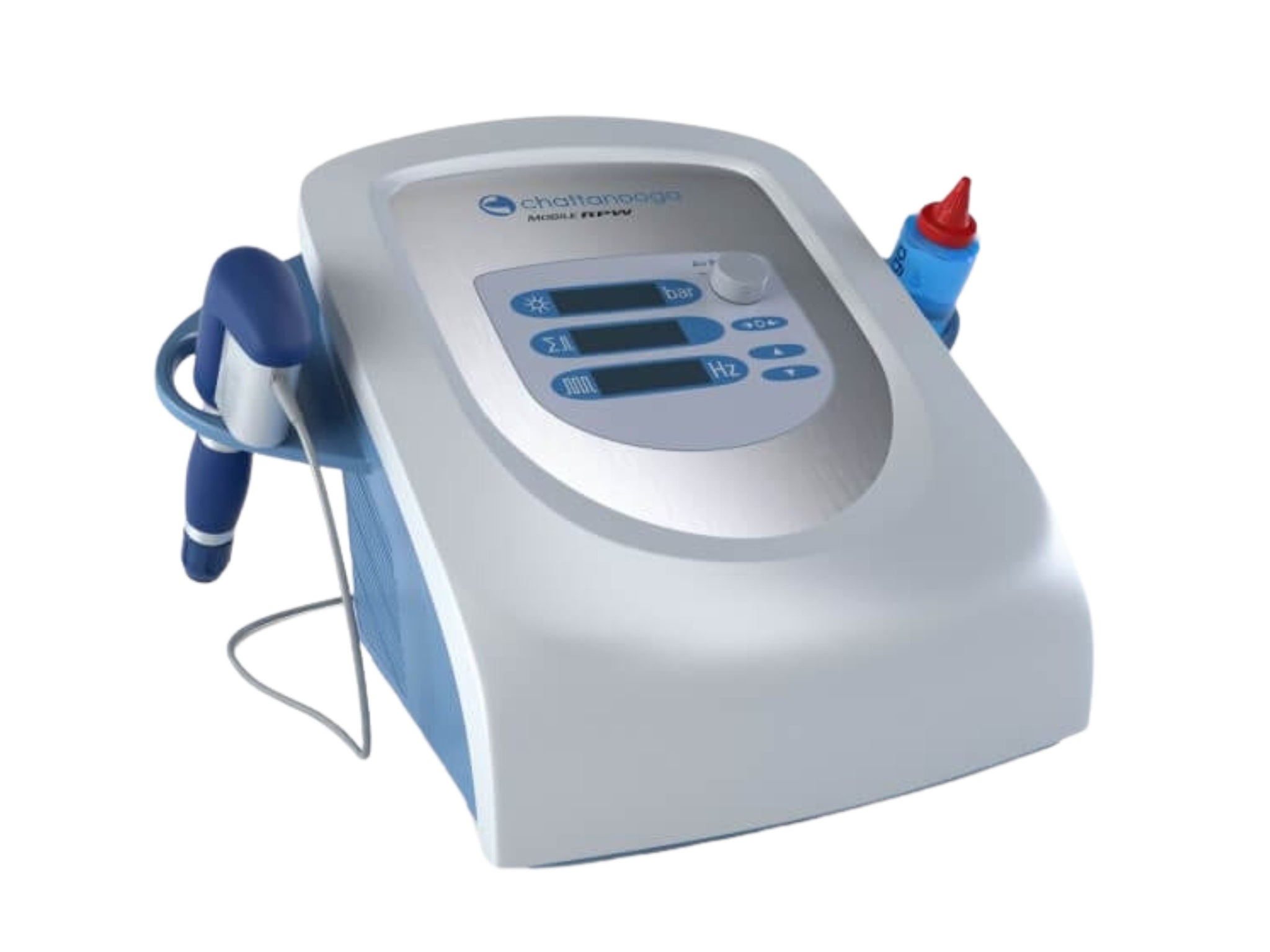

Chattanooga’s Radial Pressure Wave (RPW) technology is now fully mobile. The Mobile RPW unit combines portability, power and user‑friendly operation in a compact, lightweight design. Ideal for use in clinics, physiotherapy settings, sports fields and veterinary environments where powerful shockwave therapy is needed on the move. An integrated, quiet compressor and ergonomic interface ensure efficient treatment delivery with clear visibility of all working parameters.

Key Features and Benefits

Portable, Compact Design

• Lightweight and compact radial pressure wave system
• Easily transported for use in clinics, sports facilities or ambulatory veterinary work
• Quiet built‑in compressor allows operation without external air supply
• Ergonomic controls with illuminated LED display for pressure, frequency and pulse count
• Treatment is activated via a trigger mechanism on the handpiece

How RPW Therapy Works

• Non‑invasive treatment: probe applied directly to the skin
• Typically requires light patient sedation in animals due to vibration and discomfort
• Provides two main therapeutic effects:
  • Desensitisation of nerve endings for rapid pain relief and reduced muscle spasm
  • Stimulation of blood flow and tissue healing

Applications

Human Clinical Applications

Suitable for a wide range of healthcare settings including:

• Orthopaedics
• Physiotherapy
• Rheumatology
• Sports medicine
• Chiropractic clinics
• Acupuncture
• Aesthetic treatments
• Podiatry

Common indicated conditions include:

• Plantar fasciitis
• Heel spurs
• Achillodynia
• Trochanteric hip pain
• Jumper’s knee
• Shin splints
• Epicondylitis
• Soft‑tissue stimulation
• Cellulite therapy

Veterinary Applications

Primary Equine Indications

• Back injuries: muscle and ligament strains/sprains, kissing spines, sacroiliac injury
• Back pain or spasm secondary to lameness
• Ligament injuries:
  • Proximal suspensory desmitis (forelimb and hindlimb)
  • Check ligament, annular ligament and collateral ligament injuries
  • Patellar ligament injuries
• Tendon injuries:
  • Superficial and deep digital flexor tendon injuries
  • Supports improved tendon fibre organisation during healing

Veterinary Treatment Guidelines

• Shots per treatment: 1500–2000
• Treatment frequency: Once weekly for 3–6 sessions
• Post‑treatment: Rest required after first session
• Pressure settings: 3–4 bar where tolerated
• Frequency settings:
  • Chronic: 20 MHz
  • Acute: 15 MHz

Maintenance

• Clean the barrel weekly with a cleaning brush
• The projectile/guide tube requires replacement every 1 million shots
  • Veterinary usage typically requires replacement every ~3 years
  • Spare set included for 2 million shots total
  • User‑replaceable; cost approx. £230 + VAT
• Annual service performed on‑site: approx. £160 + filter £65 + VAT

Product Overview

• Mobile and floor‑standing versions use Storz handpieces
• Storz projectiles known for high durability
• Floor‑standing version offers:
  • Digital functionality
  • Preset programmes
• Mobile version ideal for ambulatory veterinary work or portable clinical use

Included Accessories

• D‑ACTOR handpiece applicator
• R15 15 mm ESWT transmitter
• D20‑S 20 mm transmitter
• Conductor transmission gel
• Mains lead
• Operating manual
• Revision kit including:
  • Sealing set
  • 2 × guide tubes
  • 2 × projectiles

Technical Specifications

• Mains power: 230 V, 50 Hz
• Power consumption: 150 VA
• Compressed air output: 1–5 bar
• Pulse width: approx. 6–12 ms
• Pulse frequency: 1–15 Hz
• Dimensions: 32 × 32 × 21 cm
• Warranty:
  • Main unit: 3 years
  • Handpiece: 3 million pulses or 1 year
